Acuity Brands
  • IBE-22LM-MVOLT-50K LITHONIA HIGH BAY (CI# 25108S)
  • IBE-22LM-MVOLT-50K LITHONIA HIGH BAY (CI# 25108S)
  • IBE-22LM-MVOLT-50K LITHONIA HIGH BAY (CI# 25108S)
  • IBE-22LM-MVOLT-50K LITHONIA HIGH BAY (CI# 25108S)
  • IBE-22LM-MVOLT-50K LITHONIA HIGH BAY (CI# 25108S)
  • IBE-22LM-MVOLT-50K LITHONIA HIGH BAY (CI# 25108S)

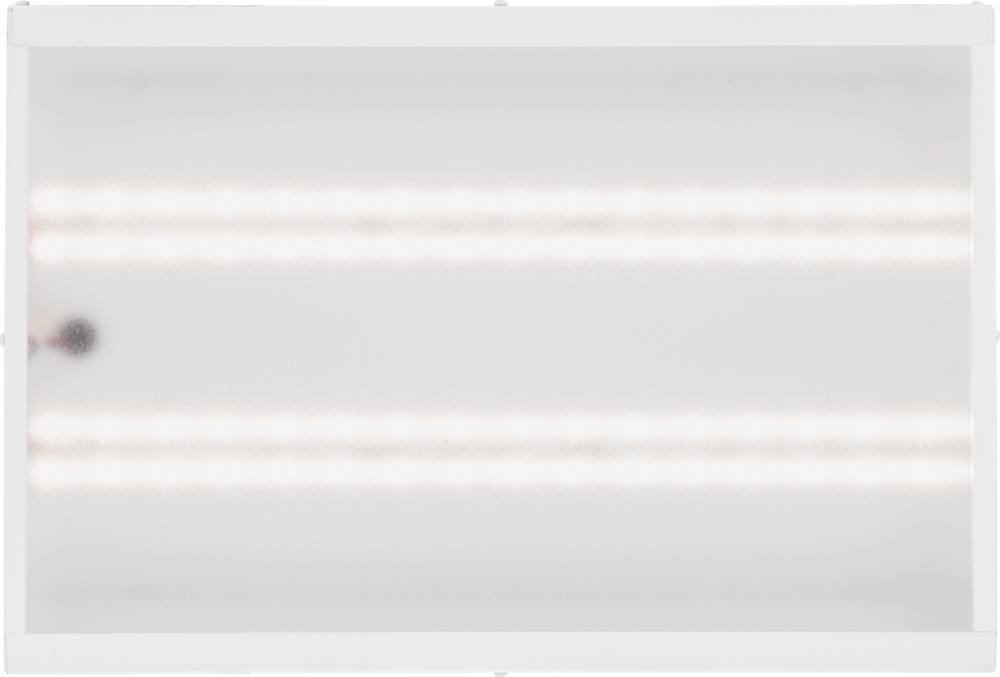

Description: Lithonia Lighting®, IBE 22LM MVOLT 50K, High Bay Fixture, Economical Linear, Series: IBE, 120 to 277 V AC, 166 W Fixture, 165/166 W Lamp, 4 Lamps, >100000 hr Average Life, White Light, 5000 K Color Temperature, 80 CRI, 0 to 10 V Dimming Driver Ballast, Acrylic Semi-Diffuser Lens, 22000 Lumens, Pendent/Surface/Suspension Mounting, Aluminum Housing Material, 44 in L x 15-1/4 in W x 4-3/8 in H Dimensions

Manufacturer PN: IBE22LMMVOLT50K

UPC:  19184849113

Kendall Electric Inc PN: 3825345

Invoice Description:

IBE-22LM-MVOLT-50K LITHONIA HIGH BAY (CI# 25108S)


SPEC SHEET

▸ See All in Indoor High Bay Fixtures


How Can We Make This Page Better?

Lithonia Lighting® IBE 22LM MVOLT 50K IBE Economical Linear High Bay Fixture, (4) Lamps Lamp, 166 W Fixture, 120 to 277 V AC

Log In for Pricing and Availability




Description

You need basic, affordable warehouse lighting and you need it to last. The I-BEAM® IBE LED luminaire gives budget conscious customers a reliable solution with quality components, all from the most recognized name in high bays, Lithonia Lighting®. Additionally, the IBE LED can save up to 60% in energy and maintenance costs over traditional sources. Pair with sensors and dimming to save even more energy and extend the life of the fixture. The I-BEAM® IBE LED is designed to meet the challenges of warehouse and light industrial applications, featuring a robust 6 kV surge protection standard. IBE LED is UL Listed to 45 deg C ambient with a thermal management system allowing for safe operation during times when temperatures rise up to 55 deg C.
Lithonia Lighting®, IBE 22LM MVOLT 50K, High Bay Fixture, Economical Linear, Series: IBE, 120 to 277 V AC, 166 W Fixture, 165/166 W Lamp, 4 Lamps, >100000 hr Average Life, White Light, 5000 K Color Temperature, 80 CRI, 0 to 10 V Dimming Driver Ballast, Acrylic Semi-Diffuser Lens, 22000 Lumens, Pendent/Surface/Suspension Mounting, Aluminum Housing Material, 44 in L x 15-1/4 in W x 4-3/8 in H Dimensions

Specifications

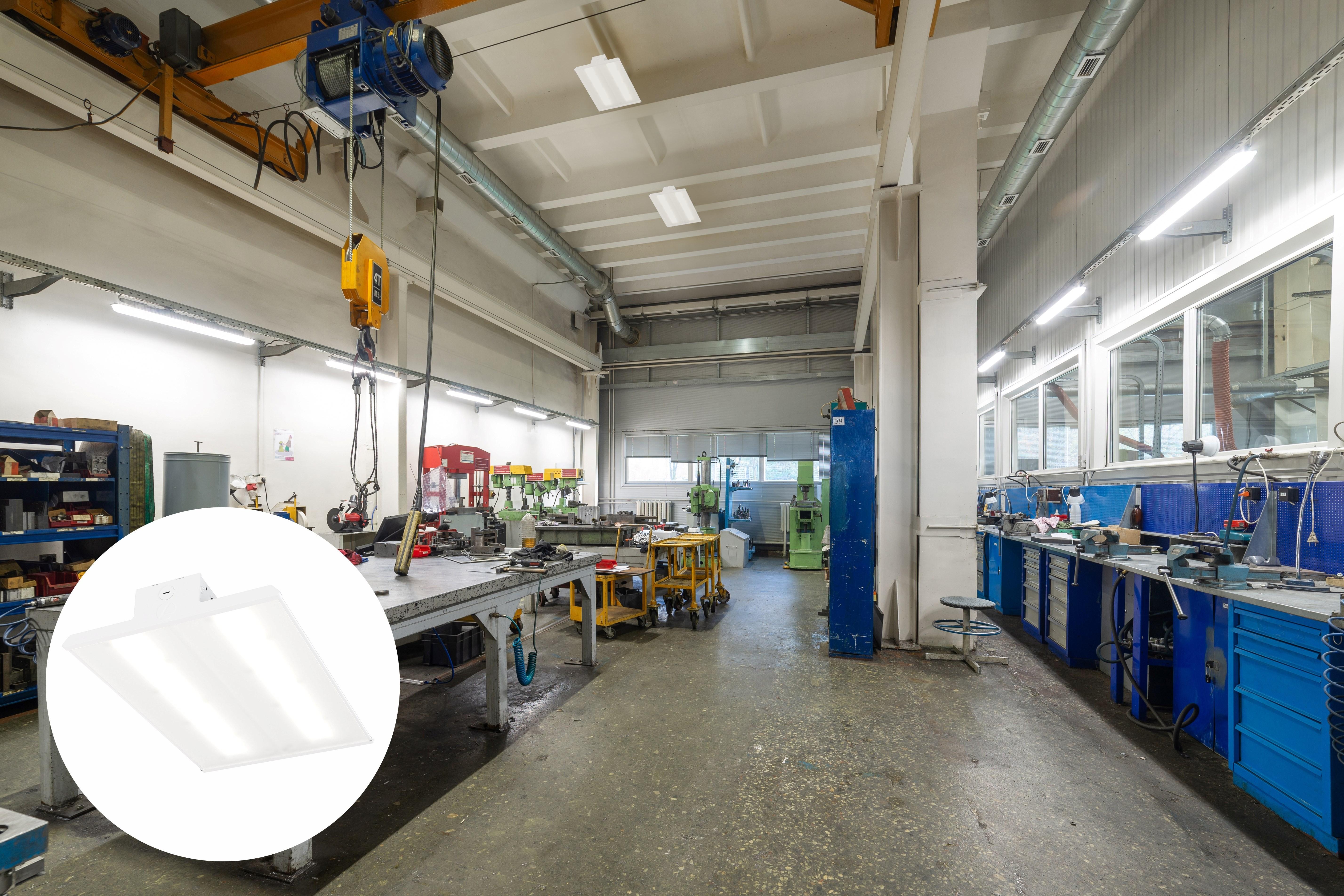

 Application For light Industrial applications such as warehousing and other large indoor spaces with mounting heights ranging from 10 ft
 Average Life >100000 hr
 Ballast Type 0 to 10 V Dimming Driver
 Brand Name Lithonia Lighting®
 Color Rendering Index CRI 80
 Color Temperature 5000 K
 Dimensions 44 in L x 15-1/4 in W x 4-3/8 in H
 Fixture Wattage 166 W
 Housing Finish White
 Housing Material Aluminum
 Lamp Wattage 165/166 W
 Light Color White
 Lumens 22000 Lumens
 Manufacturer Part Number IBE 22LM MVOLT 50K
 Mounting Type Pendent/Surface/Suspension
 Number of Lamps 4
 Series IBE
 Standards/Approvals UL/cULus/DLC Listed
 Type Economical Linear
 Video Links
 Voltage Rating 120 to 277 V AC

Features

▪ TECHNOLOGY - Easily replaces traditional 175 Wmetal halide, 4-lamp T8 HBF, 2-lamp T5HO saving up to 48 Percent energy
▪ ENERGY SAVINGS - Integrated LEDs generate a nominal 12,000 lumens while efficiently using up to 83 Wto save money on utility bills
▪ HOURS OF LIFE - 70 Percent lumen maintenance at >100,000 hr
▪ INSTALLATION - Suitable for suspension by chain, cable, surface-mounting bracket, hook monopoint or single (pendant) monopoint
▪ BATTERY - Field-installable LED emergency driver sold separately
▪ DIMMING - Thermally protected driver standard with 0-10V dimming
