Fluke

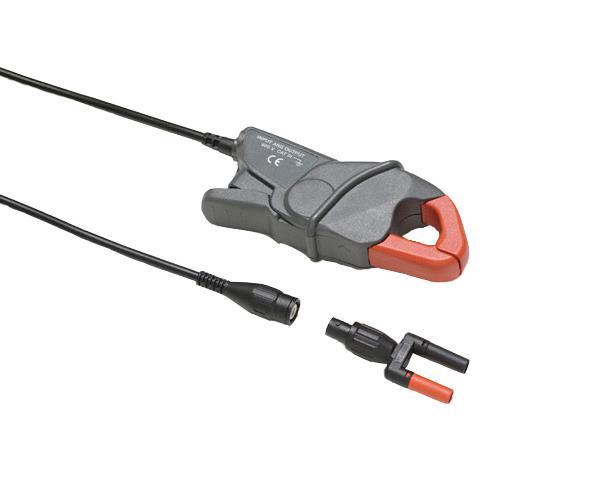

I200S FLK CURRENT CLAMP 0-20/0-200A

Mouse over image to zoom, click to enlarge

  • I200S FLK CURRENT CLAMP 0-20/0-200A
  • I200S FLK CURRENT CLAMP 0-20/0-200A

Description: Fluke® Current Clamp, AC Small Sized, 20/200 A/600 V AC Electrical Rating, 40 Hz to 10 kHz Frequency, 1.5% + 0.5 A at 48 to 65 Hz AC Current Accuracy, Safety Rating: CAT III 600 VAC, 14 to 131 deg F Operating, 5.3 in L x 2 in W x 1.2 in H Dimensions

Manufacturer PN: I200S

UPC:  09596906394

Kendall Electric Inc PN: 132172

Invoice Description:

I200S FLK CURRENT CLAMP 0-20/0-200A


SPEC SHEET

▸ See All in Clamp Meters


How Can We Make This Page Better?

Fluke® I200S AC Small Sized Current Clamp, 20/200 A/600 V AC, 40 Hz to 10 kHz

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Fluke Current clamps are the ideal tools to extend the current ranges of Fluke tools. The i200s is a dual range 20A and 200A ac current clamp with voltage output via a safety insulated BNC connector. A dual banana to BNC adapter is supplied to allow the i200s to be connected to multimeters with banana inputs.
Fluke® Current Clamp, AC Small Sized, 20/200 A/600 V AC Electrical Rating, 40 Hz to 10 kHz Frequency, 1.5% + 0.5 A at 48 to 65 Hz AC Current Accuracy, Safety Rating: CAT III 600 VAC, 14 to 131 deg F Operating, 5.3 in L x 2 in W x 1.2 in H Dimensions

Specifications

 AC Current Accuracy 1.5% + 0.5 A at 48 to 65 Hz
 Brand Name Fluke
 Dimensions 5.3 in L x 2 in W x 1.2 in H
 Electrical Ratings 20/200 A/600 V AC
 Frequency Rating 40 Hz to 10 kHz
 Includes BNC to Banana Adapter and BNC Adapter
 Manufacturer Part Number I200S
 Operating Temperature 14 to 131 deg F
 PART NUMBER KEYWORDS I200S ; 664760 ; 095969063944 ; 95969063944 ; 09596906394 ; 00095969063944
 Standards/Approvals CE Marked|EN/IEC 61010-1/61010-02-032/50081-1/50082-2|UL 61010B-1/61010B-2- 032
 Type AC Small Sized

Features

▪ 2 m output cable length
▪ 0.82 in jaw opening
▪ 2.7 in height of open jaws
▪ Companion to your scope meter, power quality meter or digital multimeter to measure up to 200 A AC
▪ Adapter for DMM's
▪ Take accurate current readings without breaking the circuit
▪ 0.1 to 24 A/0.5 to 200 A continuous current
▪ 240 A maximum non-destructive current
▪ 0.1 A lowest measurable current
▪ 100 mV/A/10 mV/A output levels
▪ 20 mm maximum conductor diameter
▪ 20 x 5 mm maximum conductor size (busbar)
