Fluke

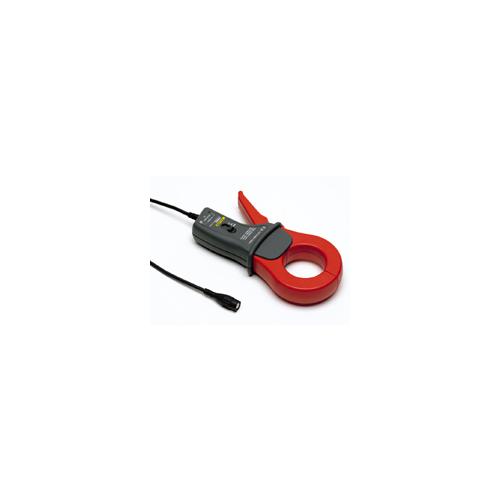

I1000S FLK CURRENT PROBE/OSCILLOSCOPE 100MA-1000A RMS

Mouse over image to zoom, click to enlarge

  • I1000S FLK CURRENT PROBE/OSCILLOSCOPE 100MA-1000A RMS
  • I1000S FLK CURRENT PROBE/OSCILLOSCOPE 100MA-1000A RMS
  • I1000S FLK CURRENT PROBE/OSCILLOSCOPE 100MA-1000A RMS

Description: Fluke® AC Current Probe, Clamp-On, For Use With: Multimeter with Optional PM9081/001 BNC/Banana Adapter and Oscilloscope, 1000 A, 2000 A (Maximum Non-Destructive), 0.1 A (Lowest Measureable Current), 300/600 V AC, Safety Rating: CAT III 600 V/CAT IV 300 V, 54 mm Diameter, 8-1/2 in Length

Manufacturer PN: I1000S

UPC:  09596909047

Kendall Electric Inc PN: 132170

Invoice Description:

I1000S FLK CURRENT PROBE/OSCILLOSCOPE 100MA-1000A RMS


SPEC SHEET

▸ See All in Test Probes


How Can We Make This Page Better?

Fluke® I1000S Clamp-On AC Current Probe, 300/600 V AC, 1000 A, 2000 A (Maximum Non-Destructive), 0.1 A (Lowest Measureable Current), CAT III 600 V/CAT IV 300 V, 8-1/2 in L

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Fluke® i1000s is a clamp on AC current probe designed to expand oscilloscope applications in industrial and power environments. Ideal for measuring distorted current waveforms and harmonics.
Fluke® AC Current Probe, Clamp-On, For Use With: Multimeter with Optional PM9081/001 BNC/Banana Adapter and Oscilloscope, 1000 A, 2000 A (Maximum Non-Destructive), 0.1 A (Lowest Measureable Current), 300/600 V AC, Safety Rating: CAT III 600 V/CAT IV 300 V, 54 mm Diameter, 8-1/2 in Length

Specifications

 Amperage Rating 1000 A/2000 A (Maximum Non-Destructive)/0.1 A (Lowest Measureable Current)
 Application For Use With Multimeters With Optional PM9081/001 BNC/Banana Adapter And Oscilloscopes
 Brand Name Fluke
 Length 8-1/2 in
 Manufacturer Part Number I1000S
 PART NUMBER KEYWORDS I1000S ; 1568487 ; 095969090476 ; 95969090476 ; 09596909047 ; 00095969090476
 Standards/Approvals RoHS Compliant|ECCN EAR99/CAT III/CAT IV
 Suitable For Use With Multimeter with Optional PM9081/001 BNC/Banana Adapter and Oscilloscope
 Type Clamp-On
 Voltage Rating 300/600 V AC

Features

▪ -10 to 50 deg C operating temperature, -40 to 71 deg C storage temperature
▪ Useable frequency - 5 Hz - 100 kHz, 100 mV/A, 10 mV/A, 1 mV/A output levels
▪ 4.37 in W x 1.77 in D
▪ 1.6 m cable length
▪ Fluke® i1000s is a clamp-on AC current probe designed to expand oscilloscope applications in industrial and power environments
▪ Ideal for measuring distorted current waveforms and harmonics
▪ Allows accurate measurement of currents from 100 mA to 1000 A rms, 5 Hz to 100 kHz without breaking into the circuit
▪ A passive filter eliminates noise and ring on rapidly rising di/dt waveform, ensuring accurate screen displays
▪ Connects directly to an oscilloscope through a reinforced coaxial cable and an insulated BNC connector
▪ Can be used with multimeters with optional PM9081/001 BNC/Banana adapter
▪ Measuring range - 10/100/1000 A at nominal current, 0.1 - 10/0.1 - 100/1 - 1000 A at continuous current
▪ 2000 A maximum non-destructive current
▪ 0.1 A lowest measureable current
▪ Basic accuracy - 1% + 1 A (48-65 Hz) (% reading + floorspec)
▪ IP40 (IEC 529) enclosure
