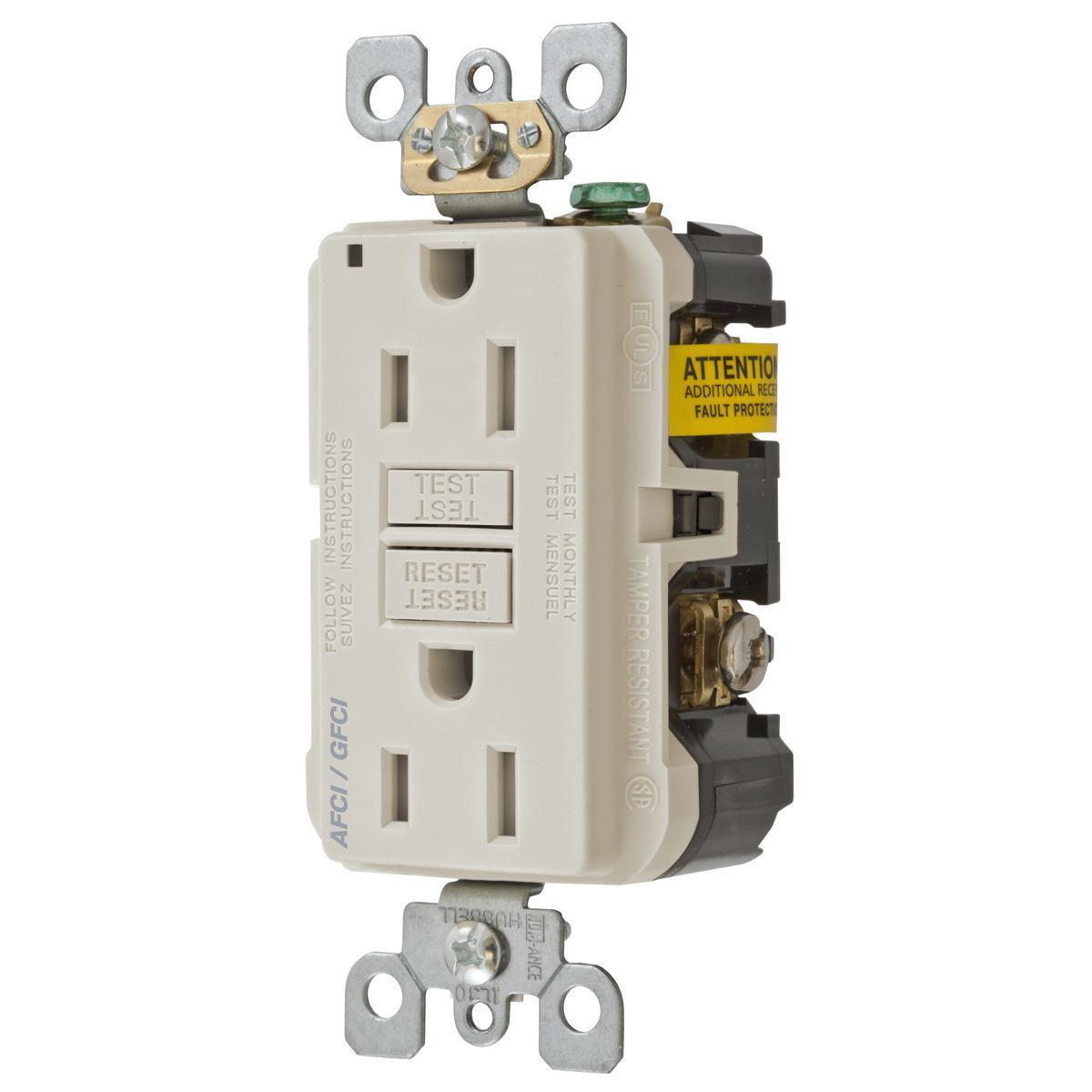

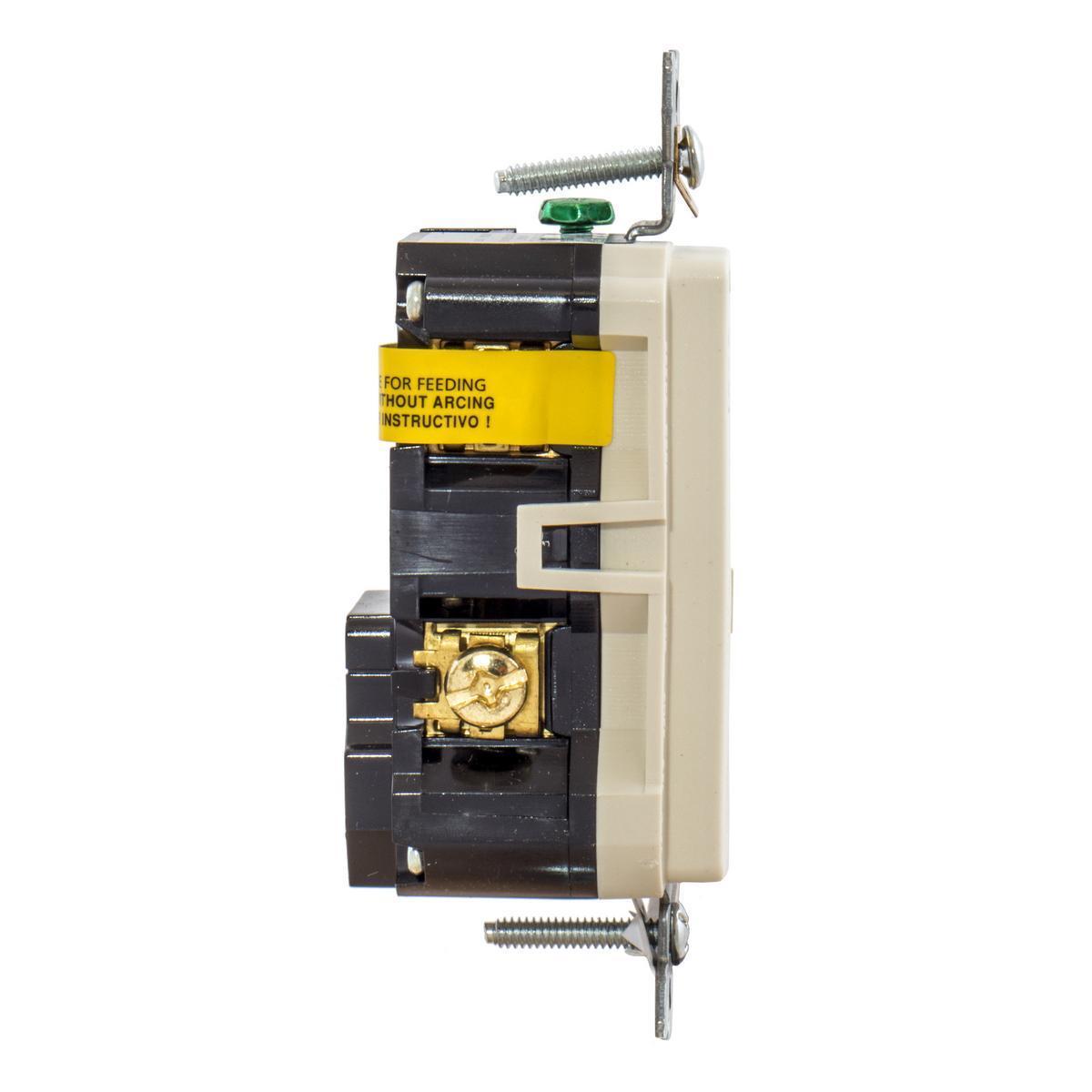

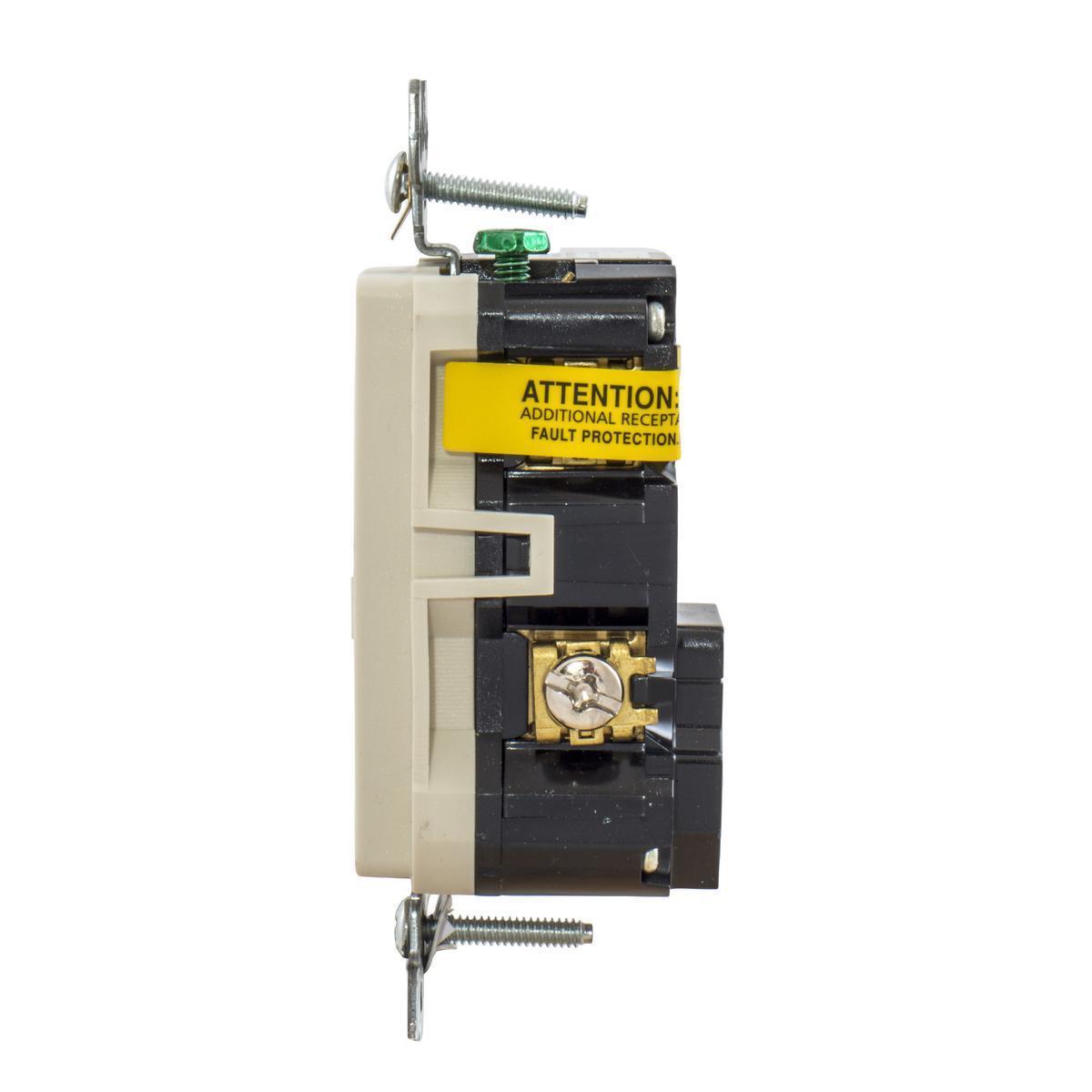

HUBBELL WIRING AFGF15TRLA 15A COMB AF/GF REC LIGHT ALMOND

Mouse over image to zoom, click to enlarge

  • HUBBELL WIRING AFGF15TRLA 15A COMB AF/GF REC LIGHT ALMOND
  • HUBBELL WIRING AFGF15TRLA 15A COMB AF/GF REC LIGHT ALMOND
  • HUBBELL WIRING AFGF15TRLA 15A COMB AF/GF REC LIGHT ALMOND
  • HUBBELL WIRING AFGF15TRLA 15A COMB AF/GF REC LIGHT ALMOND
  • HUBBELL WIRING AFGF15TRLA 15A COMB AF/GF REC LIGHT ALMOND

Description: Wiring Device-Kellems AFCI/GFCI Receptacle, Autoground Clip Tamper Resistant Standard, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, -30 to 150 deg F, Back/Side Wire Terminal, Composite, Light Almond, 4.21 in H x 1.68 in W x 1.43 in D Dimensions

Manufacturer PN: AFGF15TRLA

UPC:  88377843002

Kendall Electric Inc PN: 4368204

Invoice Description:

HUBBELL WIRING AFGF15TRLA 15A COMB AF/GF REC LIGHT ALMOND


SPEC SHEET

▸ See All in AFCI/GFCI Receptacles


How Can We Make This Page Better?

Wiring Device-Kellems AFGF15TRLA Autoground Clip Tamper Resistant Standard AFCI/GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Light Almond

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Wiring Device-Kellems AFCI/GFCI Receptacle, Autoground Clip Tamper Resistant Standard, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, -30 to 150 deg F, Back/Side Wire Terminal, Composite, Light Almond, 4.21 in H x 1.68 in W x 1.43 in D Dimensions

Specifications

 Amperage Rating 15 A
 Application Dry Locations, Indoor and Electrical Safety Applications
 Brand Name Hubbell Premise Wiring
 Color Light Almond
 Dimensions 4.21 in H x 1.68 in W x 1.43 in D
 Horsepower 2-Jan hp
 Manufacturer Part Number AFGF15TRLA
 Material Composite
 NEMA Rating NEMA 5-15R
 Number of Poles 2
 Number of Wires 3
 Standards/Approvals UL 498|CSA C22.2 No. 42 No. M-02A|UL94 V-2 Flammability Rating|NEMA WD6
 Temperature Rating -30 to 150 deg F
 Terminal Type Back/Side Wire
 Type Autoground Clip Tamper Resistant Standard
 Voltage Rating 125 VAC

Features

▪ Cost effective solution conveniently located within living space, clearly visible, easily resettable if necessary
▪ Dual functionality, interrupts power if a ground fault or arc fault is detected
▪ Safety feature prevents device from resetting if it can no longer provide protection or is reverse wired
▪ Intuitive visual indication is provided for power (LED green ON), trip condition (LED green OFF)
