Schneider Electric
  • HU366R SQD SWITCH NONFUSIBLE HD
  • HU366R SQD SWITCH NONFUSIBLE HD
  • HU366R SQD SWITCH NONFUSIBLE HD
  • HU366R SQD SWITCH NONFUSIBLE HD

Description: Square D™, HU366R, Safety Switch, Heavy Duty Iceproof Non-Fusible Rainproof Sleetproof, Series: E4 Series, 600 V AC/DC, 600 A, 50 hp, 500 hp, 1/2/3 ph, 3 Pole, 200 kA Short Circuit, 3PST Contact Form, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, -22 to 104 deg F, 27.88 in W x 10.13 in D x 50.31 in H Dimensions, Steel, Gray, Hot Dipped Galvanized/Painted

Manufacturer PN: HU366R

UPC:  78590145216

Kendall Electric Inc PN: 3999827

Invoice Description:

HU366R SQD SWITCH NONFUSIBLE HD


SPEC SHEET

▸ See All in Heavy Duty Safety Switches


How Can We Make This Page Better?

Square D™ HU366R E4 Series Heavy Duty Iceproof Non-Fusible Rainproof Sleetproof Safety Switch, 600 V AC/DC, 600 A, 50 hp, 500 hp, 3PST Contact, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of galvannealed steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.
Square D™, HU366R, Safety Switch, Heavy Duty Iceproof Non-Fusible Rainproof Sleetproof, Series: E4 Series, 600 V AC/DC, 600 A, 50 hp, 500 hp, 1/2/3 ph, 3 Pole, 200 kA Short Circuit, 3PST Contact Form, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, -22 to 104 deg F, 27.88 in W x 10.13 in D x 50.31 in H Dimensions, Steel, Gray, Hot Dipped Galvanized/Painted

Specifications

 Actuator Type Handle
 Amperage Rating 600 A
 Application Commercial, Industrial and Indoor/Outdoor Applications
 Brand Name Square D
 Color Gray
 Contact Form 3PST

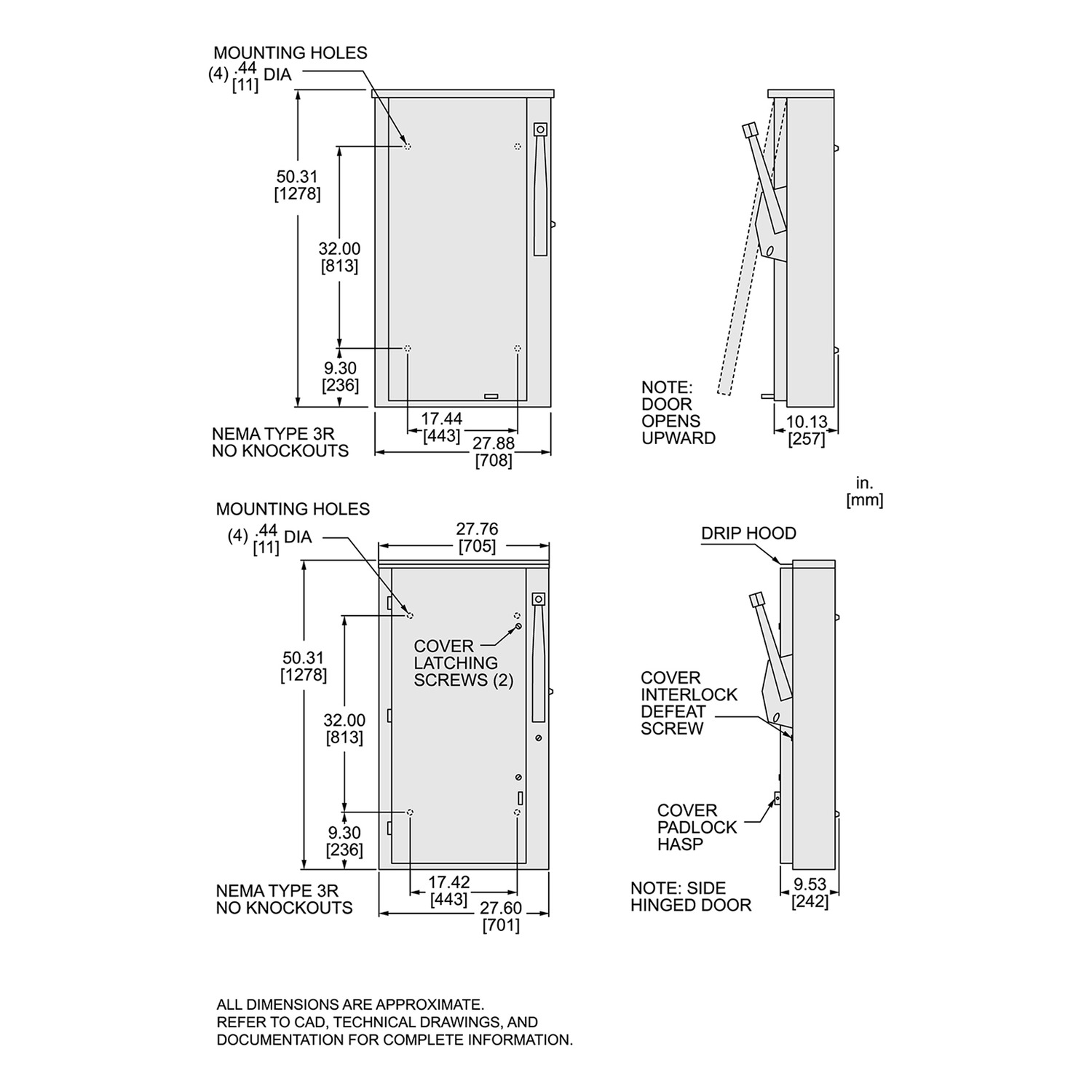

 Dimensions 27.88 in W x 10.13 in D x 50.31 in H
 Enclosure NEMA 3R
 Finish Hot Dipped Galvanized/Painted
 Horsepower 50 hp, 500 hp
 Manufacturer Part Number HU366R
 Material Steel
 Mounting Type Surface
 Number of Poles 3
 PART NUMBER KEYWORDS HU366R ; 8051797 ; 785901452164 ; 78590145216 ; 00785901452164 ; 0785901452164
 Phase 1/2/3
 Series E4 Series
 Short Circuit Current Rating 200 kA
 Standards/Approvals RoHS Compliant|Federal Specification WS-865C|UL 98 File No. E2875/E154828|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Temperature Rating -22 to 104 deg F
 Terminal Type Lug
 Type Heavy Duty Iceproof Non-Fusible Rainproof Sleetproof
 Voltage Rating 600 V AC/DC

Features

▪ Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
▪ Quick make, quick break operating mechanism
▪ Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
▪ Red and black handle indicates the ON (red) or OFF (black) condition of the switch
