Eaton

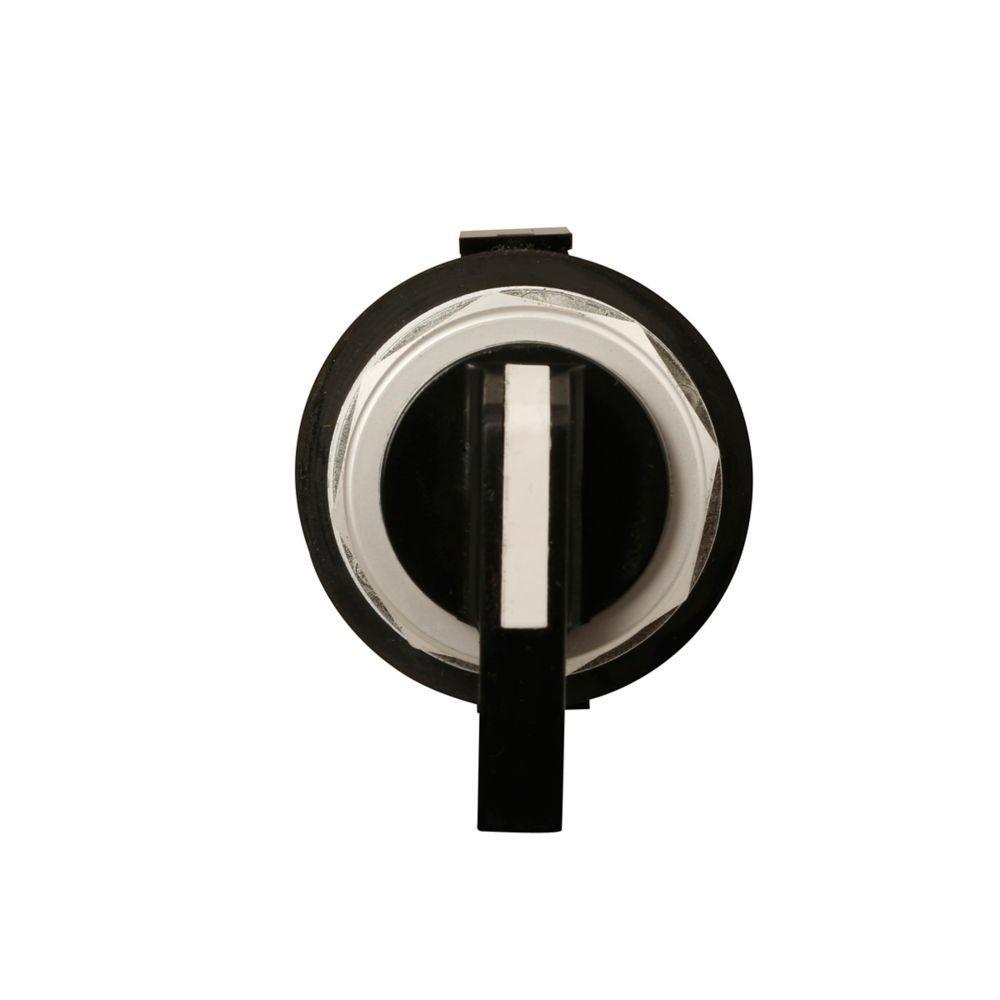

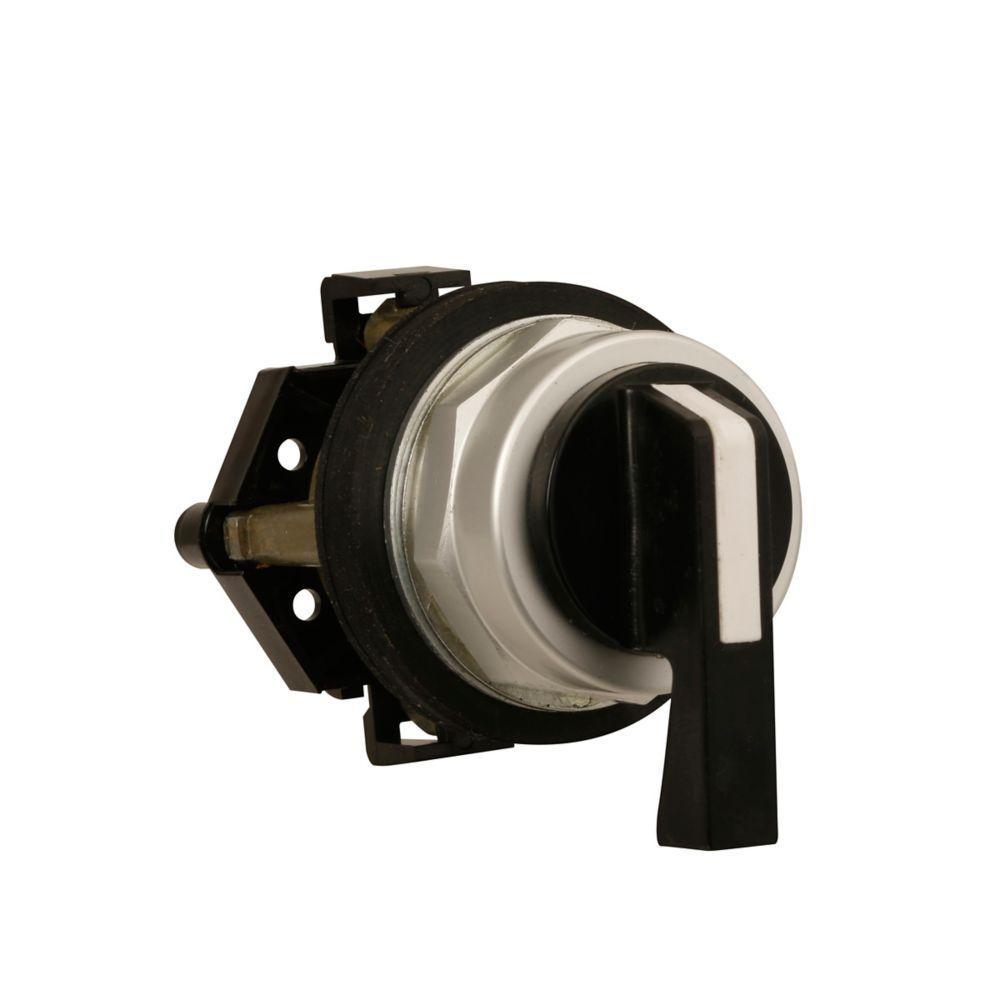

HT8JYH1DAA5 CH 3-POSITION SEL SW, BLACK LEVER, SPRING RETURN BOTH, WITH 2NO

Mouse over image to zoom, click to enlarge

  • HT8JYH1DAA5 CH 3-POSITION SEL SW, BLACK LEVER, SPRING RETURN BOTH, WITH 2NO
  • HT8JYH1DAA5 CH 3-POSITION SEL SW, BLACK LEVER, SPRING RETURN BOTH, WITH 2NO
  • HT8JYH1DAA5 CH 3-POSITION SEL SW, BLACK LEVER, SPRING RETURN BOTH, WITH 2NO

Description: EATON Non-Illuminated Selector Switch Unit, Oiltight/Watertight Standard Pushbutton, Series: HT800, 30.5 mm Size, 1NO Contact Configuration, Momentary/Maintained/Momentary/Spring Return Contact Mode, 3 Positions, Bezel/Housing: Chrome, Lever Actuator, NEMA 3/4/12/13/3R/4X Enclosure, Surface Mounting, Black

Manufacturer PN: HT8JYH1DAA5

UPC:  78211356500

Kendall Electric Inc PN: 2813957

Invoice Description:

HT8JYH1DAA5 CH 3-POSITION SEL SW, BLACK LEVER, SPRING RETURN BOTH, WITH 2NO


SPEC SHEET

▸ See All in Non-Illuminated Selector Switches


How Can We Make This Page Better?

EATON HT8JYH1DAA5 Oiltight/Watertight Standard Pushbutton Non-Illuminated Selector Switch Unit, 30.5 mm, 1NO Contact, Black

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's HT800 series features a wide variety of devices, including momentary, illuminated and mushroom head pushbuttons, selector switches, indicating lights and push-pull switches. They are corrosion resistant and water- and oil-tight devices that are suitable for industrial applications, including replacement of other manufacturer's 30.5 mm pushbutton devices.
EATON Non-Illuminated Selector Switch Unit, Oiltight/Watertight Standard Pushbutton, Series: HT800, 30.5 mm Size, 1NO Contact Configuration, Momentary/Maintained/Momentary/Spring Return Contact Mode, 3 Positions, Bezel/Housing: Chrome, Lever Actuator, NEMA 3/4/12/13/3R/4X Enclosure, Surface Mounting, Black

Specifications

 Actuator Lever
 Application Automation, Electrical Assemblies, Panels, EOEMs and Logic Control Equipment Applications
 Bezel Housing Chrome
 Brand Name EATON
 Color Black
 Contact Configuration 1NO
 Enclosure NEMA 3/4/12/13/3R/4X
 Manufacturer Part Number HT8JYH1DAA5
 Mounting Type Surface
 Number of Positions 3
 PART NUMBER KEYWORDS HT8JYH1DAA5 ; 7351604 ; 782113565002 ; 78211356500 ; 00782113565002
 Series HT800
 Size 30.5 mm
 Standards/Approvals UL Listed,CSA Certified
 Type Oiltight/Watertight Standard Pushbutton
 Video Links

Features

▪ Bright and long lasting LED indicating lights in six colors
▪ Field convertible maintained selector switches from 2 to 3-position and vice versa
▪ Anodized aluminum mounting rings
▪ Watertight double V-gasket seals
▪ Extended height bulbs
▪ Transparent housing contact blocks
▪ Color coded contact blocks
▪ Gold plated contacts (on low voltage contact block)
▪ Reliability ridge on movable contact
▪ Stackable screw-mounted contact blocks
▪ Standard NC contact opens before NO contact closes (break-before-make operation)
