Eaton

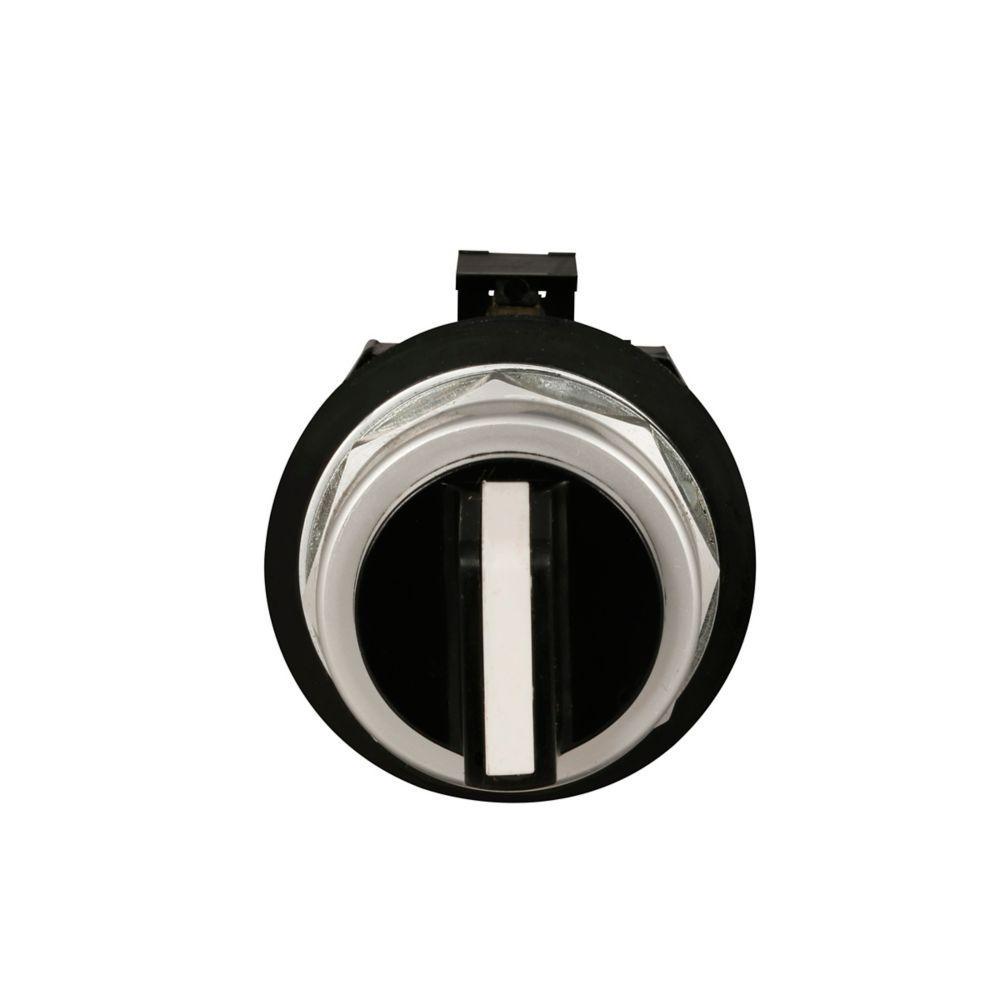

HT8JBH1DAA5 CH 3-POS SEL SW, BLACK KNOB MAINTAINED, W/ 2NO

Mouse over image to zoom, click to enlarge

  • HT8JBH1DAA5 CH 3-POS SEL SW, BLACK KNOB MAINTAINED, W/ 2NO
  • HT8JBH1DAA5 CH 3-POS SEL SW, BLACK KNOB MAINTAINED, W/ 2NO

Description: EATON Non-Illuminated Selector Switch Unit, Oiltight/Watertight Standard Pushbutton, Series: HT800, 30.5 mm Size, 1NO Contact Configuration, Maintained/Maintained/Maintained Contact Mode, 3 Positions, Bezel/Housing: Chrome, Knob Actuator, NEMA 3/4/12/13/3R/4X Enclosure, Surface Mounting, Black

Manufacturer PN: HT8JBH1DAA5

UPC:  78211372859

Kendall Electric Inc PN: 2437296

Invoice Description:

HT8JBH1DAA5 CH 3-POS SEL SW, BLACK KNOB MAINTAINED, W/ 2NO


SPEC SHEET

▸ See All in Non-Illuminated Selector Switches


How Can We Make This Page Better?

EATON HT8JBH1DAA5 Oiltight/Watertight Standard Pushbutton Non-Illuminated Selector Switch Unit, 30.5 mm, 1NO Contact, Black

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's HT800 series features a wide variety of devices, including momentary, illuminated and mushroom head pushbuttons, selector switches, indicating lights and push-pull switches. They are corrosion resistant and water- and oil-tight devices that are suitable for industrial applications, including replacement of other manufacturer's 30.5 mm pushbutton devices.
EATON Non-Illuminated Selector Switch Unit, Oiltight/Watertight Standard Pushbutton, Series: HT800, 30.5 mm Size, 1NO Contact Configuration, Maintained/Maintained/Maintained Contact Mode, 3 Positions, Bezel/Housing: Chrome, Knob Actuator, NEMA 3/4/12/13/3R/4X Enclosure, Surface Mounting, Black

Specifications

 Actuator Knob
 Application Automation and Logic Control Equipment, Electrical Assemblies, Panels and EOEMs Applications
 Bezel Housing Chrome
 Brand Name EATON
 Color Black
 Contact Configuration 1NO
 Enclosure NEMA 3/4/12/13/3R/4X
 Manufacturer Part Number HT8JBH1DAA5
 Mounting Type Surface
 Number of Positions 3
 Series HT800
 Size 30.5 mm
 Standards/Approvals UL Listed,CSA Certified
 Type Oiltight/Watertight Standard Pushbutton

Features

▪ Bright and long lasting LED indicating lights in six colors
▪ Field convertible maintained selector switches from 2 to 3-position and vice versa
▪ Anodized aluminum mounting rings
▪ Watertight double V-gasket seals
▪ Extended height bulbs
▪ Transparent housing contact blocks
▪ Color coded contact blocks
▪ Gold plated contacts (on low voltage contact block)
▪ Reliability ridge on movable contact
▪ Stackable screw-mounted contact blocks
▪ Standard NC contact opens before NO contact closes (break-before-make operation)
