Eaton
HT8DBRB CH 2-POS PUSH-PULL, RED, WITH 1NC CONTACT BLOCK

Mouse over image to zoom, click to enlarge

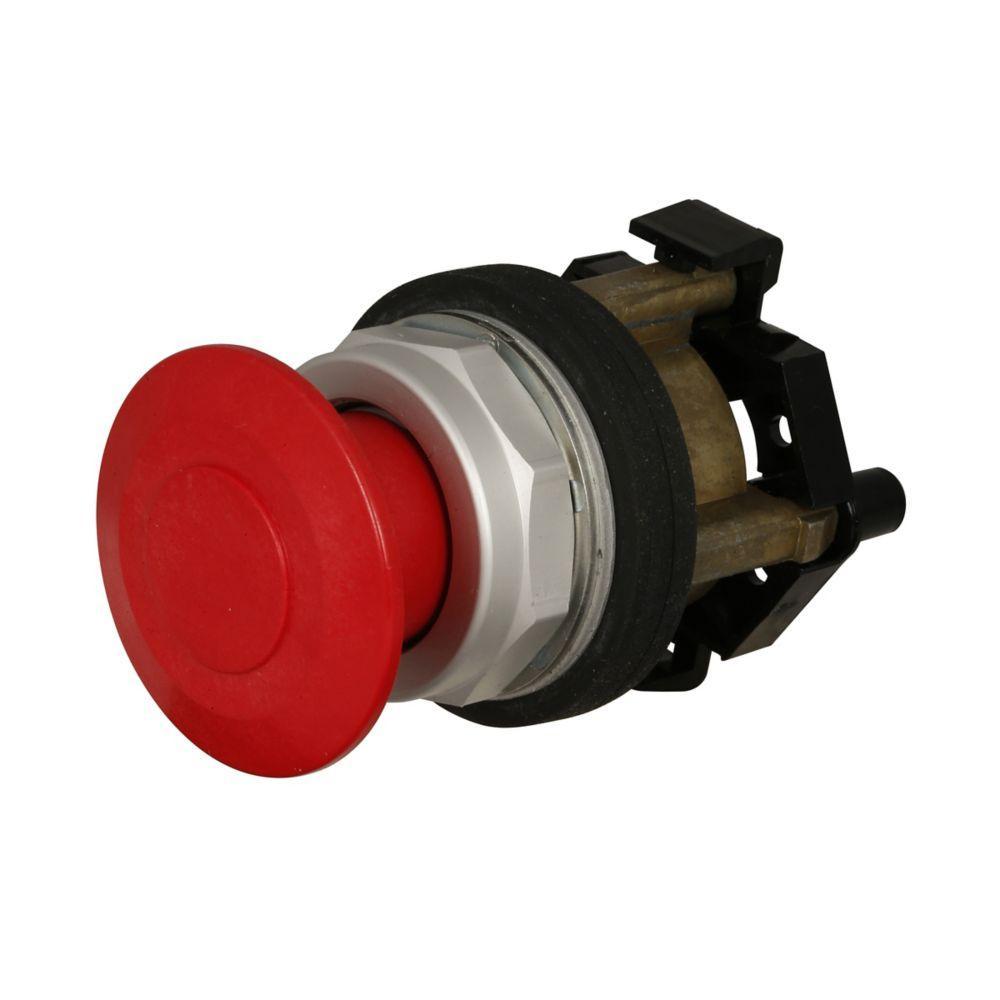

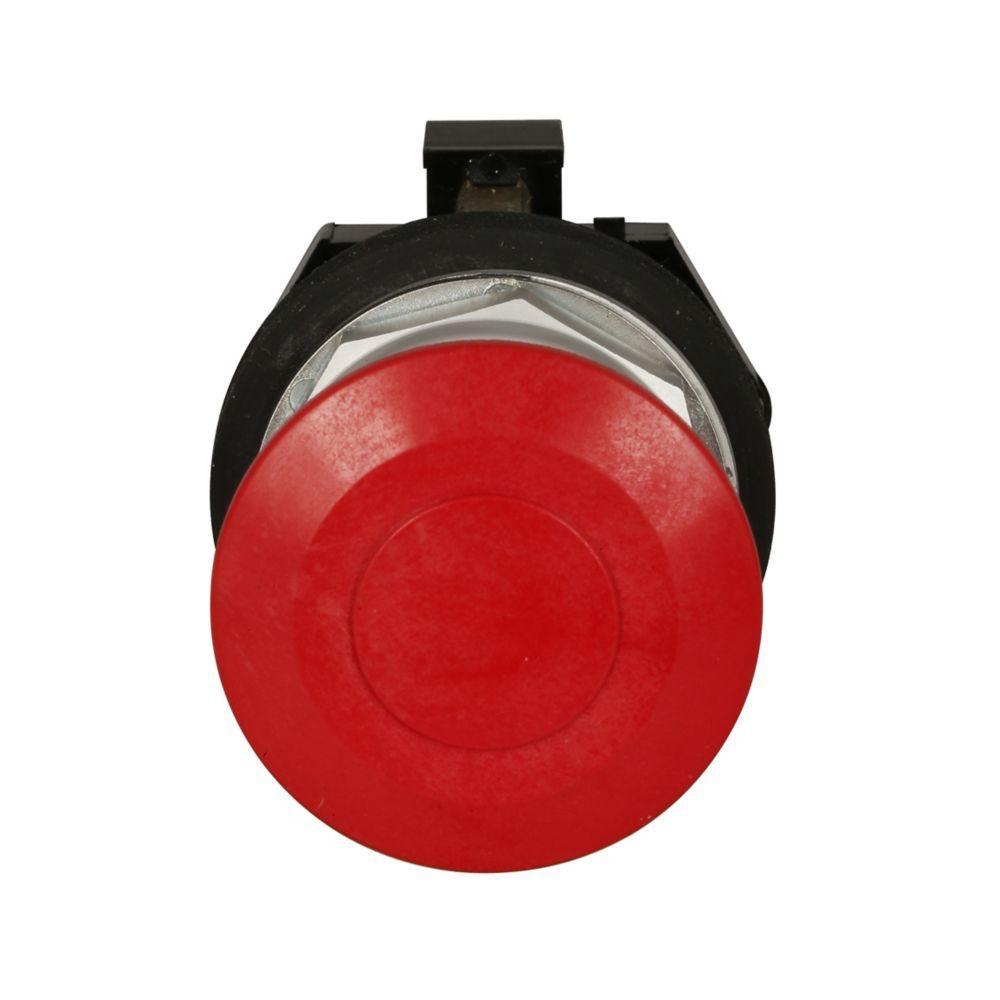

  • HT8DBRB CH 2-POS PUSH-PULL, RED, WITH 1NC CONTACT BLOCK
  • HT8DBRB CH 2-POS PUSH-PULL, RED, WITH 1NC CONTACT BLOCK
  • HT8DBRB CH 2-POS PUSH-PULL, RED, WITH 1NC CONTACT BLOCK

Description: EATON Non-Illuminated Push/Pull Switch, Oiltight/Watertight, Series: HT800, 40 mm Size, 1NC Contact Configuration, Maintained Contact Mode, 10 A at 600 VAC Contact, Push/Pull Operator, 2 Positions, Bezel/Housing: Chrome, Flat Mushroom Head Actuator, Pressure Plate Terminal, NEMA 1/2/3/3R/4/4X/12 Enclosure, Metal

Manufacturer PN: HT8DBRB

UPC:  78211633438

Kendall Electric Inc PN: 2813959

Invoice Description:

HT8DBRB CH 2-POS PUSH-PULL, RED, WITH 1NC CONTACT BLOCK


SPEC SHEET

▸ See All in Non-Illuminated Push-Pull Switches


How Can We Make This Page Better?

EATON HT8DBRB HT800 Oiltight/Watertight Non-Illuminated Push/Pull Switch, 40 mm, 1NC Contact, Push/Pull Operator

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's HT800 series features a wide variety of devices, including momentary, illuminated and mushroom head pushbuttons, selector switches, indicating lights and push-pull switches. They are corrosion resistant and water- and oil-tight devices that are suitable for industrial applications, including replacement of other manufacturer's 30.5 mm pushbutton devices.
EATON Non-Illuminated Push/Pull Switch, Oiltight/Watertight, Series: HT800, 40 mm Size, 1NC Contact Configuration, Maintained Contact Mode, 10 A at 600 VAC Contact, Push/Pull Operator, 2 Positions, Bezel/Housing: Chrome, Flat Mushroom Head Actuator, Pressure Plate Terminal, NEMA 1/2/3/3R/4/4X/12 Enclosure, Metal

Specifications

 Actuator Flat Mushroom Head
 Bezel Housing Chrome
 Brand Name EATON
 Contact Configuration 1NC
 Contact Rating 10 A at 600 VAC
 Enclosure NEMA 1/2/3/3R/4/4X/12
 Manufacturer Part Number HT8DBRB
 Material Metal
 Number of Positions 2
 Series HT800
 Size 40 mm
 Standards/Approvals CSA Certified|UL Listed
 Terminal Type Pressure Plate
 Type Oiltight/Watertight
 Video Links

Features

▪ Plastic bus material
