Eaton

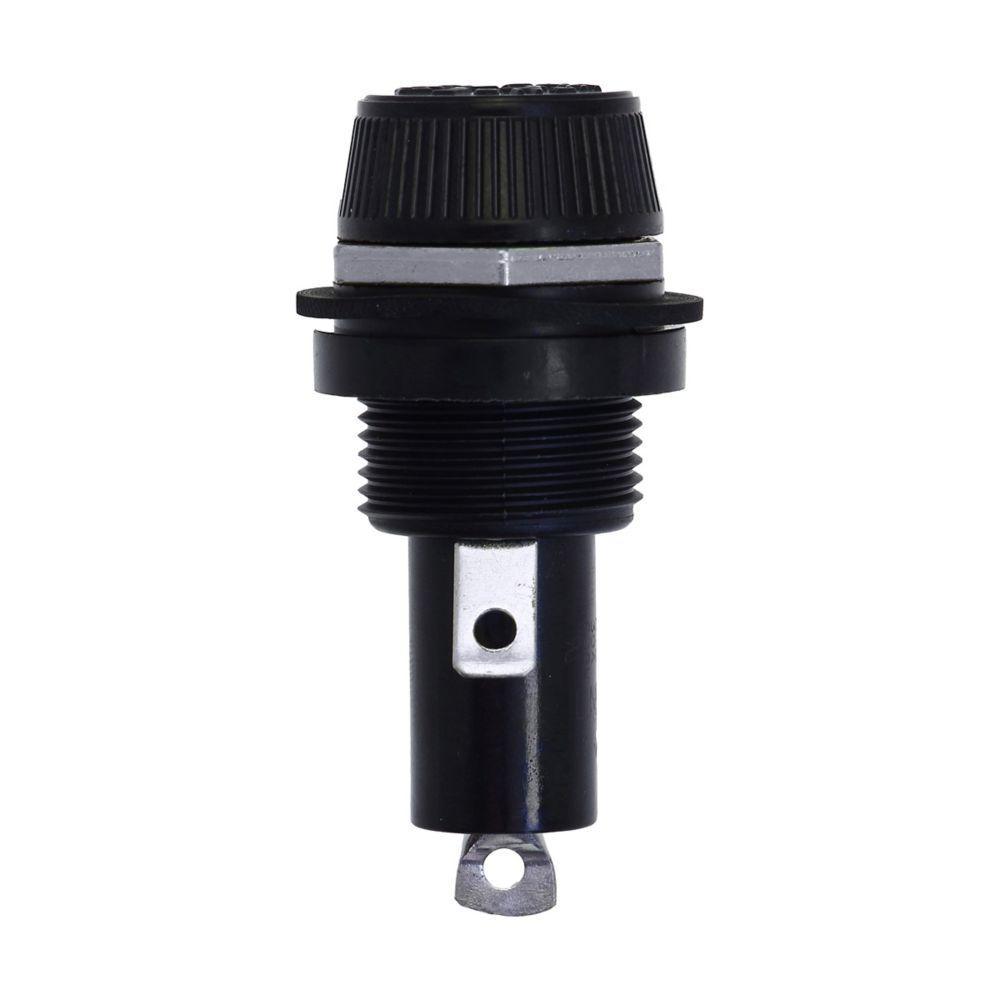

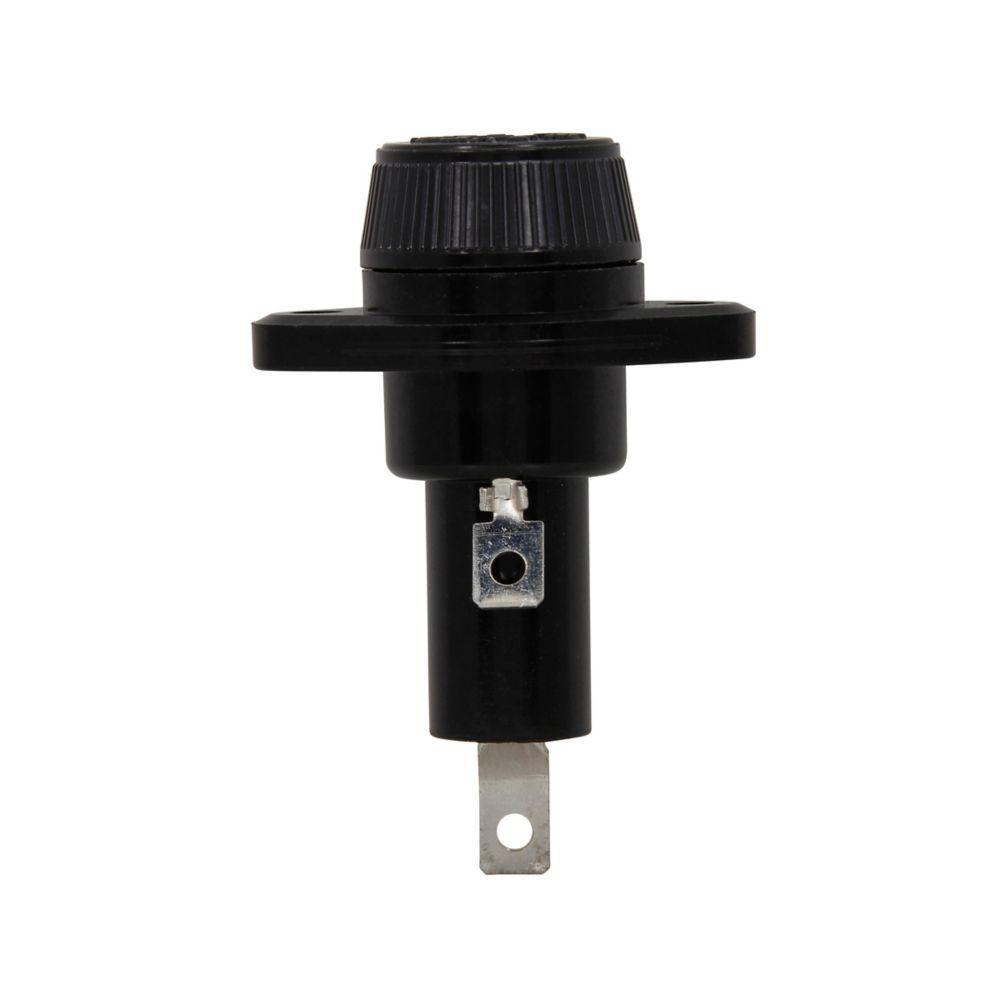

HPF BUS FUSEHOLDER (10)

Mouse over image to zoom, click to enlarge

  • HPF BUS FUSEHOLDER (10)
  • HPF BUS FUSEHOLDER (10)
  • HPF BUS FUSEHOLDER (10)

Description: Bussmann Fuse Holder, Standard, 600 V, 30 A, 1/2 in Quick Connect Terminal, Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, For Use With: 13/32 x 1-1/2 in Fuse, Black, 1.78 in Dia x 2.69 in L

Manufacturer PN: HPF

UPC:  05171274044

Kendall Electric Inc PN: 22158

Invoice Description:

HPF BUS FUSEHOLDER (10)


SPEC SHEET

▸ See All in In-Line Fuse Holders & Insulators


How Can We Make This Page Better?

Bussmann HPF Standard Fuse Holder With Clear Screw Type Knob, 600 V, 30 A

Log In for Pricing and Availability




Description

Bussmann Fuse Holder, Standard, 600 V, 30 A, 1/2 in Quick Connect Terminal, Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, For Use With: 13/32 x 1-1/2 in Fuse, Black, 1.78 in Dia x 2.69 in L

Specifications

 Amperage Rating 30 A
 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name Bussmann
 Color Black
 Connection Type 1/2 in Quick Connect Terminal
 Dimensions 1.78 in Dia x 2.69 in L
 Fuse Diameter 13/32 in
 Fuse Length 1-1/2 in
 Manufacturer Part Number HPF
 Mounting Type Panel
 Standards/Approvals CE Certified|CSA File No.47235|RoHS Compliant|UL File No.E14853 Guide IZLT2|UL 94HB Flammability Rating
 Suitable For Use With 13/32 x 1-1/2 in Fuse
 Type Standard
 Video Links
 Voltage Rating 600 V

Features

▪ 1-piece side terminal and threaded insert eliminates 2-piece solder fabrication
▪ Combination 1/2 in quick connect/solder terminals for versatility
▪ The HPF series functionally replaces the Bussman HPC series
▪ Do not put tension on line (rear) terminal of fuse holder
▪ Screw type knob
