Eaton

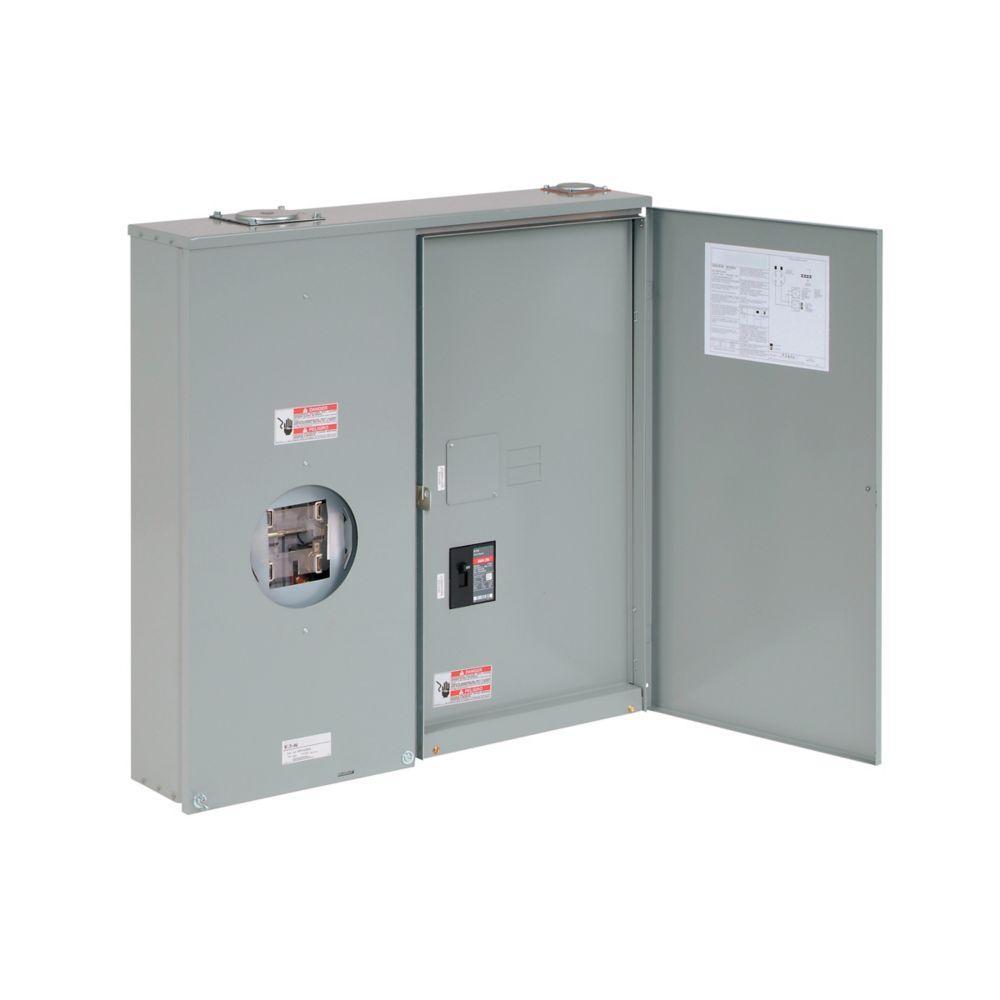

HPC40SHL C-H 400A House Panel, Compact, Lever Bypass, 200A MCB W/ ZZZZ

Mouse over image to zoom, click to enlarge

  • HPC40SHL C-H 400A House Panel, Compact, Lever Bypass, 200A MCB W/ ZZZZ
  • HPC40SHL C-H 400A House Panel, Compact, Lever Bypass, 200A MCB W/ ZZZZ
  • HPC40SHL C-H 400A House Panel, Compact, Lever Bypass, 200A MCB W/ ZZZZ

Description: EATON House Panel, 1-Phase 1-Socket Compact Lever Bypass Ringless, For Use With: CSR2200/CSR2150 Main Circuit Breaker and Type BR/BRH/BWH Secondary Main Circuit Breaker, Specifications: 400 A at 120/240 V AC, 22 kA Interrupt Rating, 2 AWG to 300 kcmil Wire, NEMA 3R Enclosure , Surface Mount, 7-3/4 in L x 33 in W x 46 in H Dimensions

Manufacturer PN: HPC40SHL

UPC:  78211688383

Kendall Electric Inc PN: 2290842

Invoice Description:

HPC40SHL C-H 400A House Panel, Compact, Lever Bypass, 200A MCB W/ ZZZZ


SPEC SHEET

▸ See All in Metering Miscellaneous Accessories


How Can We Make This Page Better?

EATON HPC40SHL 1-Phase 1-Socket Compact Lever Bypass Ringless House Panel, For Use With CSR2200/CSR2150 Main Circuit Breaker and Type BR/BRH/BWH Secondary Main Circuit Breaker

Log In for Pricing and Availability




Description

Eaton's House Panel service entrance devices consist of a meter socket and a distribution section. They offer fast, easy and safe installation. Available in CH and BR styles. In addition to residential installations, a house panel can also be used for an apartment, condominium, clubhouse or common area.
EATON House Panel, 1-Phase 1-Socket Compact Lever Bypass Ringless, For Use With: CSR2200/CSR2150 Main Circuit Breaker and Type BR/BRH/BWH Secondary Main Circuit Breaker, Specifications: 400 A at 120/240 V AC, 22 kA Interrupt Rating, 2 AWG to 300 kcmil Wire, NEMA 3R Enclosure , Surface Mount, 7-3/4 in L x 33 in W x 46 in H Dimensions

Specifications

 Application Power Distribution, Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Dimensions 7-3/4 in L x 33 in W x 46 in H
 Manufacturer Part Number HPC40SHL
 PART NUMBER KEYWORDS HPC40SHL ; 9243518 ; 782116883837 ; 78211688383 ; 00782116883837
 Specifications 400 A at 120/240 V AC, 22 kA Interrupt Rating, 2 AWG to 300 kcmil Wire, NEMA 3R Enclosure , Surface Mount
 Standards/Approvals UL Listed
 Suitable For Use With CSR2200/CSR2150 Main Circuit Breaker and Type BR/BRH/BWH Secondary Main Circuit Breaker
 Type 1-Phase 1-Socket Compact Lever Bypass Ringless

Features

▪ In response to contractor feedback, these panels have been redesigned with a focus on flexibility, simplified wiring and an overall ease of installation
▪ All units come standard with a 22 kAIC main breaker
▪ The load conductors can exit the top, bottom, side or back for greater application and installation flexibility

Resources

 Catalog Page
 Product Data Sheet
