THOMAS & BETTS XD4-TB 1 1/4 INCH EXP/DEFL COUPLING

Mouse over image to zoom, click to enlarge

  • THOMAS & BETTS XD4-TB 1 1/4 INCH EXP/DEFL COUPLING
  • THOMAS & BETTS XD4-TB 1 1/4 INCH EXP/DEFL COUPLING

Description: Mersen, HP15M25R, Fuse, Type gPV, Series: HP15M, 25 A, 1.5 kV DC, 50 kA Interrupt, Class: Photovoltaic Midget, 50 kA Short Circuit, Ferrule Terminal, GMG, 85 mm L x 10 mm Dia Body

Manufacturer PN: XD4-TB

UPC:  78620989414

Kendall Electric Inc PN: 4809909

Invoice Description:

HP15M25R MERSEN PV FUSE GPV 1500VDC IEC 1500VDC UL 10X85 25A FERRULE CLIP


SPEC SHEET

▸ See All in Conduit Expansion-Deflection Couplings


How Can We Make This Page Better?

Mersen HP15M25R HP15M Type gPV Fuse, 25 A, 1.5 kV DC, 50 kA Interrupt, Class: Photovoltaic Midget

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

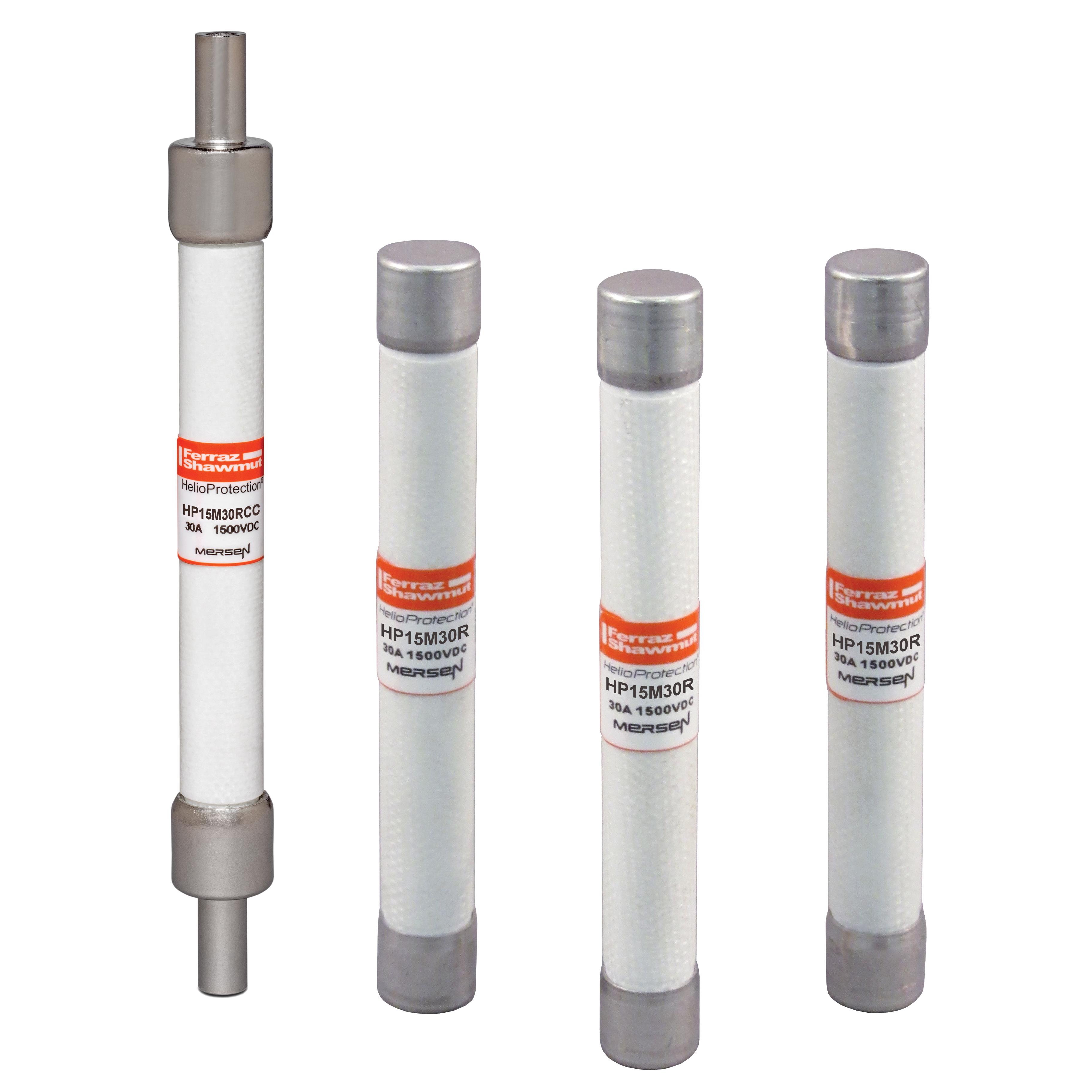

Mersen’s GEN2 of the HP15M photovoltaic (PV) fuse series is designed specifically to meet the severe temperature and current cycling of a PV system. Subjected to stringent cycle testing, the GEN2 provides enhanced reliability. These 1500VDC rated fuses are designed for low minimum breaking capacity capabilities of 1.35 times the fuse rated current value, which allows for safe circuit interruption under typical low fault current conditions. In addition to the standard ferrule terminal, parts are also available with Crimp Cap terminals for in-line fuse applications. The unique wire crimp terminal (CC option) permits solderless wire-to-fuse connection for overmold encapsulation of fuse and wiring. Protect your off-grid or grid tied PV system from unexpected line faults using Mersen’s HelioProtection® fuse line.
Mersen, HP15M25R, Fuse, Type gPV, Series: HP15M, 25 A, 1.5 kV DC, 50 kA Interrupt, Class: Photovoltaic Midget, 50 kA Short Circuit, Ferrule Terminal, GMG, 85 mm L x 10 mm Dia Body

Specifications

 Amperage Rating 25 A
 Application For all photovoltaic applications, PV string/array level protection, Combiner box applications, In-line PV module protection, Inverters Battery charge controllers
 Body Size 85 mm L x 10 mm Dia
 Brand Name Mersen
 Class Photovoltaic Midget
 Manufacturer Part Number HP15M25R
 Material GMG
 PART NUMBER KEYWORDS HP15M25R ; 782001502126 ; 78200150212
 Series HP15M
 Short Circuit Current Rating 50 kA
 Standards/Approvals UL Listed to Standard UL 248-19|CSA Component Certified C22.2|IEC 60269-6|RoHS Compliant
 Terminal Type Ferrule
 Type Type gPV
 Voltage Rating 1.5 kV DC

Features

▪ Subjected to stringent cycle testing, the GEN2 provides enhanced reliability
▪ The unique wire crimp terminal (CC option) permits solderless wire-to-fuse connection for overmold encapsulation of fuse and wiring
▪ Protect your off-grid or grid tied PV system from unexpected line faults using Mersen's HelioProtection fuse line
▪ Low fault current interrupting capability
▪ Durable construction for enhanced system longevity
▪ Temperature and load cycling capability
