Schneider Electric
  • HOMRBGK2C SQD HOM GEN INTLK KIT
  • HOMRBGK2C SQD HOM GEN INTLK KIT
  • HOMRBGK2C SQD HOM GEN INTLK KIT
  • HOMRBGK2C SQD HOM GEN INTLK KIT
  • HOMRBGK2C SQD HOM GEN INTLK KIT
  • HOMRBGK2C SQD HOM GEN INTLK KIT

Description: Square D™ Homeline™ Panel Interlock Kit, For Use With: Loadcenter Generator, Specifications: 15 to 125 A, 150 to 225 A Current

Manufacturer PN: HOMRBGK2C

UPC:  78590123316

Kendall Electric Inc PN: 3999790

Invoice Description:

HOMRBGK2C SQD HOM GEN INTLK KIT


SPEC SHEET

▸ See All in Load Center Sub-Feed Lug Blocks


How Can We Make This Page Better?

Square D™ Homeline™ HOMRBGK2C Panel Interlock Kit, For Use With Loadcenter Generator, 15 to 125 A, 150 to 225 A Current

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

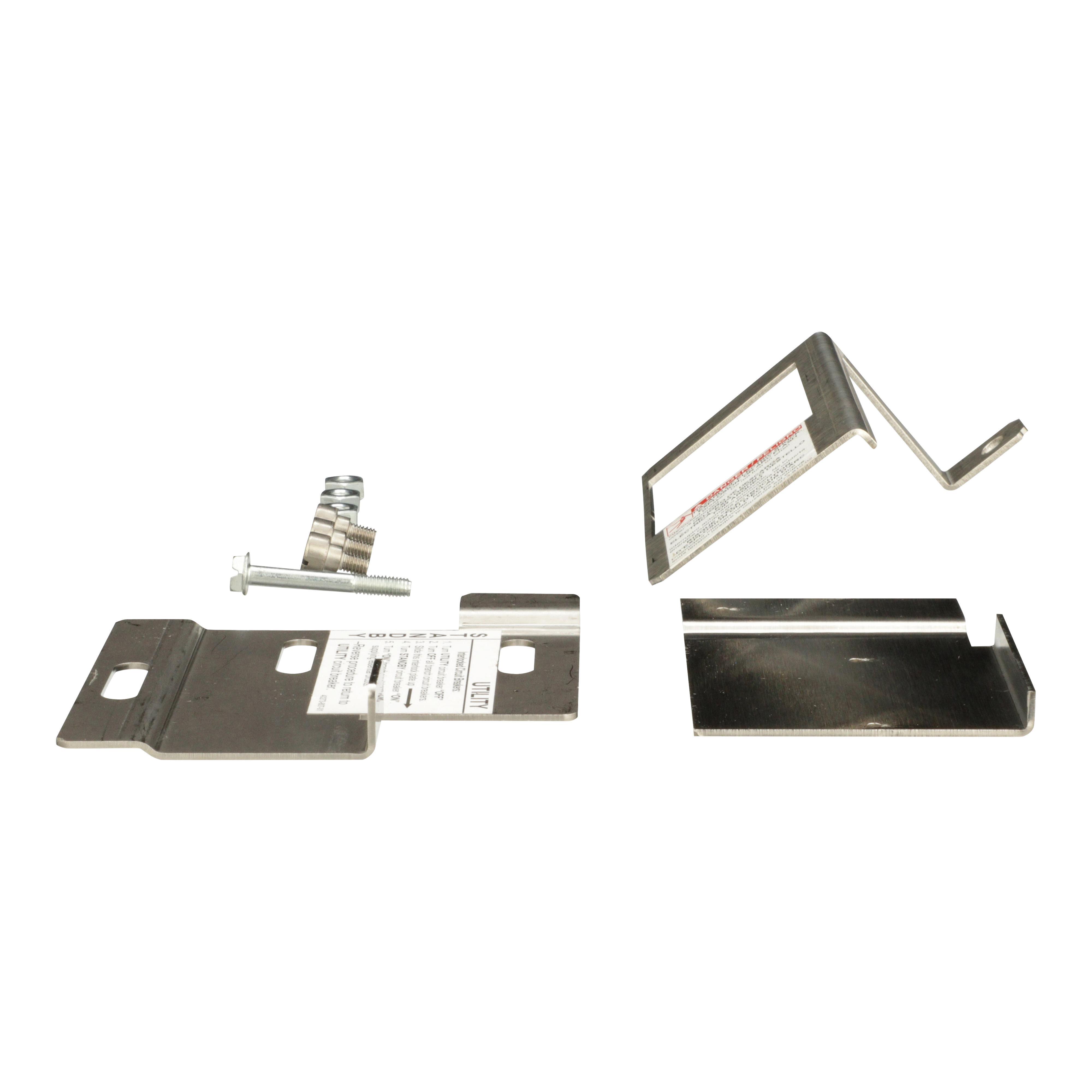

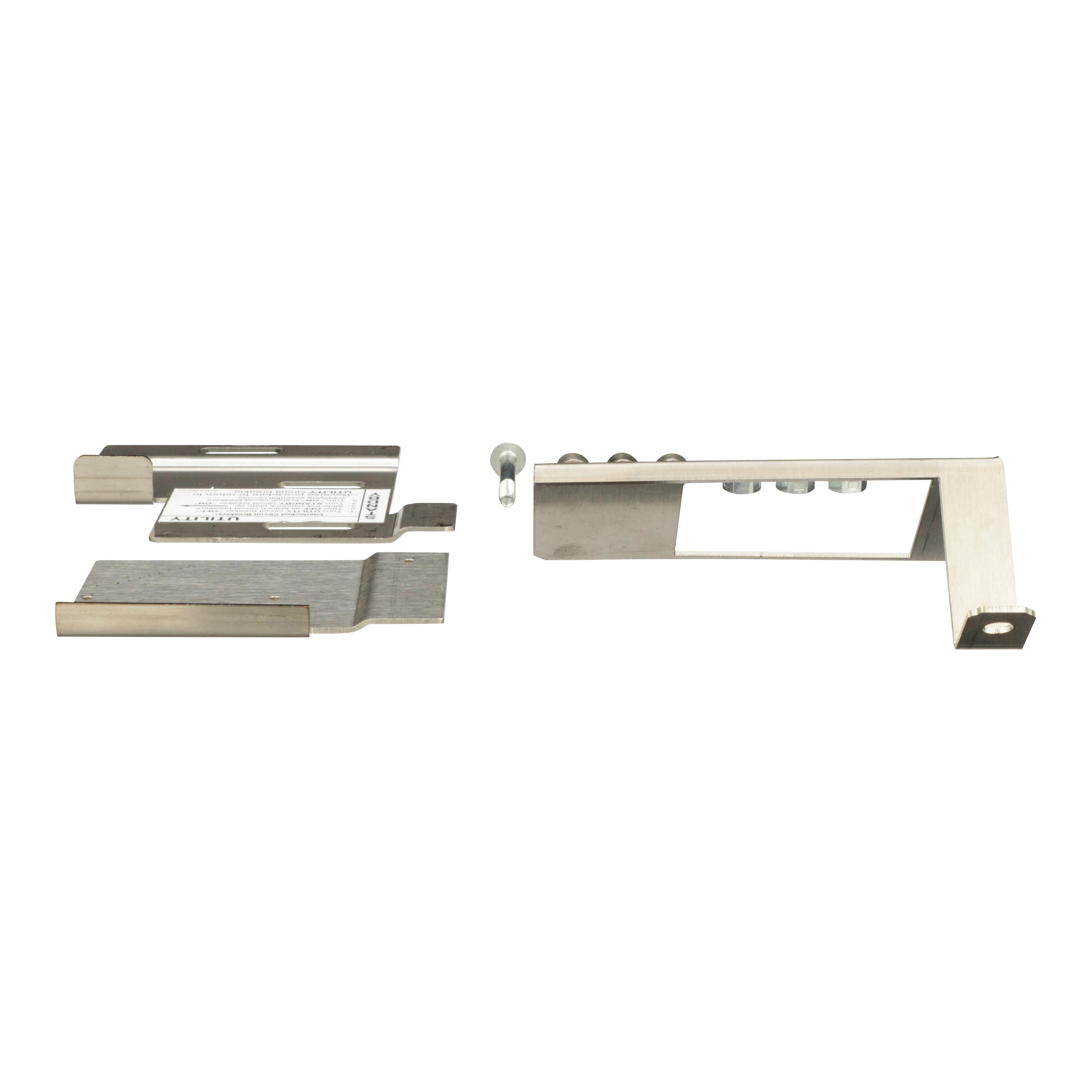

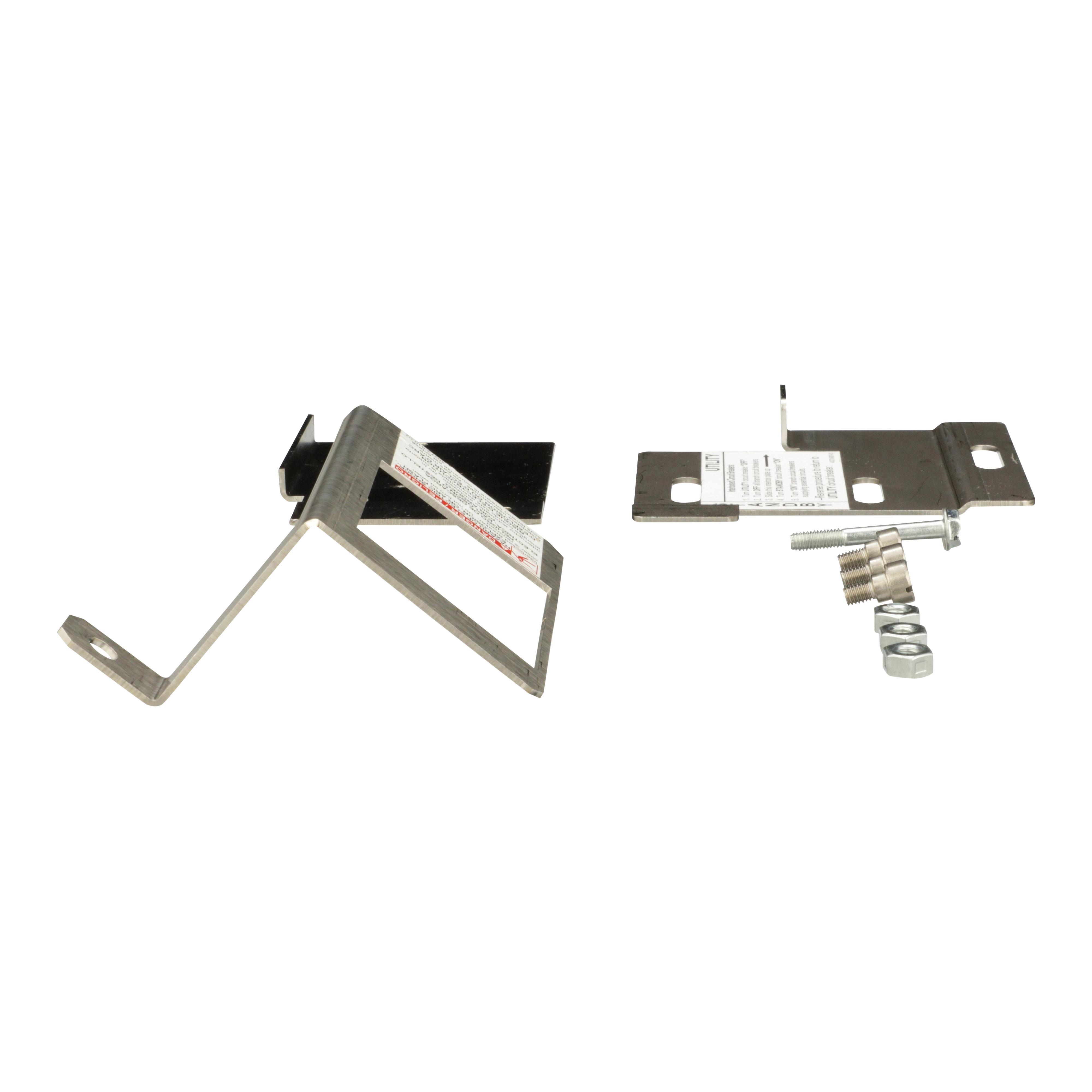

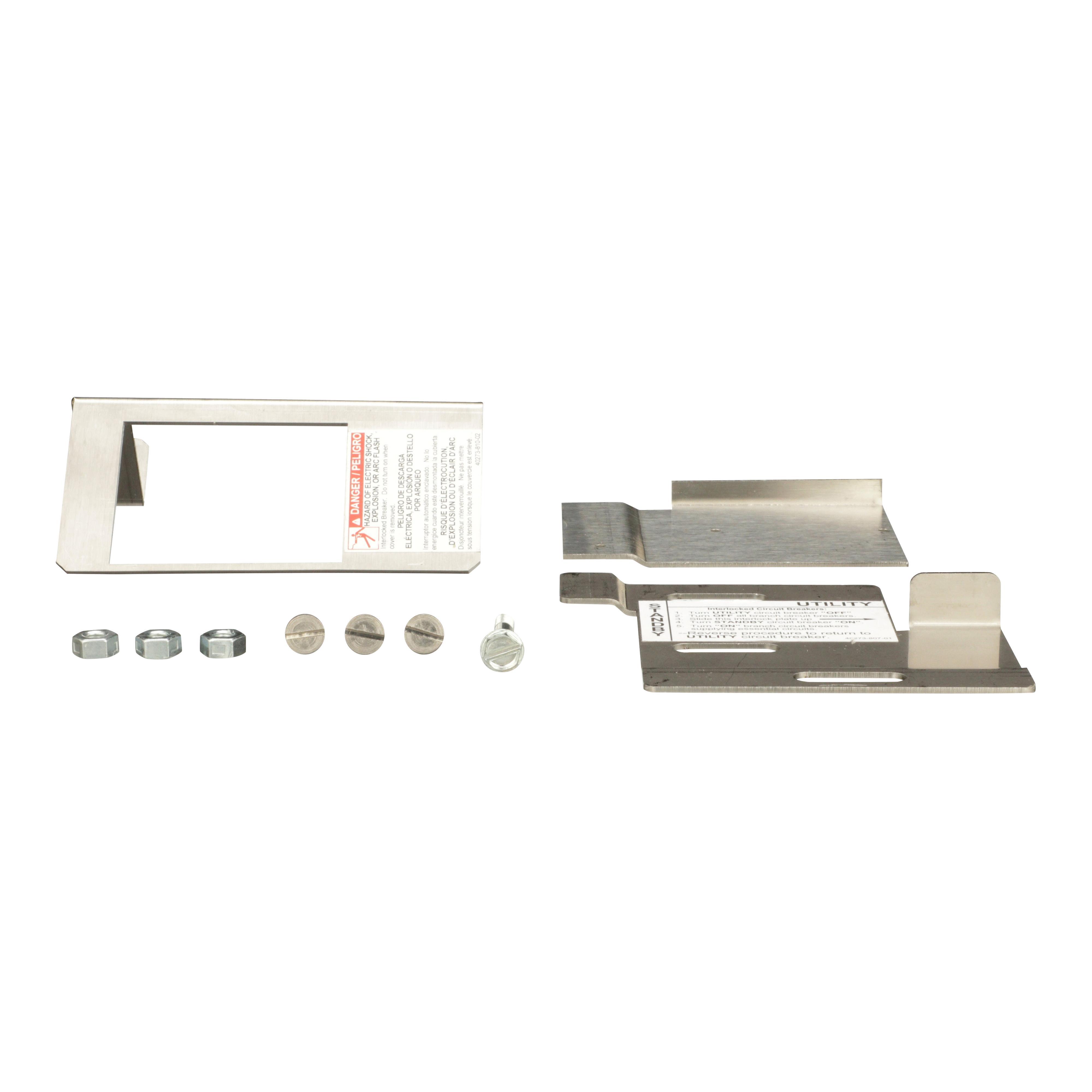

Homeline generator panels are for the manual transfer from utility to generator power. This generator circuit breaker interlock kit is for use on "S2" and "S3" series NEMA 1 and "S1" series NEMA 3R Homeline generator load centers. It is used to interlock a QOM2 two pole main circuit breaker of the load center (150A to 225A) with a Homeline two pole (15A to 125A) branch circuit breaker. This interlock kit has a maximum height of 2.56 inches, a maximum width of 4.07 inches and maximum depth of 0.9 inches. This interlock kit is packaged in consumer packaging. This unit is consumer packaged.
Square D™ Homeline™ Panel Interlock Kit, For Use With: Loadcenter Generator, Specifications: 15 to 125 A, 150 to 225 A Current

Specifications

 Application Outdoor Applications
 Brand Name Square D
 Manufacturer Part Number HOMRBGK2C
 Specifications 15 to 125 A, 150 to 225 A Current
 Standards/Approvals RoHS Compliant|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Suitable For Use With Loadcenter Generator
 Video Links

Features

▪ Compatible with any Square D Homeline Circuit Breaker
▪ The fully distributed neutral bar allows for Homeline plug-on neutral circuit breakers in any space
