Description: Square D™ Homeline™ Main Lug Loadcenter, 1-Phase, 120/240 VAC, 50 A, 1 Pole, 50/60 Hz Frequency, 10 kA Interrupt, 4 Circuits, HOM/GFCI Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 2 Spaces, 8 to 6 AWG Wire, Surface Mounting, NEMA 3R Enclosure, 1R Enclosure Box, Steel Housing Material, 4.88 in W x 4 in D x 9.38 in H Dimensions

Manufacturer PN: HOME250SPA

UPC:  78590123054

Kendall Electric Inc PN: 3959622

Invoice Description:

HOME250SPA SQD ENCLOSED CIRCUIT


SPEC SHEET

▸ See All in Single Phase Main Lug Load Centers


How Can We Make This Page Better?

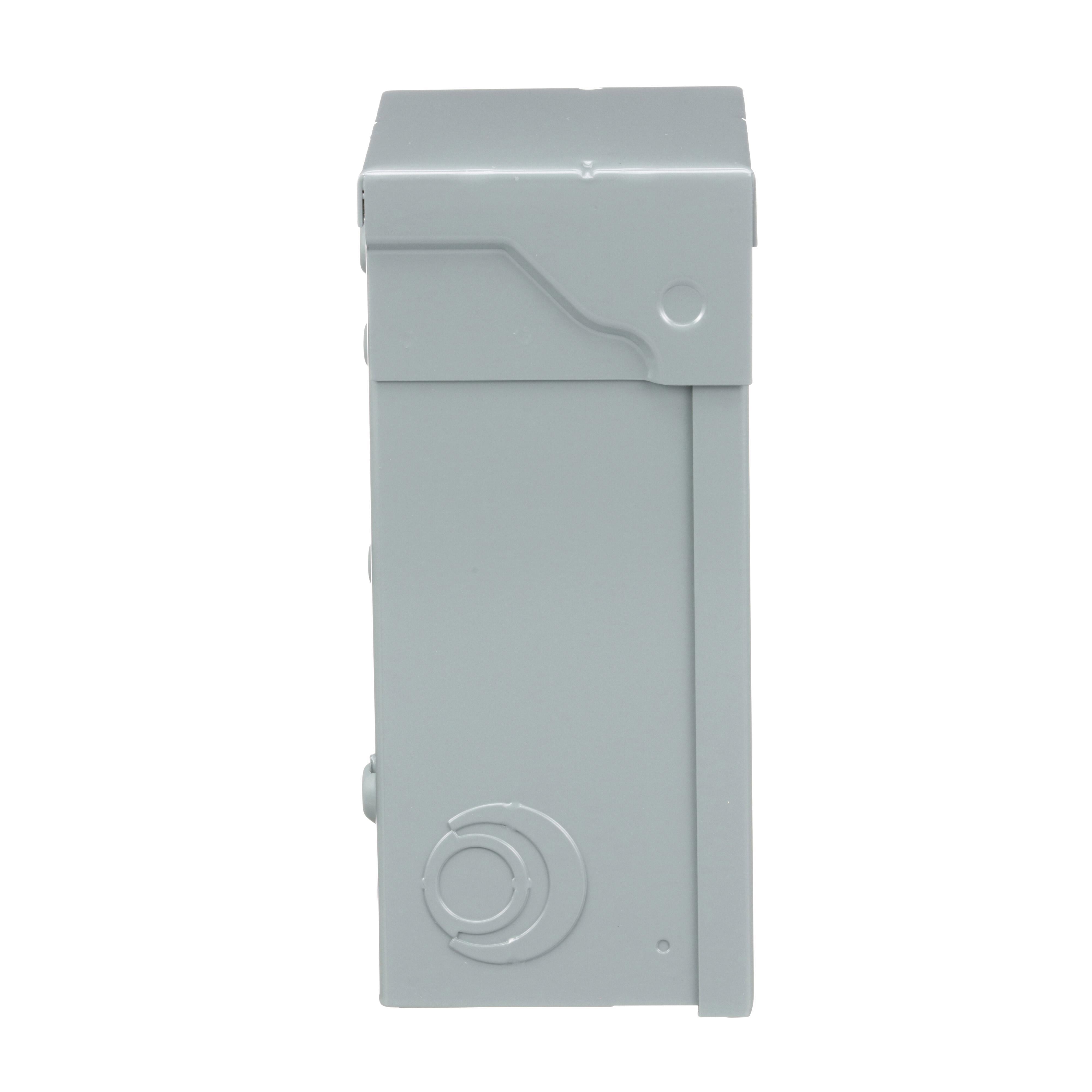

Square D™ Homeline™ HOME250SPA 1-Phase Main Lug Loadcenter, 120/240 VAC, 50 A, 1 Pole, 10 kA Interrupt

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™ Homeline™ Main Lug Loadcenter, 1-Phase, 120/240 VAC, 50 A, 1 Pole, 50/60 Hz Frequency, 10 kA Interrupt, 4 Circuits, HOM/GFCI Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 2 Spaces, 8 to 6 AWG Wire, Surface Mounting, NEMA 3R Enclosure, 1R Enclosure Box, Steel Housing Material, 4.88 in W x 4 in D x 9.38 in H Dimensions

Specifications

 Amperage Rating 50 A
 Application For outdoor, residential, commercial, industrial requirements to protect electrical systems, equipment and people
 Brand Name Square D
 Breaker Mounting Panel
 Breaker Type HOM/GFCI
 Dimensions 4.88 in W x 4 in D x 9.38 in H
 Enclosure NEMA 3R
 Enclosure Box Size 1R
 Frequency Rating 50/60 Hz
 Housing Material Steel
 Manufacturer Part Number HOME250SPA
 Mounting Type Surface
 Number of Circuits 4
 Number of Poles 1
 Number of Spaces 2
 Standards/Approvals RoHS Compliant|UL File No. E6294|CSA Certified|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Type 1-Phase
 Video Links
 Voltage Rating 120/240 VAC
 Wiring Configuration 3-Wire

Features

▪ Provisions for door lock on convertible mains panel covers
▪ Lug electrical connection
▪ Does not accepts plug-on neutral circuit breaker
▪ Top end wall has no hub opening
▪ Tin plated aluminum bus construction on main lug or main circuit breaker panels
▪ Service entrance equipment capable panels
▪ Straight in wiring to help minimize service cable installation
▪ Single captive screw interior mounting on indoor panels to ease removal
▪ New side hinge doors on outdoor convertible main panels
▪ Outdoor panel covers are lockable with padlock
▪ Gray baked enamel electrodeposited over cleaned, phosphatized steel
▪ Top or bottom feed by rotating convertible mains panels 180 deg
▪ Split branch neutral for clutter-free wiring
