Description: Square D™ Homeline™ Main Circuit Breaker Load Center, 1-Phase Convertible Neutral, 120/240 V AC, 200 A, 1 Pole, 50/60 Hz Frequency, 22 kA Interrupt, 120 Circuits, Panel Breaker Mounting, 3-Wire Wiring Configuration, 60 Spaces, 4 AWG to 250 kcmil, 4 AWG to 300 kcmil Wire, Flush/Plug-On Mounting, NEMA 1 Enclosure, NEMA 25 Enclosure Box, Steel Housing Material, 38 mm W x 143 mm D x 485 mm H Dimensions

Manufacturer PN: HOM60120M200PC

UPC:  78590197405

Kendall Electric Inc PN: 3962728

Invoice Description:

HOM60120M200PC SQD HOM INDR 200A MB


SPEC SHEET

▸ See All in Single Phase Main Breaker Load Centers


How Can We Make This Page Better?

Square D™ Homeline™ HOM60120M200PC 1-Phase Convertible Neutral Main Circuit Breaker Load Center With Combination Flush/Surface Cover, 120/240 V AC, 200 A, 1 Poles, 22 kA Interrupt

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

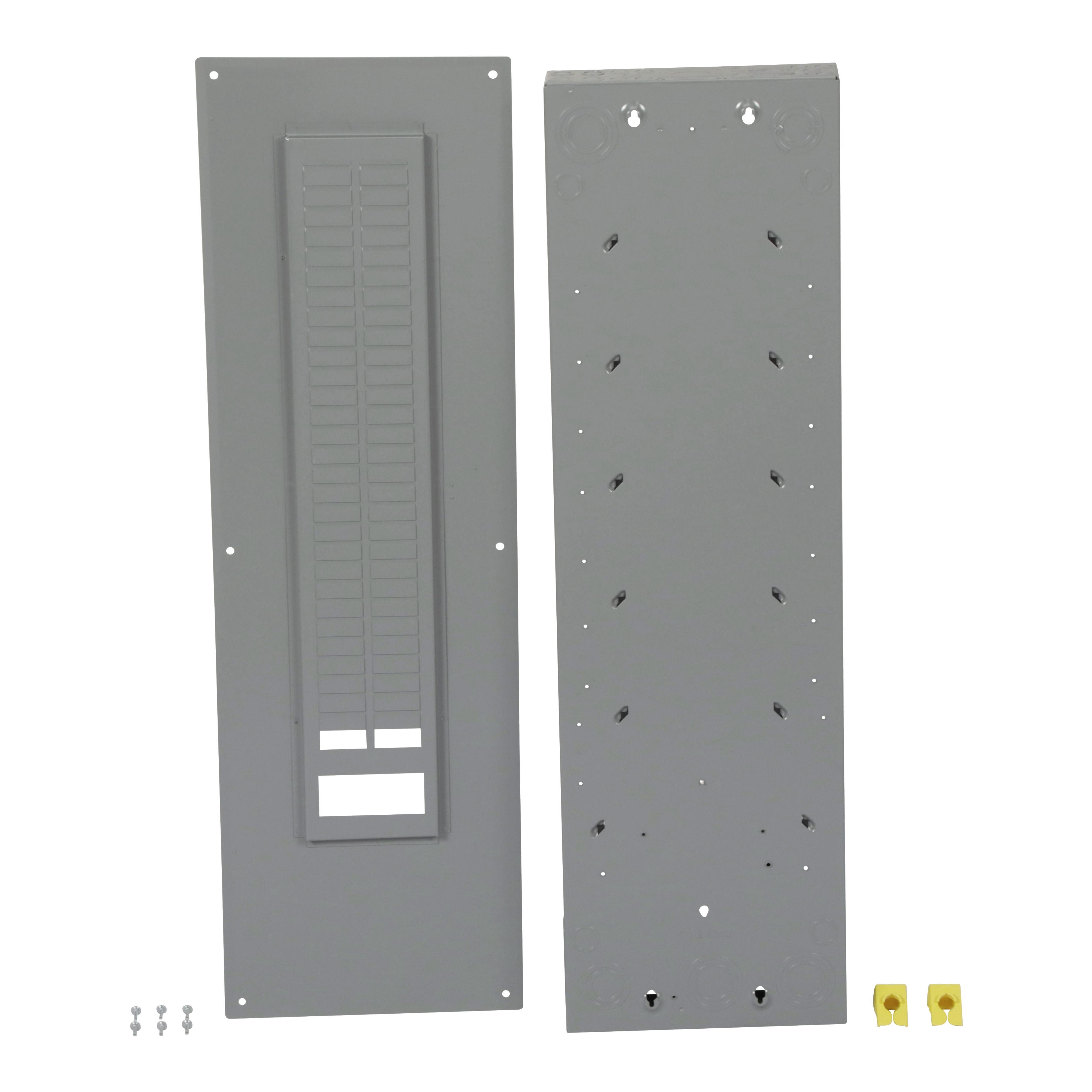

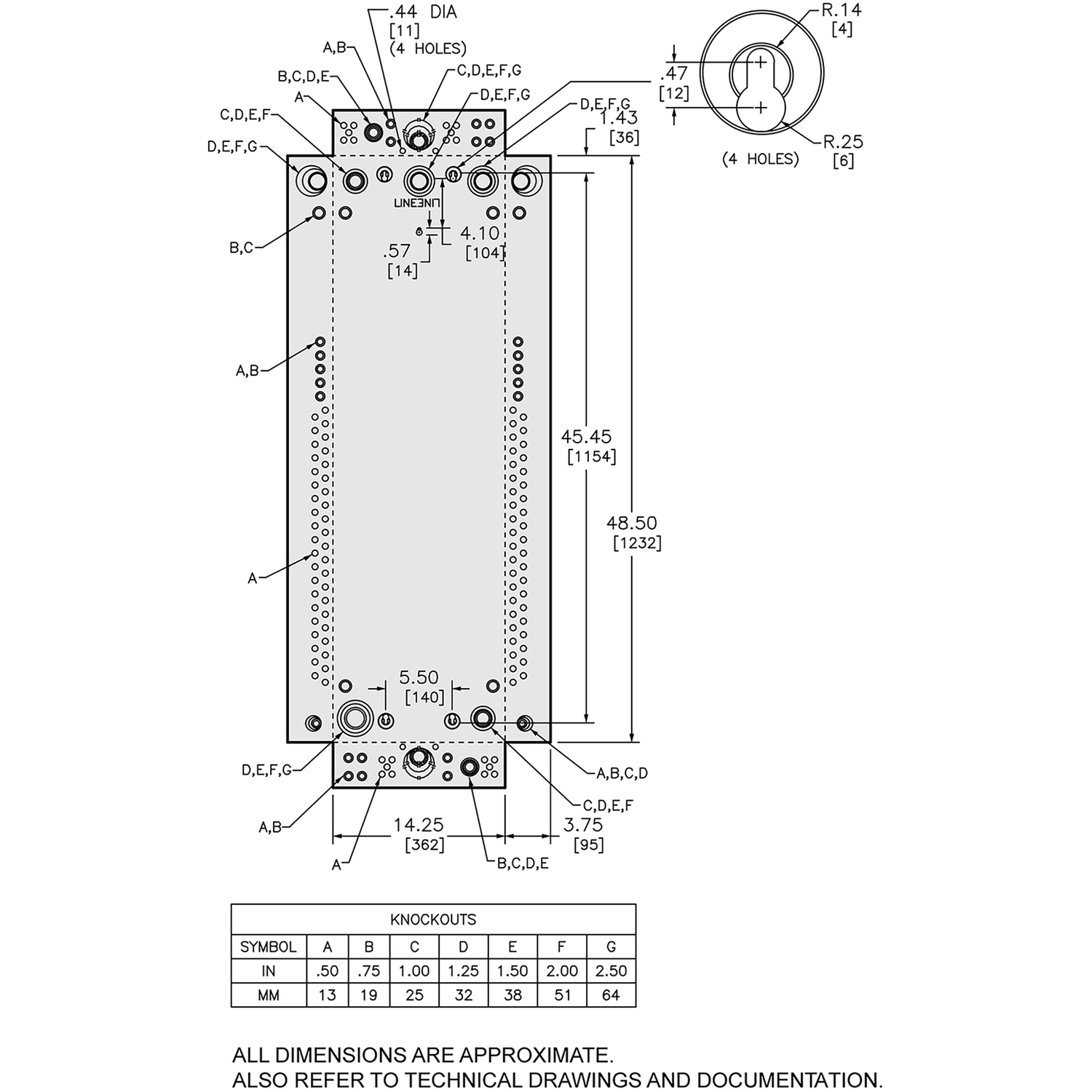

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 60 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 48.62 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.
Square D™ Homeline™ Main Circuit Breaker Load Center, 1-Phase Convertible Neutral, 120/240 V AC, 200 A, 1 Pole, 50/60 Hz Frequency, 22 kA Interrupt, 120 Circuits, Panel Breaker Mounting, 3-Wire Wiring Configuration, 60 Spaces, 4 AWG to 250 kcmil, 4 AWG to 300 kcmil Wire, Flush/Plug-On Mounting, NEMA 1 Enclosure, NEMA 25 Enclosure Box, Steel Housing Material, 38 mm W x 143 mm D x 485 mm H Dimensions

Specifications

 Amperage Rating 200 A
 Application For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people applications
 Brand Name Square D
 Breaker Mounting Panel
 Dimensions 38 mm W x 143 mm D x 485 mm H
 Enclosure NEMA 1
 Enclosure Box Size NEMA 25
 Frequency Rating 50/60 Hz
 Housing Material Steel
 Includes Combination Flush/Surface Cover
 Manufacturer Part Number HOM60120M200PC
 Mounting Type Flush/Plug-On
 Number of Circuits 120
 Number of Poles 1
 Number of Spaces 60
 PART NUMBER KEYWORDS HOM60120M200PC ; 12953328 ; 785901974055 ; 78590197405 ; 00785901974055 ; 0785901974055
 Standards/Approvals RoHS Compliant|UL File No. E6294|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Type 1-Phase Convertible Neutral
 Video Links
 Voltage Rating 120/240 V AC
 Wiring Configuration 3-Wire

Features

▪ Fast installation, reliability, and superior circuit protection
▪ Protects against equipment overloads and short-circuits
▪ Tin and copper plated aluminum bus bars
▪ Replacement covers in gray and white
▪ Distributed neutral bars keeps wiring tidy
