Schneider Electric
  • HOM3060M200PCVP SQD HOM VALPK INDR
  • HOM3060M200PCVP SQD HOM VALPK INDR
  • HOM3060M200PCVP SQD HOM VALPK INDR

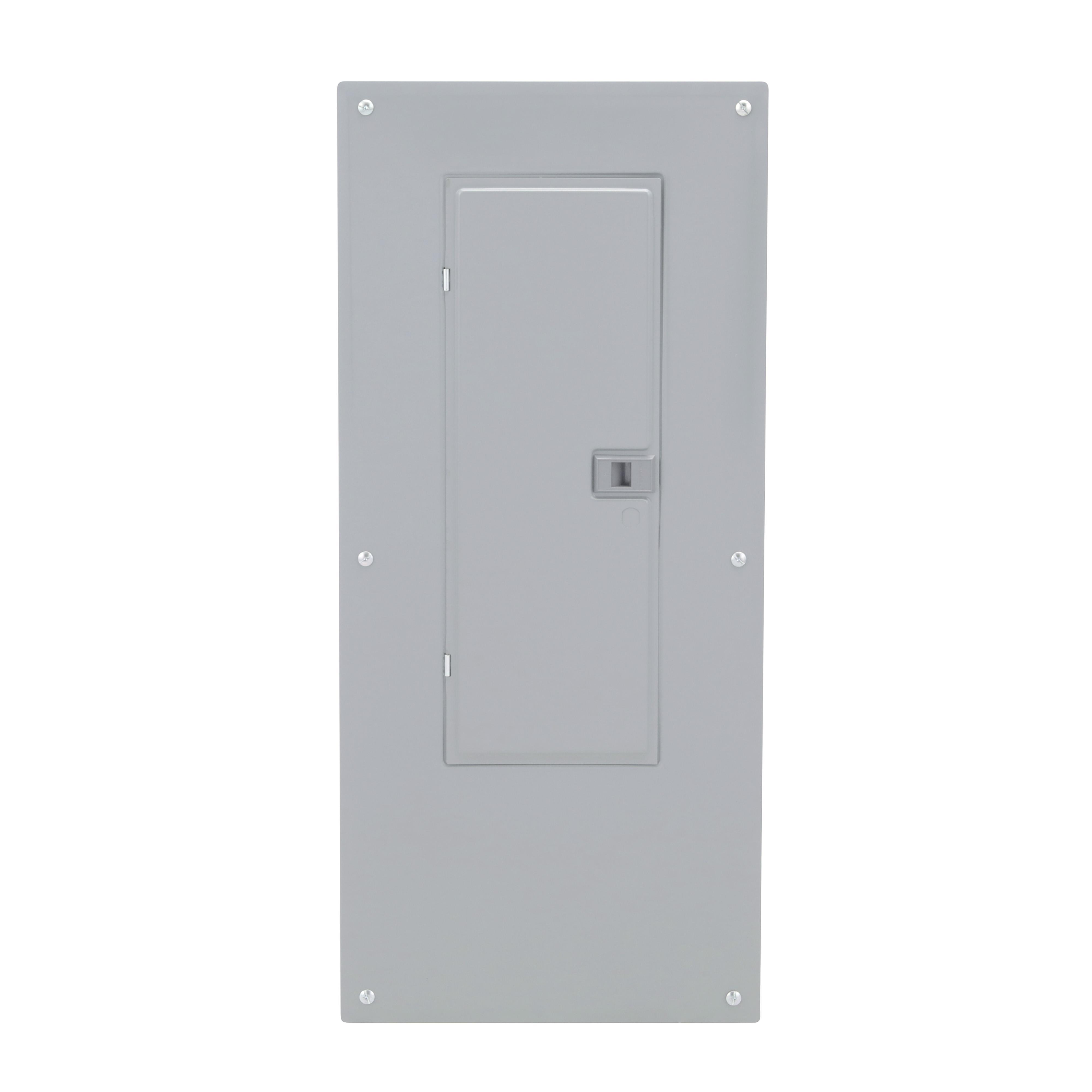

Description: Square D™ Homeline™ Main Breaker Loadcenter, 1-Phase Convertible Neutral Value Pack, 120/240 VAC, 200 A, 1 Pole, 50/60 Hz Frequency, 22 kA Interrupt, 60 Circuits, HOM Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 30 Spaces, 4 AWG to 250 kcmil Wire, Flush/Plug-On/Surface Mounting, NEMA 1 Enclosure, 10 Enclosure Box, Steel Housing Material, 14.25 in W x 3.75 in D x 33.78 in H Dimensions

Manufacturer PN: HOM3060M200PCVP

UPC:  78590197782

Kendall Electric Inc PN: 3962694

Invoice Description:

HOM3060M200PCVP SQD HOM VALPK INDR


SPEC SHEET

▸ See All in Panel-Breaker Packages


How Can We Make This Page Better?

Square D™ Homeline™ HOM3060M200PCVP 1-Phase Convertible Neutral Value Pack Main Breaker Loadcenter, 120/240 VAC, 200 A, 1 Pole, 22 kA Interrupt

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™ Homeline™ Main Breaker Loadcenter, 1-Phase Convertible Neutral Value Pack, 120/240 VAC, 200 A, 1 Pole, 50/60 Hz Frequency, 22 kA Interrupt, 60 Circuits, HOM Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 30 Spaces, 4 AWG to 250 kcmil Wire, Flush/Plug-On/Surface Mounting, NEMA 1 Enclosure, 10 Enclosure Box, Steel Housing Material, 14.25 in W x 3.75 in D x 33.78 in H Dimensions

Specifications

 Amperage Rating 200 A
 Application For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people
 Brand Name Square D
 Breaker Mounting Panel
 Breaker Type HOM
 Dimensions 14.25 in W x 3.75 in D x 33.78 in H
 Enclosure NEMA 1
 Enclosure Box Size 10
 Frequency Rating 50/60 Hz
 Housing Material Steel
 Includes Combination Flush/Surface Cover and Value Pack With Standard Circuit Breaker
 Manufacturer Part Number HOM3060M200PCVP
 Mounting Type Flush/Plug-On/Surface
 Number of Circuits 60
 Number of Poles 1
 Number of Spaces 30
 Standards/Approvals RoHS Compliant|Buy American Act Compliant|UL File No. E6294|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
 Type 1-Phase Convertible Neutral Value Pack
 Video Links
 Voltage Rating 120/240 VAC
 Wiring Configuration 3-Wire

Features

▪ Provisions for door lock on convertible mains panel covers
▪ Lug electrical connection
▪ Tin plated aluminum bus construction on main lug or main circuit breaker panels
▪ Service entrance equipment capable panels
▪ Straight in wiring to help minimize service cable installation
▪ Single captive screw interior mounting on indoor panels to ease removal
▪ New side hinge doors on outdoor convertible main panels
▪ Outdoor panel covers are lockable with padlock
▪ Gray baked enamel electrodeposited over cleaned, phosphatized steel
▪ Top or bottom feed by rotating convertible mains panels 180 deg
▪ Split branch neutral for clutter-free wiring
