Schneider Electric
  • HOM3060M200PC SQD HOM INDR 200A MB
  • HOM3060M200PC SQD HOM INDR 200A MB

Description: Square D™ Homeline™ Main Breaker Loadcenter, 1-ph Convertible Neutral, 120/240 V AC, 200 A, 1 Pole, 50/60 Hz, 22 kA Interrupt, 60 Circuits, HOM Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 30 Spaces, 6 to 2/0 AWG, 4 AWG to 250 kcmil Wire, Flush/Plug-On/Surface Mount, NEMA 1, 10 Enclosure Box, Steel Housing, 14.25 in W x 3.75 in D x 33.78 in H

Manufacturer PN: HOM3060M200PC

UPC:  78590197775

Kendall Electric Inc PN: 3962696

Invoice Description:

HOM3060M200PC SQD HOM INDR 200A MB


SPEC SHEET

▸ See All in Single Phase Main Breaker Load Centers


How Can We Make This Page Better?

Square D™ Homeline™ HOM3060M200PC 1-ph Convertible Neutral Main Breaker Loadcenter, 120/240 V AC, 200 A, 1 Pole, 22 kA Interrupt

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 30 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 33.77 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.
Square D™ Homeline™ Main Breaker Loadcenter, 1-ph Convertible Neutral, 120/240 V AC, 200 A, 1 Pole, 50/60 Hz, 22 kA Interrupt, 60 Circuits, HOM Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 30 Spaces, 6 to 2/0 AWG, 4 AWG to 250 kcmil Wire, Flush/Plug-On/Surface Mount, NEMA 1, 10 Enclosure Box, Steel Housing, 14.25 in W x 3.75 in D x 33.78 in H

Specifications

 Amperage Rating 200 A
 Application For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people
 Brand Name Square D
 Breaker Mounting Panel
 Breaker Type HOM

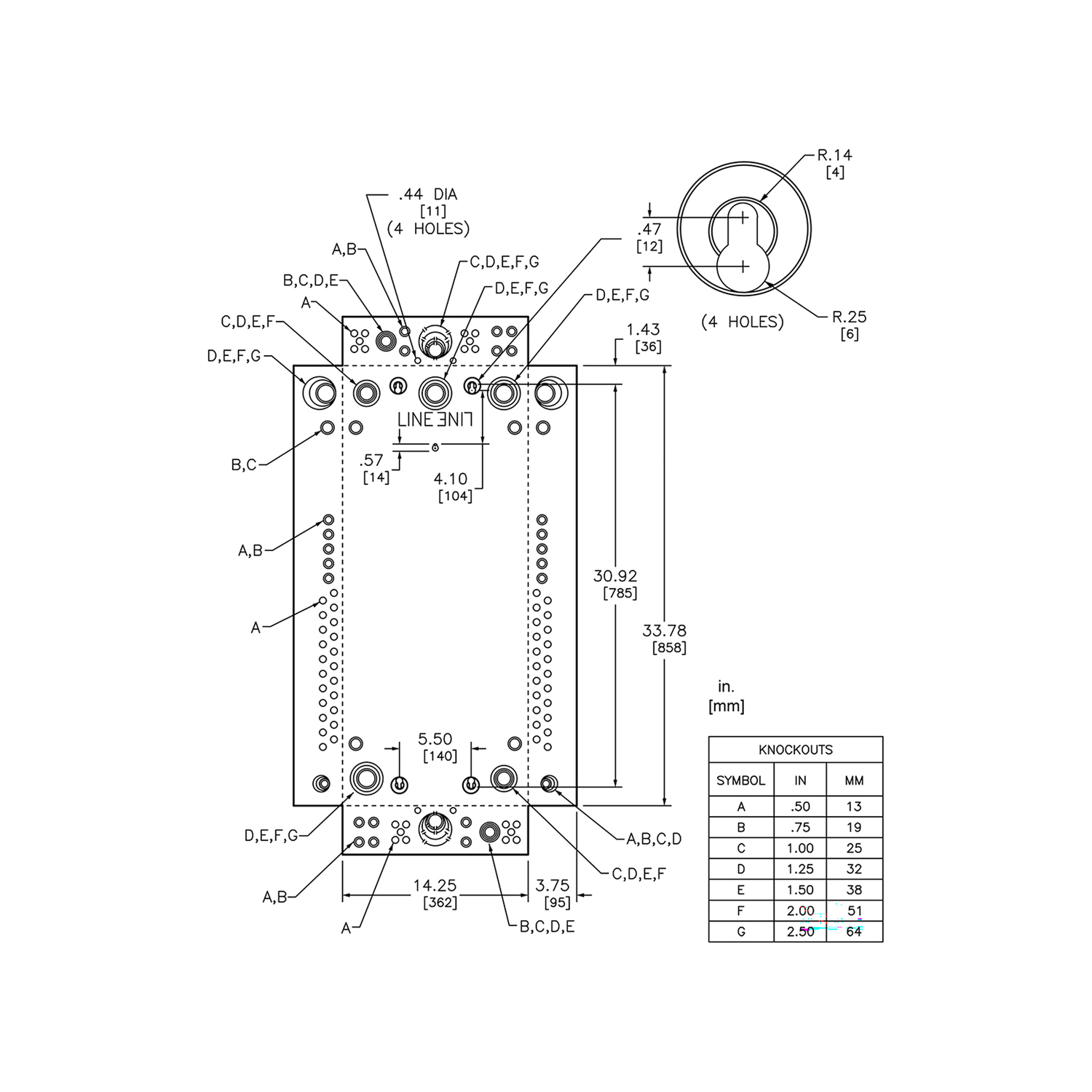

 Dimensions 14.25 in W x 3.75 in D x 33.78 in H
 Enclosure NEMA 1
 Enclosure Box Size 10
 Frequency Rating 50/60 Hz
 Housing Material Steel
 Includes Combination Flush/Surface Cover
 Manufacturer Part Number HOM3060M200PC
 Mounting Type Flush/Plug-On/Surface
 Number of Circuits 60
 Number of Poles 1
 Number of Spaces 30
 PART NUMBER KEYWORDS HOM3060M200PC ; 12953349 ; 785901977759 ; 78590197775 ; 00785901977759 ; 0785901977759
 Standards/Approvals RoHS Compliant|Buy American Act Compliant|UL File No. E6294|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Type 1-ph Convertible Neutral
 Video Links
 Voltage Rating 120/240 V AC
 Wiring Configuration 3-Wire

Features

▪ Fast installation, reliability, and superior circuit protection
▪ Protects against equipment overloads and short-circuits
▪ Tin and copper plated aluminum bus bars
▪ Replacement covers in gray and white
▪ Distributed neutral bars keeps wiring tidy
