Schneider Electric
  • HOM250GFI SQD MINIATURE CIRCUIT
  • HOM250GFI SQD MINIATURE CIRCUIT
  • HOM250GFI SQD MINIATURE CIRCUIT
  • HOM250GFI SQD MINIATURE CIRCUIT
  • HOM250GFI SQD MINIATURE CIRCUIT

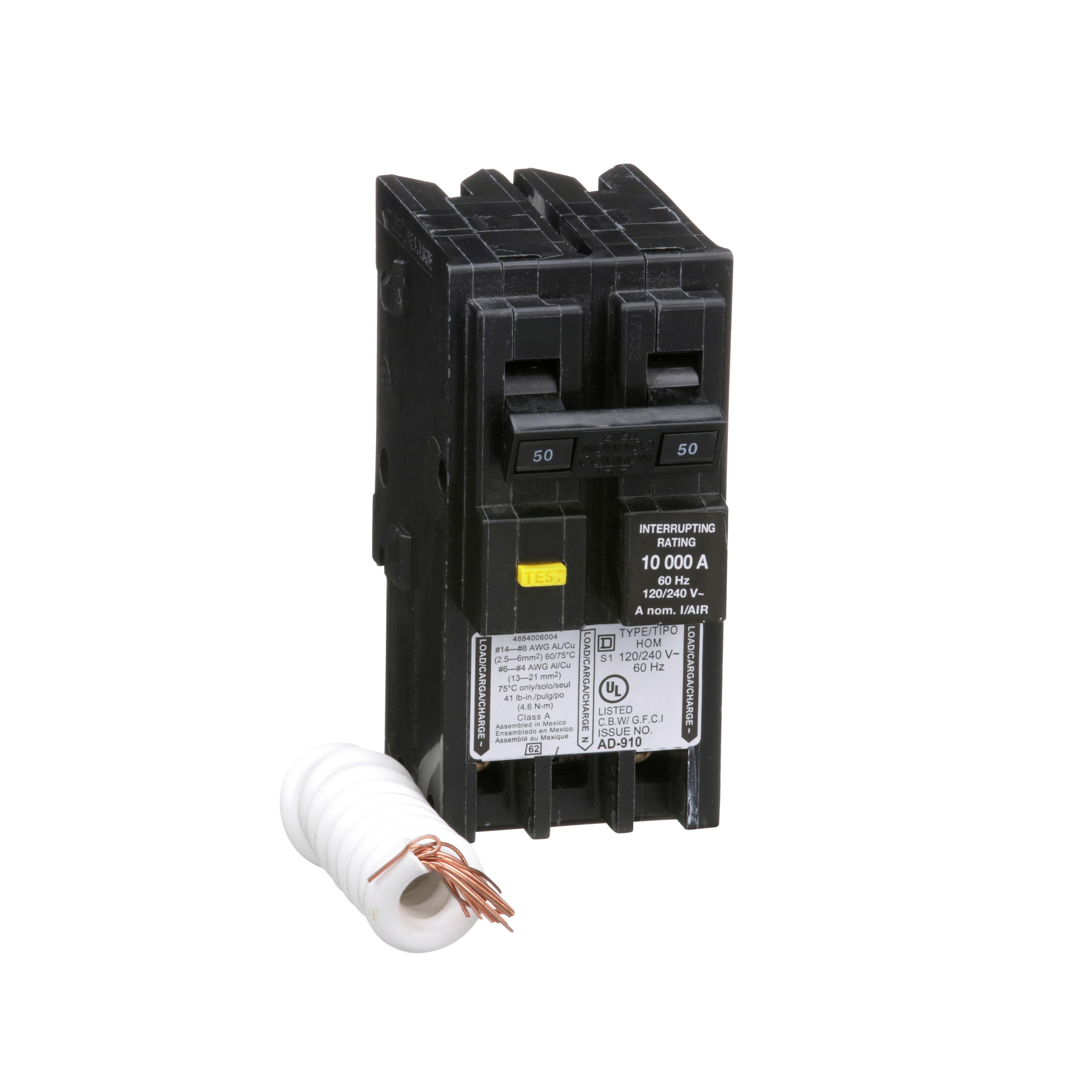

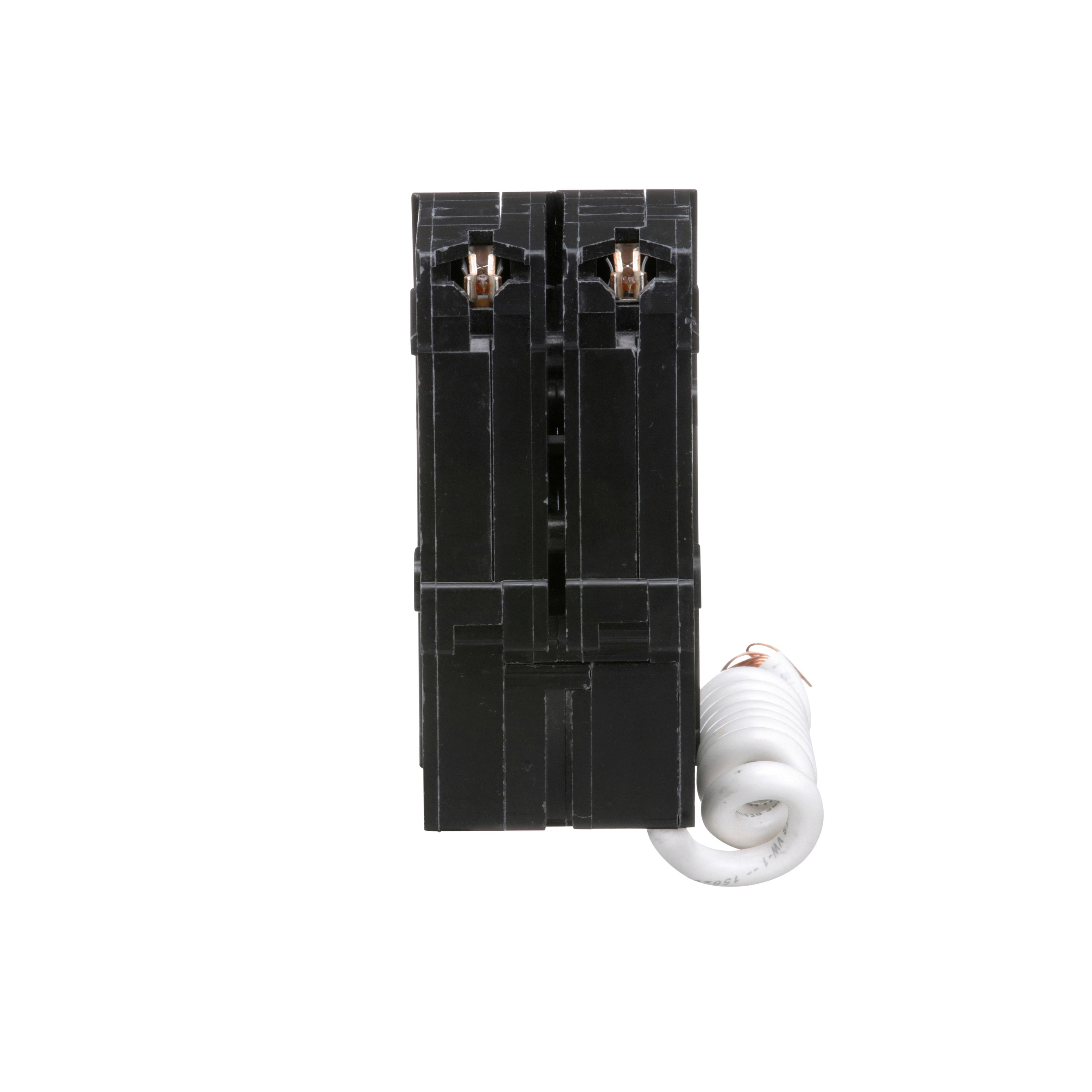

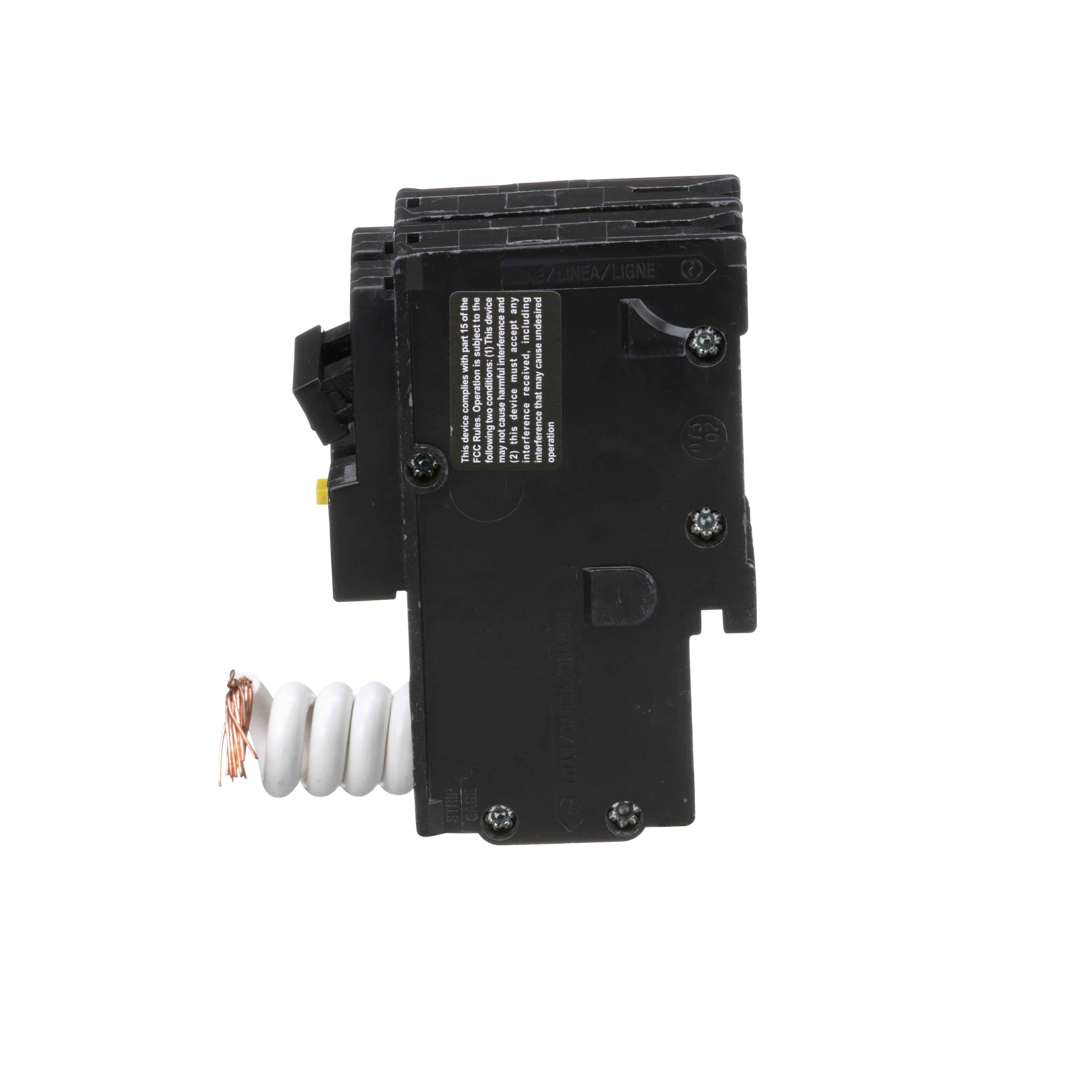

Description: Square D™, HOM250GFI, Miniature Circuit Breaker, Class A Ground Fault, Series: HOM, 120/240 V AC, 50 A, 50/60 Hz Frequency, 10 kA Interrupt, HOM Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Terminal Screw Connection, 14 to 6 AWG, 12 to 4 AWG Wire, Plug-In Mounting, 40 deg C, 2.98 in L x 2 in W x 3.13 in H Dimensions

Manufacturer PN: HOM250GFI

UPC:  78590178357

Kendall Electric Inc PN: 3999778

Invoice Description:

HOM250GFI SQD MINIATURE CIRCUIT


SPEC SHEET

How Can We Make This Page Better?

Square D™ HOM250GFI HOM Class A Ground Fault Miniature Circuit Breaker, 120/240 V AC, 50 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 50A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 1 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
Square D™, HOM250GFI, Miniature Circuit Breaker, Class A Ground Fault, Series: HOM, 120/240 V AC, 50 A, 50/60 Hz Frequency, 10 kA Interrupt, HOM Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Terminal Screw Connection, 14 to 6 AWG, 12 to 4 AWG Wire, Plug-In Mounting, 40 deg C, 2.98 in L x 2 in W x 3.13 in H Dimensions

Specifications

 Amperage Rating 50 A
 Application For providing overload and short circuit protection
 Brand Name Square D
 Connection Type Terminal Screw
 Dimensions 2.98 in L x 2 in W x 3.13 in H
 Frame HOM
 Frequency Rating 50/60 Hz
 Manufacturer Part Number HOM250GFI
 Mounting Type Plug-In
 Number of Poles 2
 PART NUMBER KEYWORDS HOM250GFI ; 8029524 ; 785901783572 ; 78590178357 ; 00785901783572 ; 0785901783572
 Phase 1
 Series HOM
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
 Temperature Rating 40 deg C
 Type Class A Ground Fault
 Video Links
 Voltage Rating 120/240 V AC

Features

▪ Homeline GFCI MCB are designed to protect against irregular electrical current
▪ Compatible with Homeline electrical panel and CSEDs
▪ Protects against overload, short curcuits, and ground faults with a current greater than 6mA
