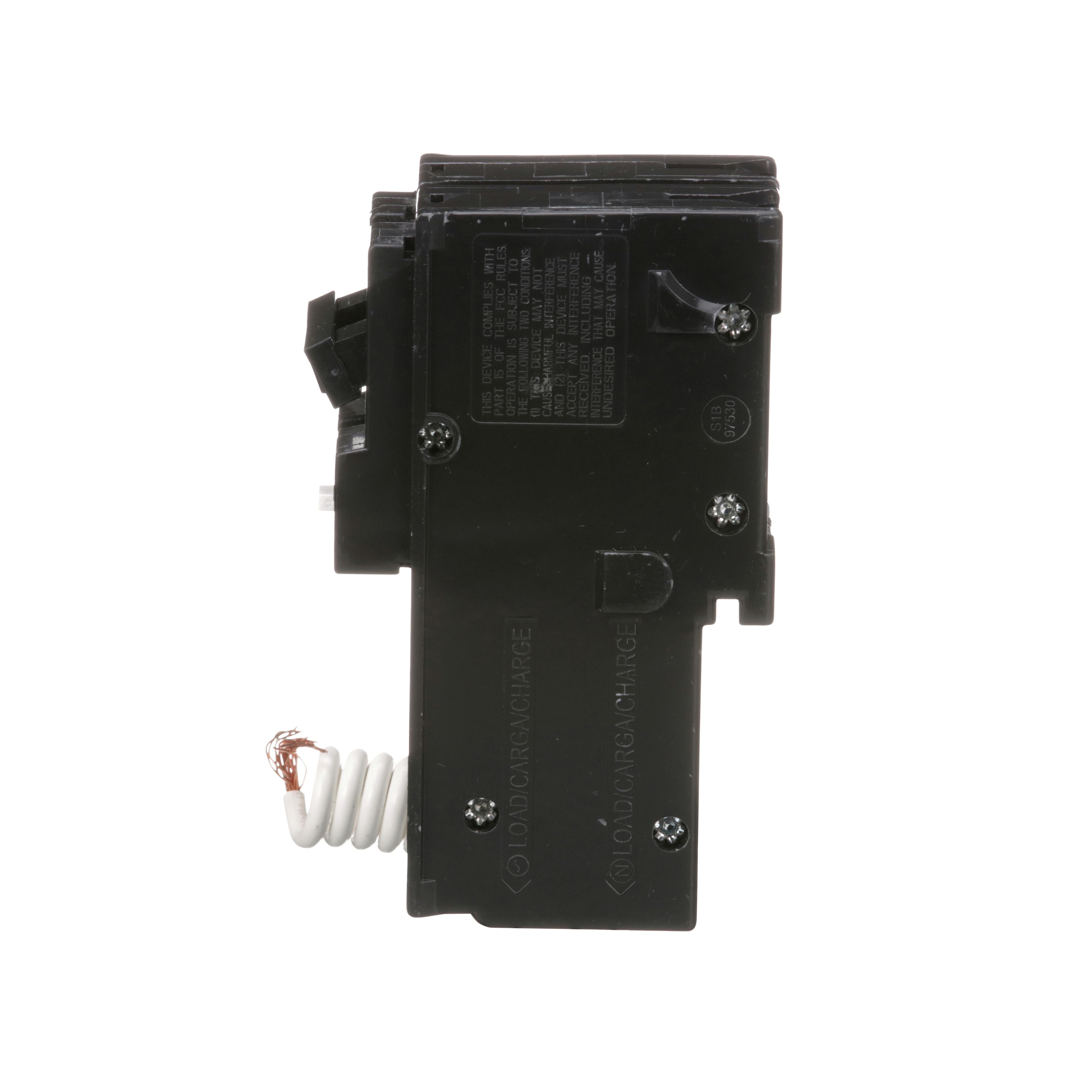

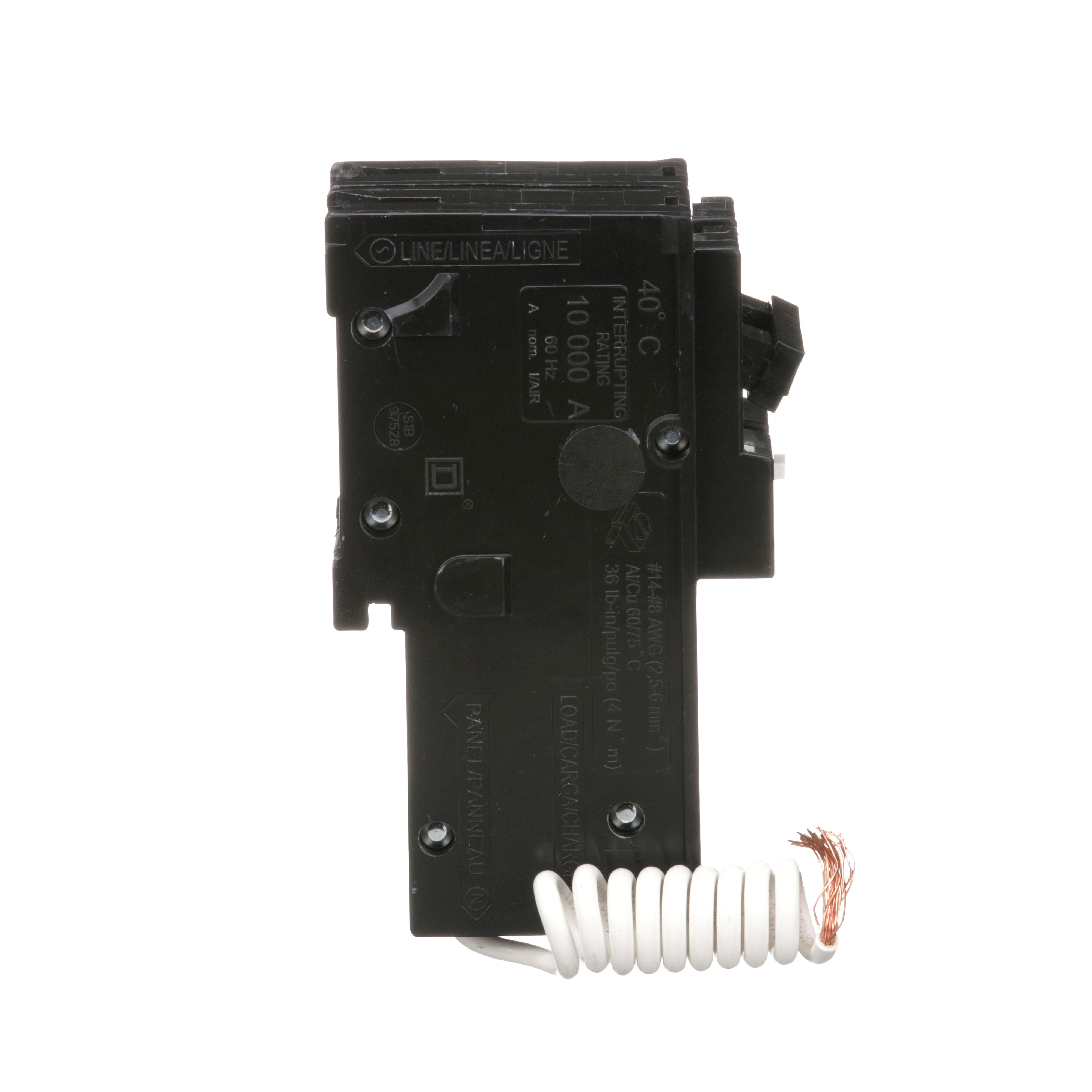

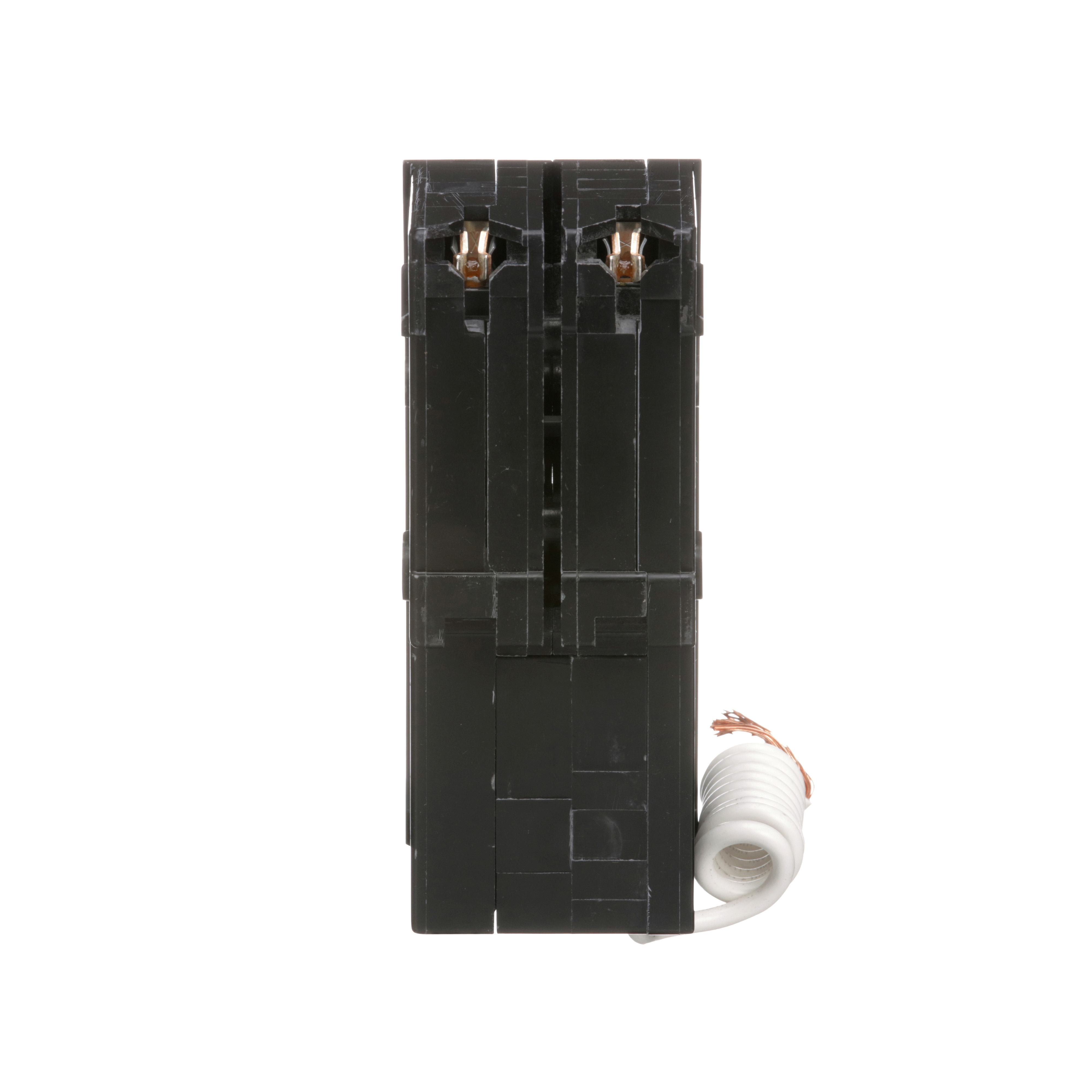

Description: Square D™ HomeLine™ Combination Miniature Arc Fault Circuit Breaker, 120/240 V AC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, Electronic Trip, 2 Pole, 1 ph, Clamp Connection, 14 to 8/14 to 10 AWG Wire, Plug-In Mounting, 40 deg C, 2.98 in L x 2 in W x 3.13 in H Dimensions

Manufacturer PN: HOM220CAFI

UPC:  78590139407

Kendall Electric Inc PN: 3962727

Invoice Description:

HOM220CAFI SQD MINIATURE CIRCUIT


SPEC SHEET

▸ See All in Combination Circuit Breakers


How Can We Make This Page Better?

Square D™ HomeLine™ HOM220CAFI Combination Miniature Arc Fault Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 2 Poles, Electronic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. Homeline combination arc fault circuit interrupters provide overload and short circuit protection, plus arc fault protection in accordance with the NEC and UL1699. This breaker has a pigtail neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
Square D™ HomeLine™ Combination Miniature Arc Fault Circuit Breaker, 120/240 V AC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, Electronic Trip, 2 Pole, 1 ph, Clamp Connection, 14 to 8/14 to 10 AWG Wire, Plug-In Mounting, 40 deg C, 2.98 in L x 2 in W x 3.13 in H Dimensions

Specifications

 Amperage Rating 20 A
 Brand Name Square D
 Connection Type Clamp
 Dimensions 2.98 in L x 2 in W x 3.13 in H
 Frequency Rating 50/60 Hz
 Manufacturer Part Number HOM220CAFI
 Mounting Type Plug-In
 Number of Poles 2
 PART NUMBER KEYWORDS HOM220CAFI ; 8023348 ; 785901394075 ; 78590139407 ; 00785901394075 ; 0785901394075
 Phase 1
 Standards/Approvals ANSI Specified|Buy American Act Compliant|CSA Certified|HACR Rated|RoHS Compliant|UL 1699|W-C-375B/GEN|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
 Temperature Rating 40 deg C
 Video Links
 Voltage Rating 120/240 V AC

Features

▪ Homeline MCBs provide value through their ease in installation, reliability, and superior circuit protection
▪ Designed to protect against equipment overloads and short-circuits
▪ Easy plug on design with SE Homeline Loadcenters
