Schneider Electric
  • HOM2175SB SQD LOAD CENTER HOM
  • HOM2175SB SQD LOAD CENTER HOM
  • HOM2175SB SQD LOAD CENTER HOM
  • HOM2175SB SQD LOAD CENTER HOM
  • HOM2175SB SQD LOAD CENTER HOM

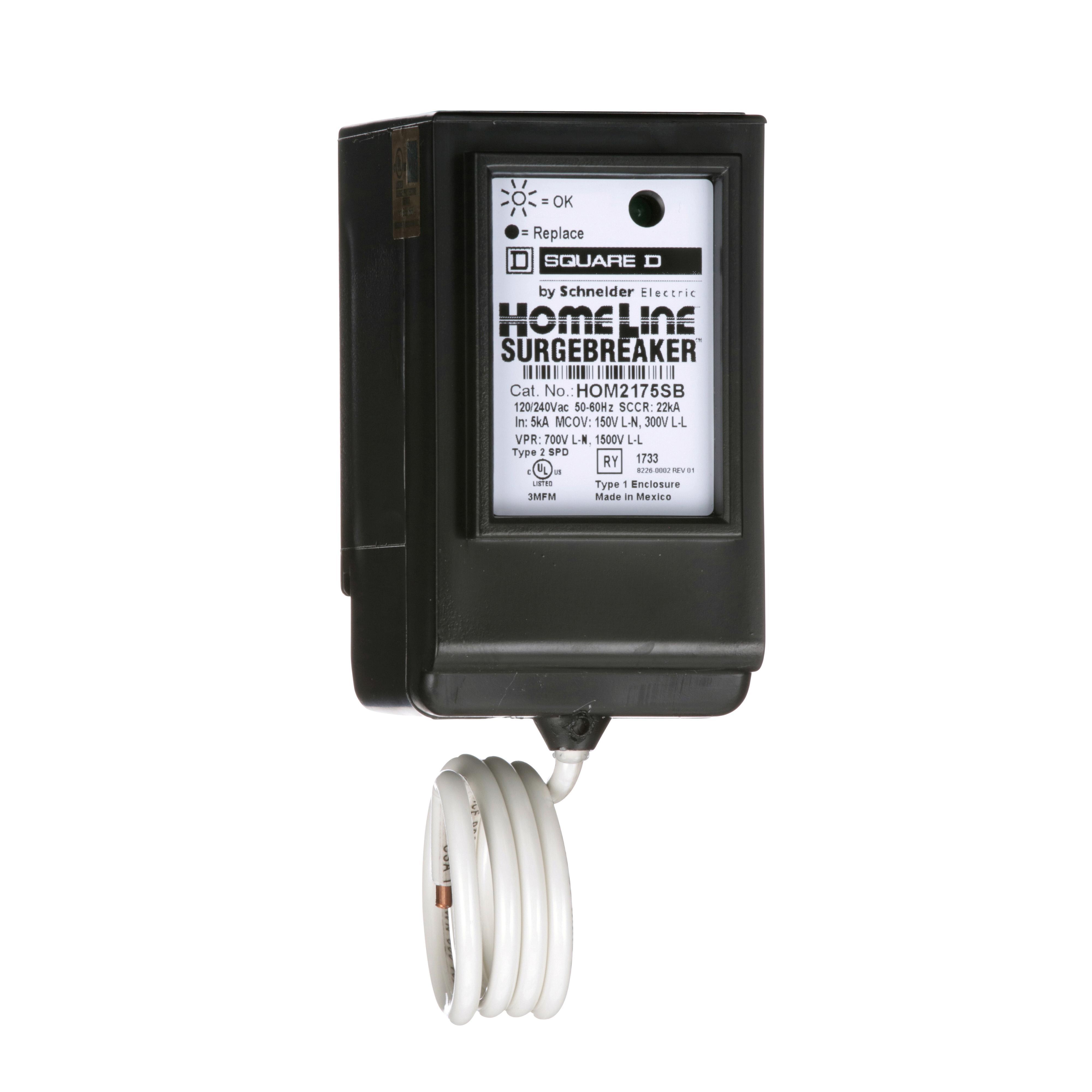

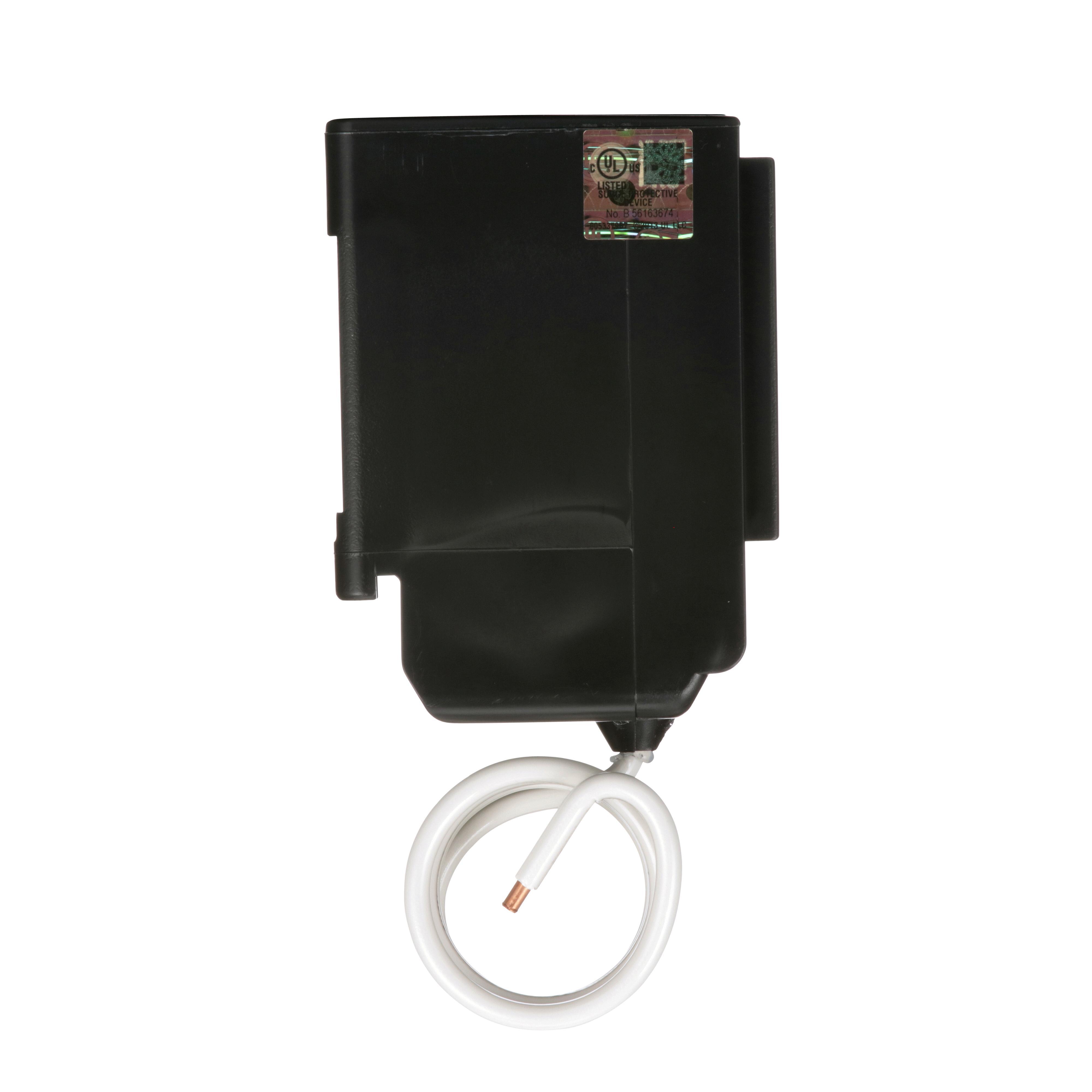

Description: Square D™, HOM2175SB, Surge Protection Module, 2-Space Secondary SPD Type 2, 175 V AC Electrical Rating, 50/60 Hz Frequency, 3 Wires, 22 kA Short Circuit, 22.5 kA Peak Surge Current, 150/300 VAC Clamping, LED Indicator, 1 ph, Environmental Conditions: 149 deg F Operating Temperature, NEMA 1 Enclosure, Plastic, 2 in W x 2.6 in D x 3.7 in H Dimensions

Manufacturer PN: HOM2175SB

UPC:  78590121090

Kendall Electric Inc PN: 3999768

Invoice Description:

HOM2175SB SQD LOAD CENTER HOM


SPEC SHEET

▸ See All in Surge Panel Protectors


How Can We Make This Page Better?

Square D™ HOM2175SB 2-Space Secondary SPD Type 2 Surge Protection Module, Electrical Ratings: 175 V AC, 50/60 Hz, 22 kA Short Circuit, 1 Phase

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™ Load Center Surge Protective Devices (SPDs) are plug-in units designed for fast and straightforward installation. The surge suppressors use two pole spaces in a Load center. SPD are single phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. This Surgebreaker is a secondary surge arrestor for Homeline load centers. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Securing up to 25kA surge current per phase. This surge protection device is UL Listed. It has a plug on design and requires two pole positions. The LED indicator indicates operational status. The HOM Surgebreaker is UL Listed.
Square D™, HOM2175SB, Surge Protection Module, 2-Space Secondary SPD Type 2, 175 V AC Electrical Rating, 50/60 Hz Frequency, 3 Wires, 22 kA Short Circuit, 22.5 kA Peak Surge Current, 150/300 VAC Clamping, LED Indicator, 1 ph, Environmental Conditions: 149 deg F Operating Temperature, NEMA 1 Enclosure, Plastic, 2 in W x 2.6 in D x 3.7 in H Dimensions

Specifications

 Application For surge suppression of 1-phase, 3-wire, 120/240 VAC, 50/60 Hz electrical services and appliances and load centers and CSEDS
 Brand Name Square D
 Clamping Voltage 150/300 V AC
 Dimensions 2 in W x 2.6 in D x 3.7 in H
 Electrical Ratings 175 V AC
 Enclosure NEMA 1
 Environmental Conditions 149 deg F Operating Temperature
 Frequency Rating 50/60 Hz
 Indicator LED
 Manufacturer Part Number HOM2175SB
 Material Plastic
 Number of Wires 3
 PART NUMBER KEYWORDS HOM2175SB ; 8086498 ; 785901210900 ; 78590121090 ; 00785901210900 ; 0785901210900
 Peak Surge Current 22.5 kA
 Phase 1
 Short Circuit Current Rating 22 kA
 Standards/Approvals ANSI/IEEE C62.11-1987|CAN/CSA C223.1-87|cUL Listed|NEC 285|UL 1449|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
 Type 2-Space Secondary SPD Type 2

Features

▪ Quick plug on for easy installation
▪ Directly connected to the equipment bus for short lead lengths
▪ Single phase rated for 25 kA surge current
