Schneider Electric
  • HOM1224M100PRB SQD HOM OUTD 100A MB
  • HOM1224M100PRB SQD HOM OUTD 100A MB
  • HOM1224M100PRB SQD HOM OUTD 100A MB

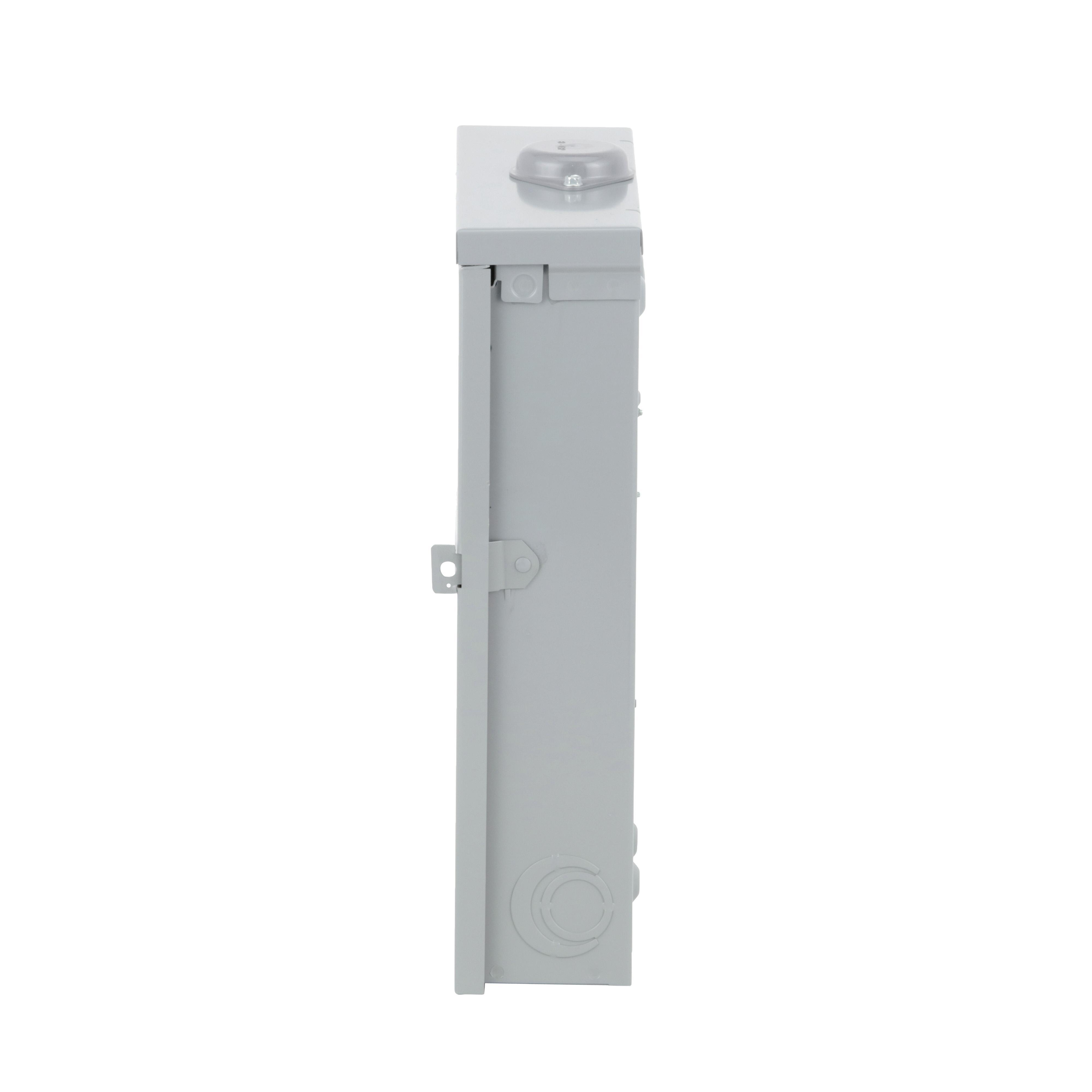

Description: Square D™ Homeline™ Main Breaker Loadcenter, 1-Phase Convertible Neutral Rainproof, 120/240 V AC, 100 A, 1 Pole, 50/60 Hz Frequency, 22 kA Interrupt, 24 Circuits, HOM Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 12 Spaces, 6 to 1 AWG, 6 to 2/0 AWG Wire, Plug-On Mounting, NEMA 3R Enclosure, Steel Housing Material, 14.75 in W x 4.52 in D x 18.92 in H Dimensions

Manufacturer PN: HOM1224M100PRB

UPC:  78590186119

Kendall Electric Inc PN: 3962704

Invoice Description:

HOM1224M100PRB SQD HOM OUTD 100A MB


SPEC SHEET

▸ See All in Single Phase Main Breaker Load Centers


How Can We Make This Page Better?

Square D™ Homeline™ HOM1224M100PRB 1-Phase Convertible Neutral Rainproof Main Breaker Loadcenter, 120/240 V AC, 100 A, 1 Pole, 22 kA Interrupt

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 100A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 12 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1 AWG copper or 6 AWG to 2/0 AWG aluminum wire. This Homeline load center has a height of 18.92 inches, a width of 14.75 inches, and depth of 4.52 inches. Homeline load centers are UL Listed.
Square D™ Homeline™ Main Breaker Loadcenter, 1-Phase Convertible Neutral Rainproof, 120/240 V AC, 100 A, 1 Pole, 50/60 Hz Frequency, 22 kA Interrupt, 24 Circuits, HOM Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 12 Spaces, 6 to 1 AWG, 6 to 2/0 AWG Wire, Plug-On Mounting, NEMA 3R Enclosure, Steel Housing Material, 14.75 in W x 4.52 in D x 18.92 in H Dimensions

Specifications

 Amperage Rating 100 A
 Application For outdoor, residential, commercial, industrial requirements to protect electrical systems, equipment and people
 Brand Name Square D
 Breaker Mounting Panel
 Breaker Type HOM

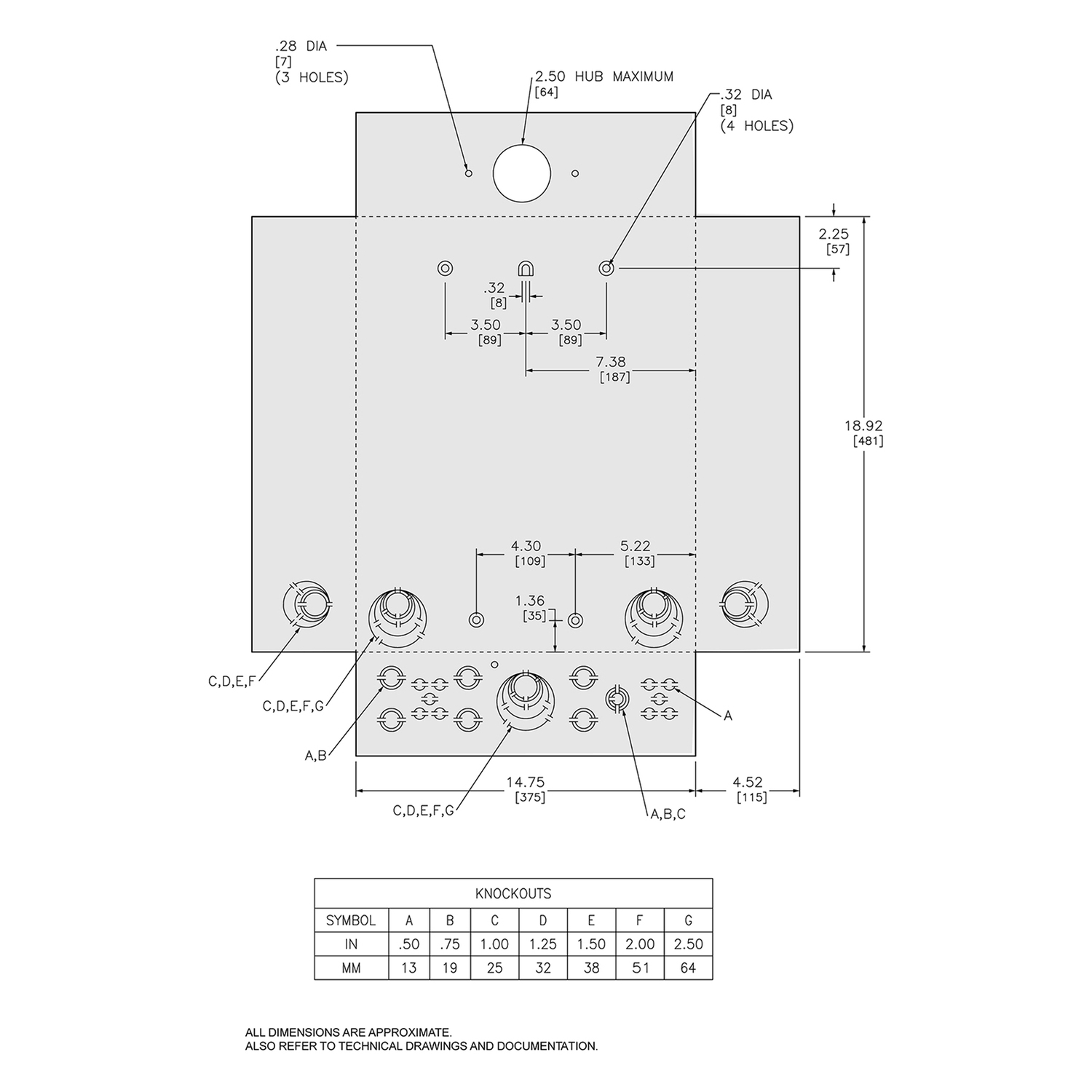

 Dimensions 14.75 in W x 4.52 in D x 18.92 in H
 Enclosure NEMA 3R
 Frequency Rating 50/60 Hz
 Housing Material Steel
 Includes Rainproof Cover
 Manufacturer Part Number HOM1224M100PRB
 Mounting Type Plug-On
 Number of Circuits 24
 Number of Poles 1
 Number of Spaces 12
 PART NUMBER KEYWORDS HOM1224M100PRB ; 8063635 ; 785901861195 ; 78590186119 ; 00785901861195 ; 0785901861195
 Standards/Approvals RoHS Compliant|Buy American Act Compliant|UL File No. E6294|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Type 1-Phase Convertible Neutral Rainproof
 Video Links
 Voltage Rating 120/240 V AC
 Wiring Configuration 3-Wire

Features

▪ Fast installation, reliability, and superior circuit protection
▪ Protects against equipment overloads and short-circuits
▪ Tin and copper plated aluminum bus bars
▪ Replacement covers in gray and white
▪ Distributed neutral bars keeps wiring tidy
▪ Compatible with Wiser Energy Smart Home Monitor to monitor and manage your energy usage
