Schneider Electric
  • HOM1224M100PC SQD HOM INDR 100A MB
  • HOM1224M100PC SQD HOM INDR 100A MB
  • HOM1224M100PC SQD HOM INDR 100A MB
  • HOM1224M100PC SQD HOM INDR 100A MB

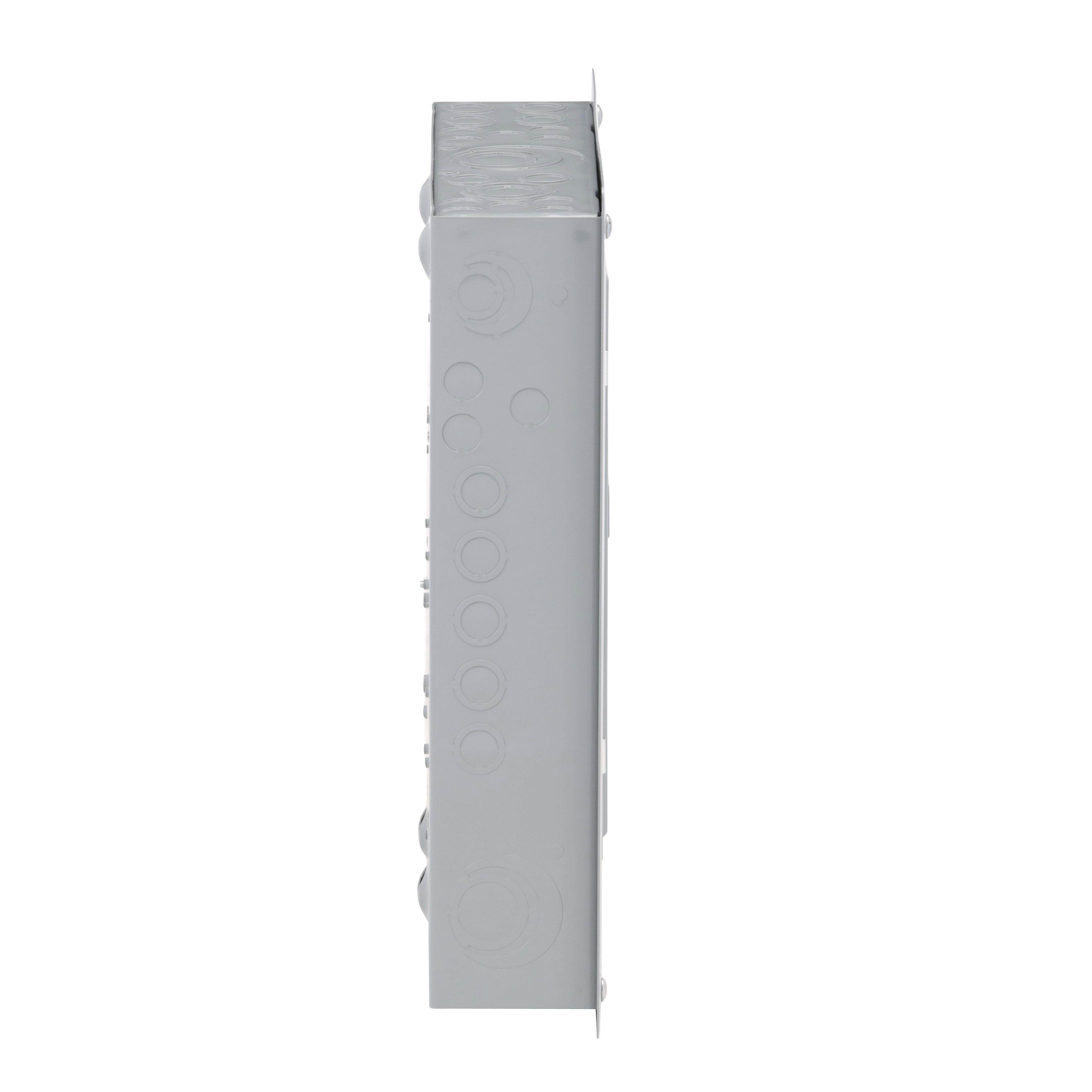

Description: Square D™ Homeline™ Main Breaker Loadcenter, 1-ph Convertible Neutral, 120/240 VAC, 100 A, 1 Pole, 50/60 Hz, 22 kA Interrupt, 24 Circuits, Panel Breaker Mounting, 3-Wire Wiring Configuration, 12 Spaces, 6 to 2/0 AWG Wire, Flush/Plug-On Mount, NEMA 1, 6 Enclosure Box, Steel Housing, 14.25 in W x 3.75 in D x 17.92 in H

Manufacturer PN: HOM1224M100PC

UPC:  78590186354

Kendall Electric Inc PN: 3962683

Invoice Description:

HOM1224M100PC SQD HOM INDR 100A MB


SPEC SHEET

▸ See All in Single Phase Main Breaker Load Centers


How Can We Make This Page Better?

Square D™ Homeline™ HOM1224M100PC 1-ph Convertible Neutral Main Breaker Loadcenter, 120/240 VAC, 100 A, 1 Pole, 22 kA Interrupt

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™ Homeline™ Main Breaker Loadcenter, 1-ph Convertible Neutral, 120/240 VAC, 100 A, 1 Pole, 50/60 Hz, 22 kA Interrupt, 24 Circuits, Panel Breaker Mounting, 3-Wire Wiring Configuration, 12 Spaces, 6 to 2/0 AWG Wire, Flush/Plug-On Mount, NEMA 1, 6 Enclosure Box, Steel Housing, 14.25 in W x 3.75 in D x 17.92 in H

Specifications

 Amperage Rating 100 A
 Application For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people
 Brand Name Square D
 Breaker Mounting Panel
 Dimensions 14.25 in W x 3.75 in D x 17.92 in H
 Enclosure NEMA 1
 Enclosure Box Size 6
 Frequency Rating 50/60 Hz
 Housing Material Steel
 Includes Combination Flush/Surface Cover
 Manufacturer Part Number HOM1224M100PC
 Mounting Type Flush/Plug-On
 Number of Circuits 24
 Number of Poles 1
 Number of Spaces 12
 Standards/Approvals RoHS Compliant|Buy American Act Compliant|UL File No. E6294|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Type 1-ph Convertible Neutral
 Video Links
 Voltage Rating 120/240 VAC
 Wiring Configuration 3-Wire

Features

▪ Tin plated aluminum bus construction on main lug or main circuit breaker panels
▪ Service entrance equipment capable panels
▪ Straight in wiring to help minimize service cable installations
▪ Single captive screw interior mounting on indoor panels to ease removal
▪ New side hinge doors on outdoor convertible main panels
▪ Outdoor panel covers are lockable with padlock
▪ Gray baked enamel electrodeposited over cleaned, phosphatized steel
▪ Top or bottom feed by rotating convertible mains panels 180 deg
▪ Lug electrical connection
