Schneider Electric
  • HOM115PDF SQD MINIATURE CIRCUIT
  • HOM115PDF SQD MINIATURE CIRCUIT
  • HOM115PDF SQD MINIATURE CIRCUIT
  • HOM115PDF SQD MINIATURE CIRCUIT

Description: Square D™ Homeline™ Combination Miniature Circuit Breaker, Dual Function, 120 V AC, 15 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Clamp Connection, 14 to 8/14 to 10 AWG Wire, NEMA 1/2 Enclosure, Plug-In Mounting, 40 deg C, 2.98 in L x 1 in W x 3.13 in H Dimensions

Manufacturer PN: HOM115PDF

UPC:  78590197851

Kendall Electric Inc PN: 3962702

Invoice Description:

HOM115PDF SQD MINIATURE CIRCUIT


SPEC SHEET

▸ See All in Combination Circuit Breakers


How Can We Make This Page Better?

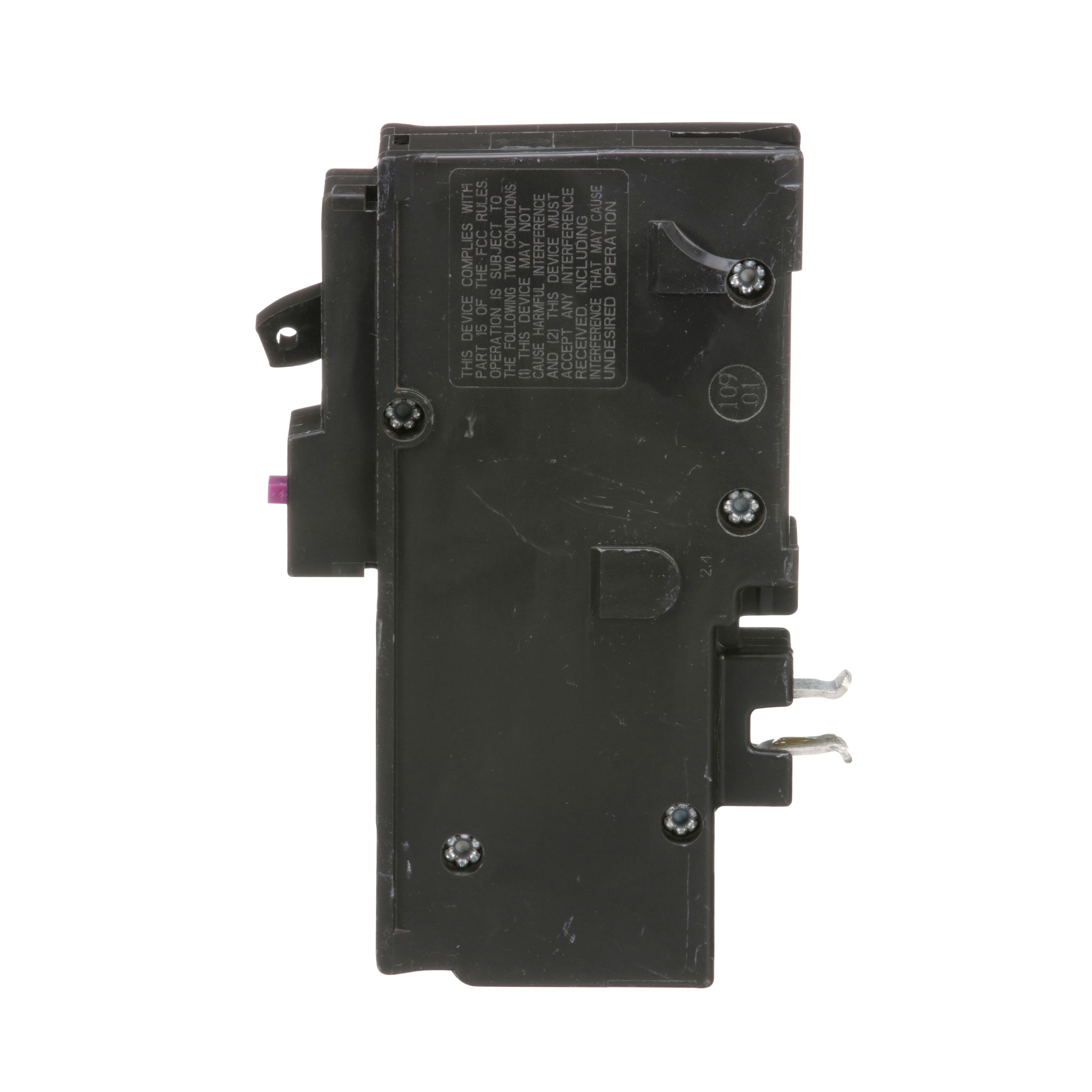

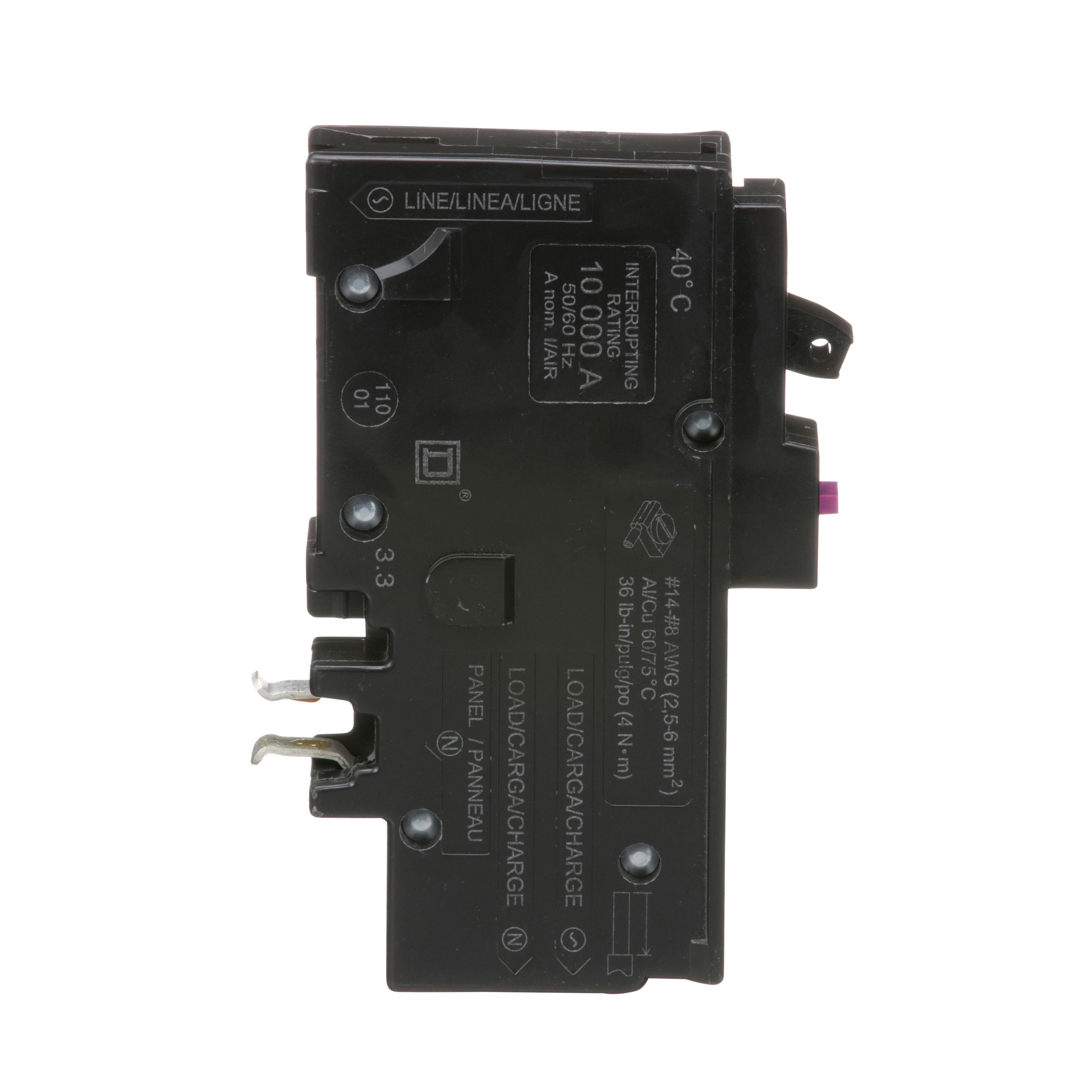

Square D™ Homeline™ HOM115PDF Dual Function Combination Miniature Circuit Breaker, 120 V AC, 15 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This dual function Homeline circuit breaker combines arc fault and ground fault circuit interrupters. This circuit breaker provides overload and short circuit protection, plus arc fault and ground fault protection in a single device in accordance with the NEC, UL1699 and UL943. This breaker has a plug on neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
Square D™ Homeline™ Combination Miniature Circuit Breaker, Dual Function, 120 V AC, 15 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Clamp Connection, 14 to 8/14 to 10 AWG Wire, NEMA 1/2 Enclosure, Plug-In Mounting, 40 deg C, 2.98 in L x 1 in W x 3.13 in H Dimensions

Specifications

 Amperage Rating 15 A
 Application For AC systems and providing overload and short circuit protection
 Brand Name Square D
 Connection Type Clamp

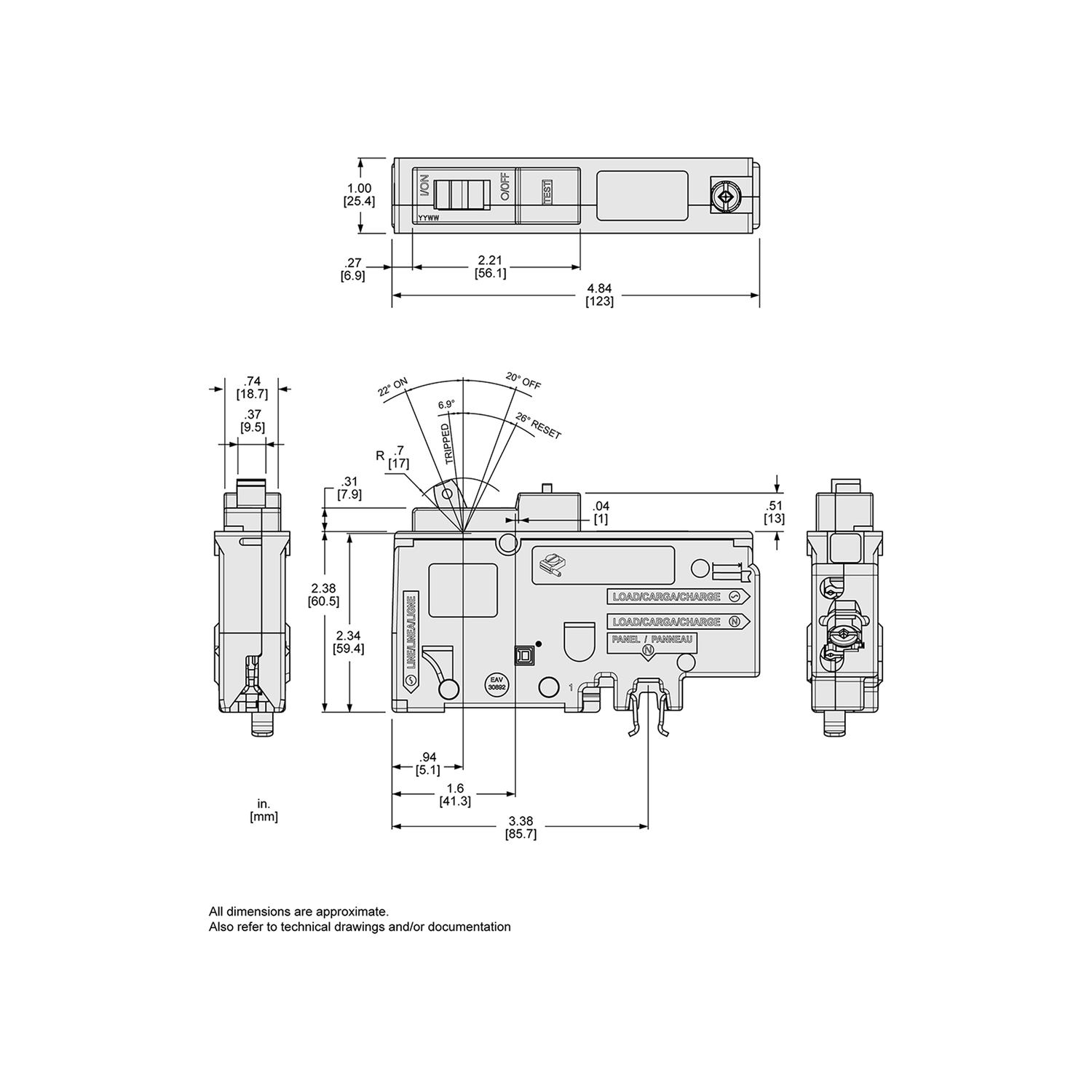

 Dimensions 2.98 in L x 1 in W x 3.13 in H
 Enclosure NEMA 1/2
 Frequency Rating 50/60 Hz
 Manufacturer Part Number HOM115PDF
 Mounting Type Plug-In
 Number of Poles 1
 PART NUMBER KEYWORDS HOM115PDF ; 12972870 ; 785901978510 ; 78590197851 ; 00785901978510 ; 0785901978510
 Phase 1
 Standards/Approvals Buy American Act Compliant|CSA Certified|Federal Specifications WP115B|NEMA Compliant|RoHS Compliant|UL File No. E6294|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
 Temperature Rating 40 deg C
 Type Dual Function
 Video Links
 Voltage Rating 120 V AC

Features

▪ Homeline GFCI MCB are designed to protect against irregular electrical current
▪ Compatible with Homeline electrical panel and CSEDs
▪ Protects against overload, short curcuits, and ground faults with a current greater than 6mA
