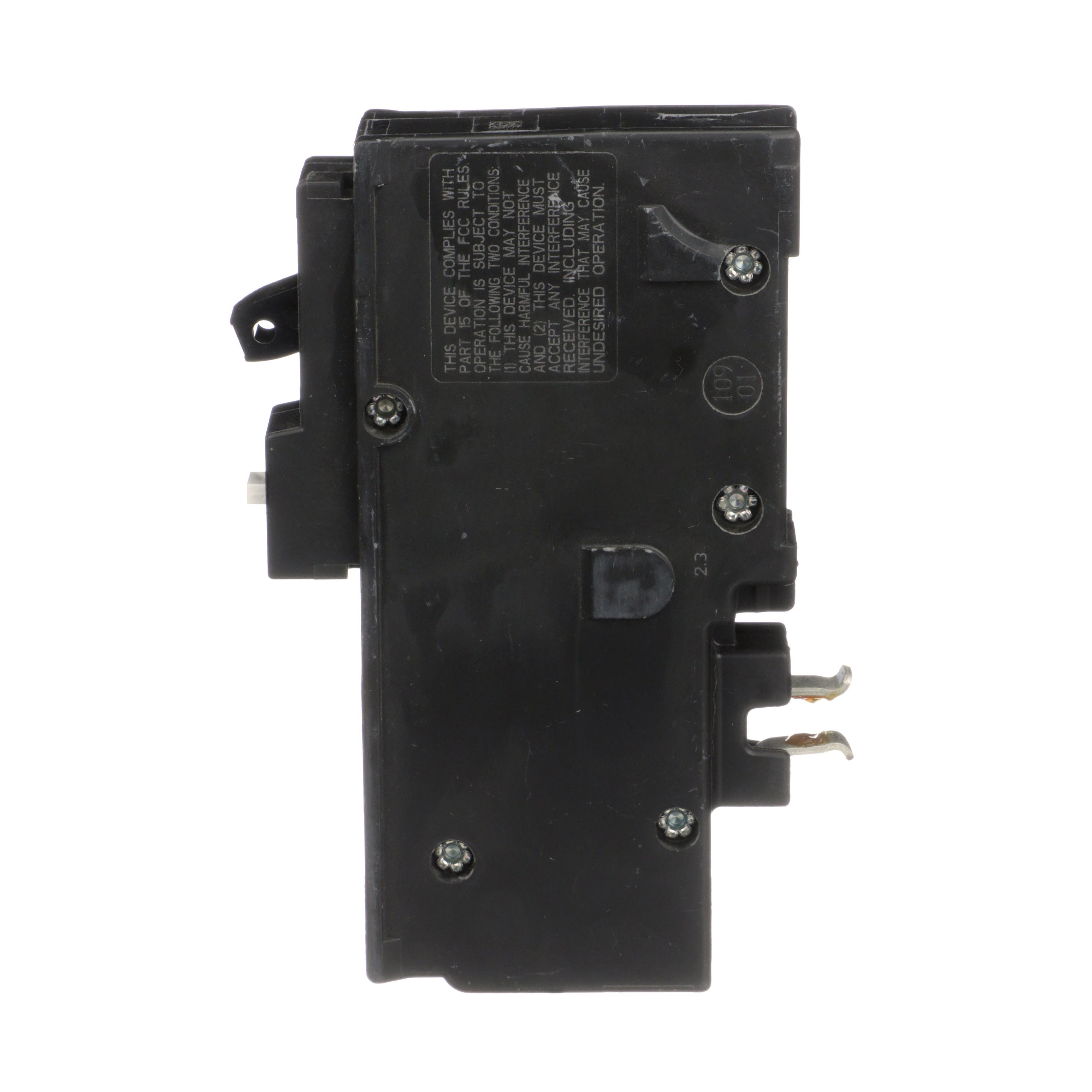

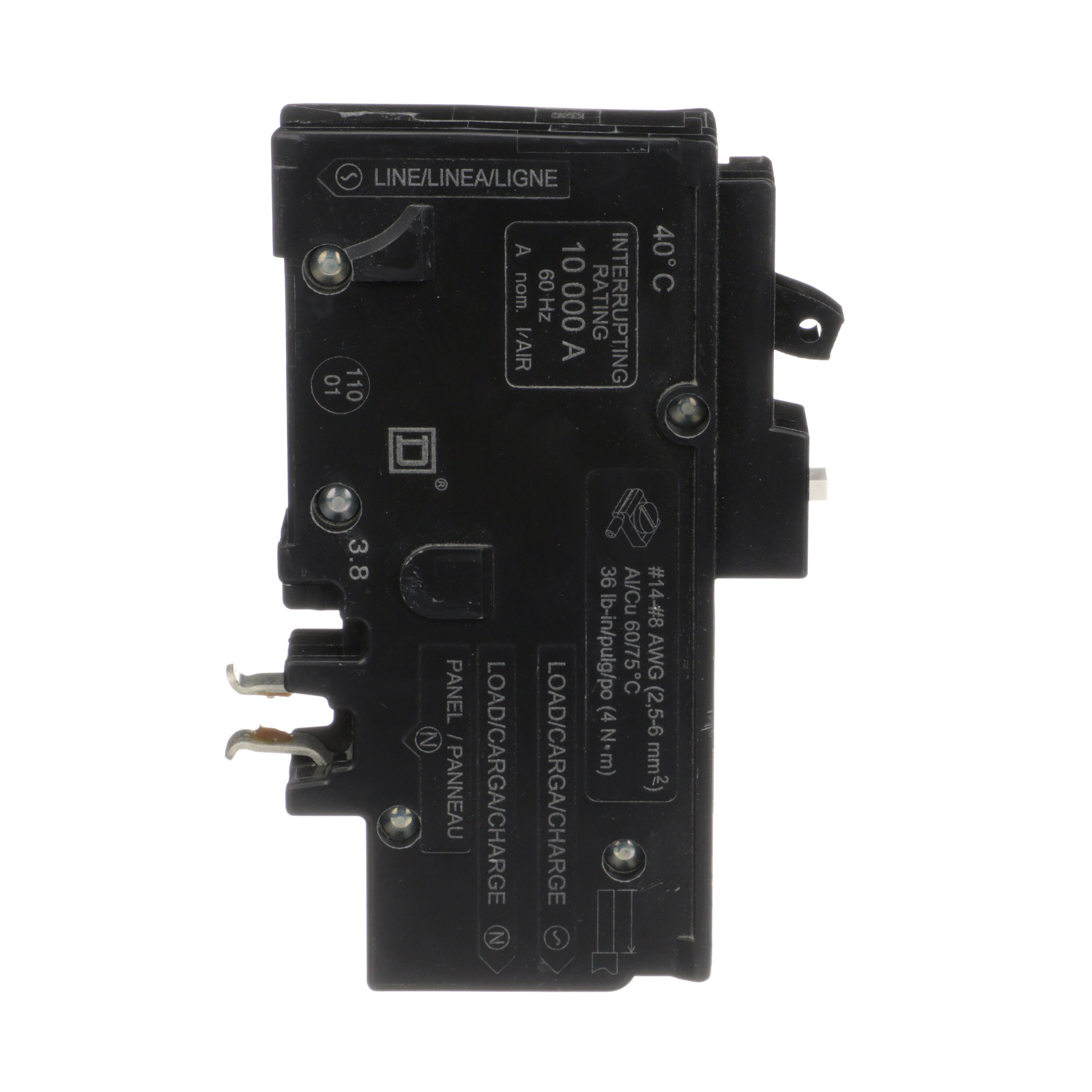

Description: Square D™ HomeLine™ Combination Arc Fault Circuit Breaker, Type HOM, 120/240 V AC, 15 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Terminal Screw, 14 to 8 AWG Wire, Plug-In Mount, 104 deg F, 2.98 in L x 1 in W x 3.13 in H

Manufacturer PN: HOM115PCAFI

UPC:  78590195080

Kendall Electric Inc PN: 3962701

Invoice Description:

HOM115PCAFI SQD MINIATURE CIRCUIT


SPEC SHEET

▸ See All in Combination Circuit Breakers


How Can We Make This Page Better?

Square D™ HomeLine™ HOM115PCAFI Type HOM Combination Arc Fault Circuit Breaker, 120/240 V AC, 15 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. Homeline combination arc fault circuit interrupters provide overload and short circuit protection, plus arc fault protection in accordance with the NEC and UL1699. This breaker has a plug on neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed. HOM Homeline miniature circuit breakers are UL Listed.
Square D™ HomeLine™ Combination Arc Fault Circuit Breaker, Type HOM, 120/240 V AC, 15 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Terminal Screw, 14 to 8 AWG Wire, Plug-In Mount, 104 deg F, 2.98 in L x 1 in W x 3.13 in H

Specifications

 Amperage Rating 15 A
 Application For Homeline™ load centers, residential and light commercial circuit protection, 1-phase applications, ground fault protection, overload, short circuit protection and series and parallel arc fault protection
 Brand Name Square D
 Connection Type Terminal Screw
 Dimensions 2.98 in L x 1 in W x 3.13 in H
 Frequency Rating 50/60 Hz
 Manufacturer Part Number HOM115PCAFI
 Mounting Type Plug-In
 Number of Poles 1
 PART NUMBER KEYWORDS HOM115PCAFI ; 12964786 ; 785901950806 ; 78590195080 ; 00785901950806 ; 0785901950806
 Phase 1
 Standards/Approvals Buy American Act Compliant|CSA Certified|ECCN EAR99|HACR Rated|NEMA Compliant|RoHS Compliant|UL 1699|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
 Temperature Rating 104 deg F
 Type Type HOM
 Video Links
 Voltage Rating 120/240 V AC

Features

▪ Homeline MCBs provide value through their ease in installation, reliability, and superior circuit protection
▪ Designed to protect against equipment overloads and short-circuits
▪ Easy plug on design with SE Homeline Loadcenters
