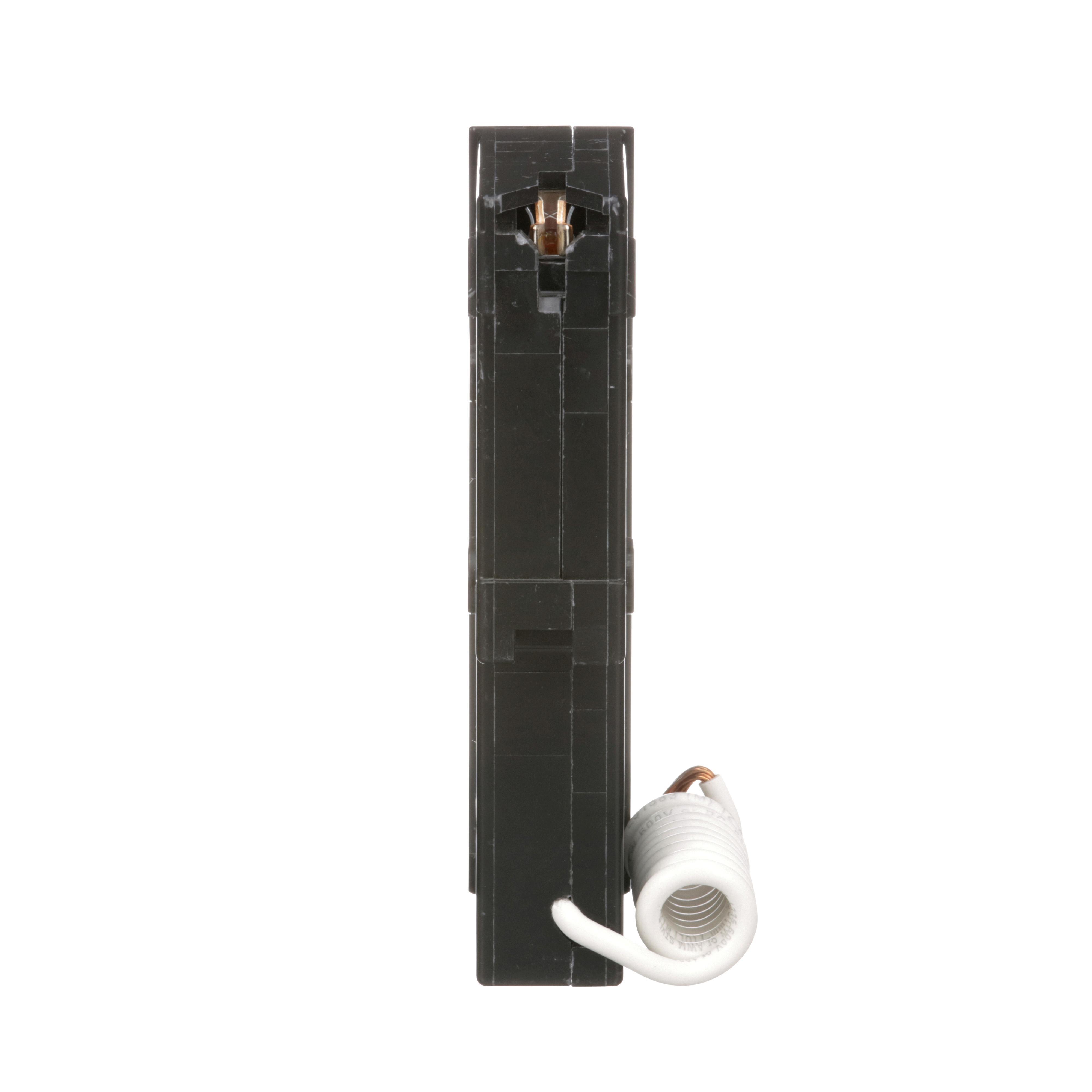

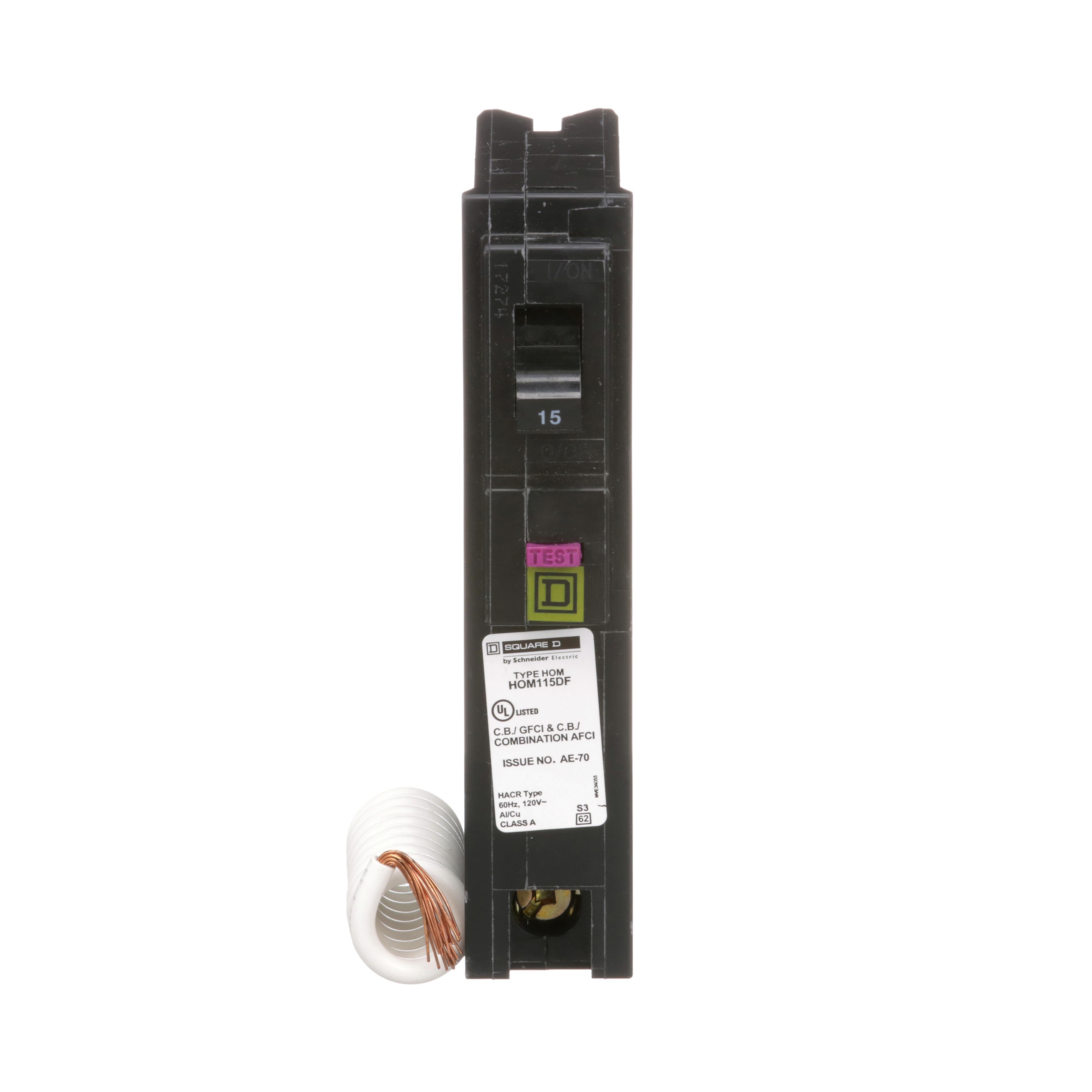

Description: Square D™ Homeline™ Miniature Circuit Breaker, 120 V AC, 15 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, Clamp, 14 to 8 AWG, 14 to 10 AWG Wire, NEMA 1/2, Plug-On Mount, 75 deg C, 2.98 in L x 1 in W x 3.13 in H

Manufacturer PN: HOM115DF

UPC:  78590174132

Kendall Electric Inc PN: 3999749

Invoice Description:

HOM115DF SQD MINIATURE CIRCUIT


SPEC SHEET

▸ See All in Combination Circuit Breakers


How Can We Make This Page Better?

Square D™ Homeline™ HOM115DF Miniature Circuit Breaker, 120 V AC, 15 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This dual function Homeline circuit breaker combines arc fault and ground fault circuit interrupters. This circuit breaker provides overload and short circuit protection, plus arc fault and ground fault protection in a single device in accordance with the NEC, UL1699 and UL943. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
Square D™ Homeline™ Miniature Circuit Breaker, 120 V AC, 15 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, Clamp, 14 to 8 AWG, 14 to 10 AWG Wire, NEMA 1/2, Plug-On Mount, 75 deg C, 2.98 in L x 1 in W x 3.13 in H

Specifications

 Amperage Rating 15 A
 Application For providing overload and short circuit protection
 Brand Name Square D
 Connection Type Clamp
 Dimensions 2.98 in L x 1 in W x 3.13 in H
 Enclosure NEMA 1/2
 Frequency Rating 50/60 Hz
 Manufacturer Part Number HOM115DF
 Mounting Type Plug-On
 Number of Poles 1
 PART NUMBER KEYWORDS HOM115DF ; 12342613 ; 785901741329 ; 78590174132 ; 00785901741329 ; 0785901741329
 Standards/Approvals Federal Specification W-P-115B|HACR Rated|NEC/CSA Certified|RoHS Compliant|UL File No. E6294|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Temperature Rating 75 deg C
 Video Links
 Voltage Rating 120 V AC

Features

▪ Homeline GFCI MCB are designed to protect against irregular electrical current
▪ Compatible with Homeline electrical panel and CSEDs
▪ Protects against overload, short curcuits, and ground faults with a current greater than 6mA
