Schneider Electric
  • HOM100ANCP SQD LOAD CENTER LUG KIT
  • HOM100ANCP SQD LOAD CENTER LUG KIT
  • HOM100ANCP SQD LOAD CENTER LUG KIT
  • HOM100ANCP SQD LOAD CENTER LUG KIT
  • HOM100ANCP SQD LOAD CENTER LUG KIT
  • HOM100ANCP SQD LOAD CENTER LUG KIT

Description: Square D™, HOM100ANCP, Lug Kit, 6 to 2/0 AWG Aluminium/Copper Conductor, For Use With: Homeline 100 A Load Center, 4.25 in Width, 1.88 in Height

Manufacturer PN: HOM100ANCP

UPC:  04756973534

Kendall Electric Inc PN: 4551805

Invoice Description:

HOM100ANCP SQD LOAD CENTER LUG KIT


SPEC SHEET

▸ See All in Load Center Lugs


How Can We Make This Page Better?

Square D™ HOM100ANCP Lug Kit, 6 to 2/0 AWG Aluminium/Copper, For Use With Homeline 100 A Load Center

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

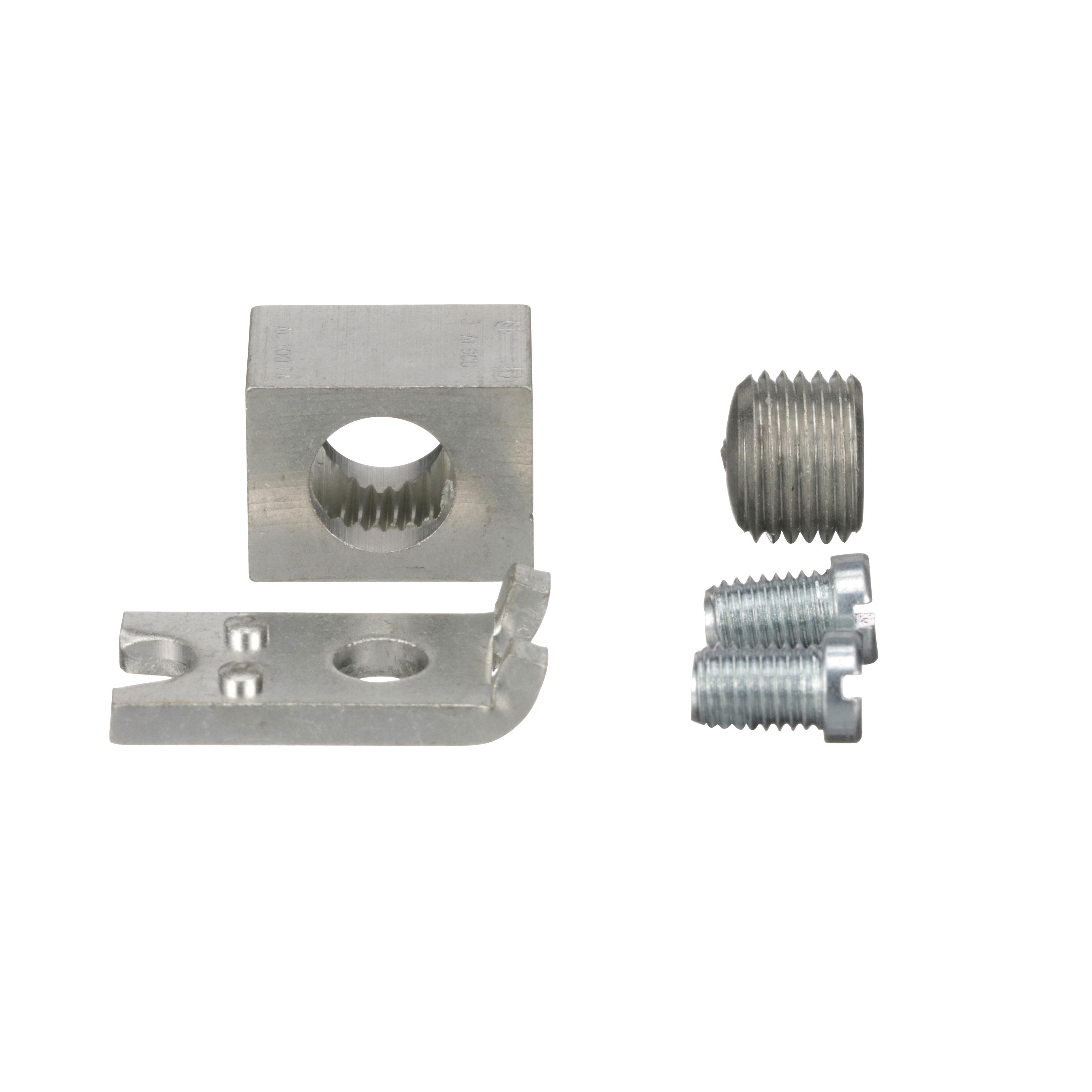

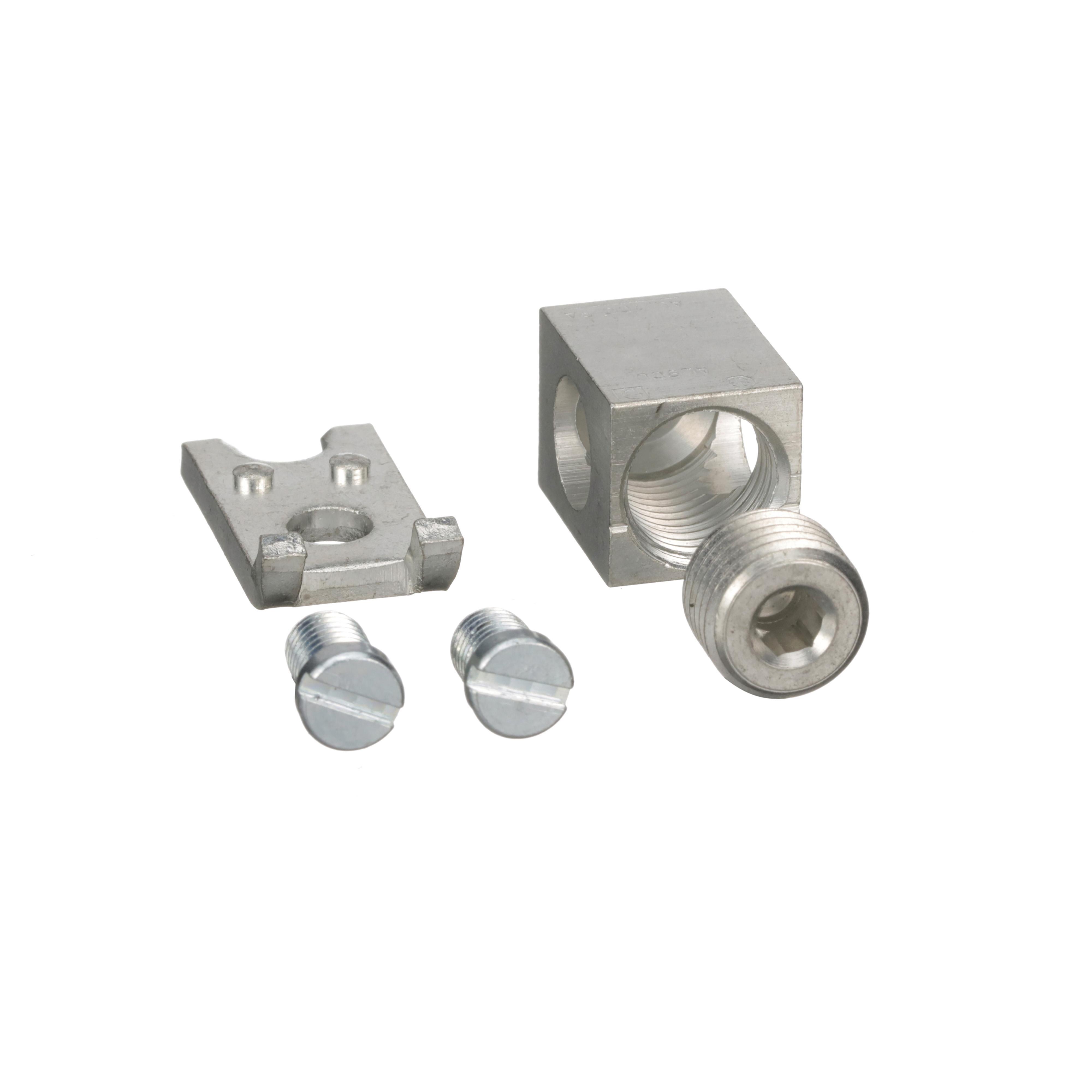

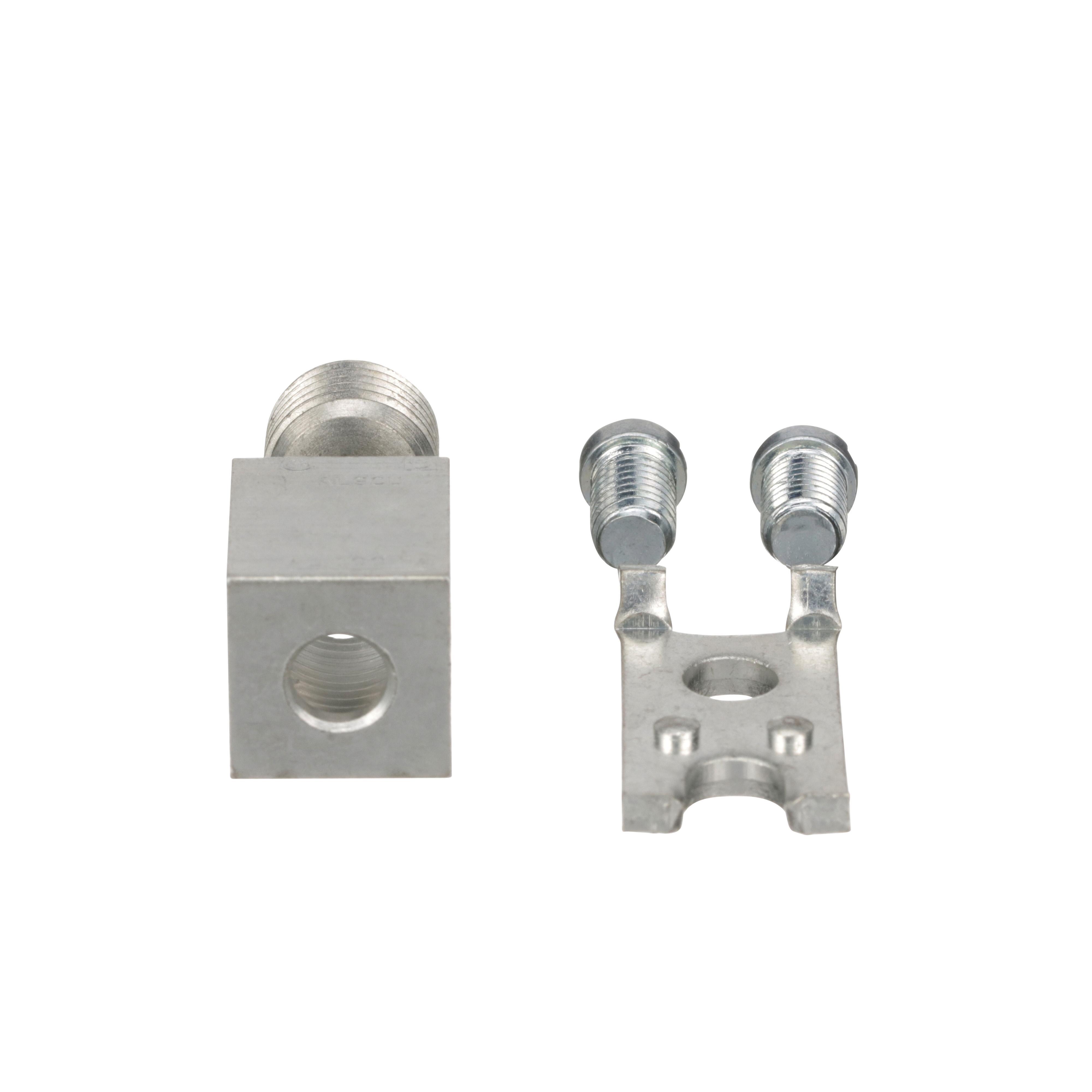

The Square D® Homeline® Load Centers and Circuit Breakers, HOM100ANCP are part of a comprehensive family of circuit protection solutions. Plug on neutral load main breakers centers with lug connections. Systems can be single or three phase and have indoor and outdoor versions. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This neutral lug kit contains the parts required to add a lug to the neutral bar of a Homeline load center. This unit is consumer packaged.
Square D™, HOM100ANCP, Lug Kit, 6 to 2/0 AWG Aluminium/Copper Conductor, For Use With: Homeline 100 A Load Center, 4.25 in Width, 1.88 in Height

Specifications

 Brand Name Square D
 Conductor Range 6 to 2/0 AWG Aluminium/Copper
 Height 1.88 in
 Manufacturer Part Number HOM100ANCP
 PART NUMBER KEYWORDS HOM100ANCP
 Standards/Approvals UL Listed
 Suitable For Use With Homeline 100 A Load Center
 Width 4.25 in

Features

▪ Homeline Plug-on Neutral Load centers are designed for fast installation, reliability, and superior circuit protection
▪ Compatible with any Square D Homeline Circuit Breaker
▪ The fully distributed neutral bar allows for Homeline plug-on neutral circuit breakers in any space
