| ▪ Espagnolette three point locking or 3 locks for 1000 mm high enclosures and above |
| ▪ Mounting plate, The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment |
| ▪ On the top and bottom there are holes to facilitate cable fixing |
| ▪ Fixed onto M8 press welded studs to the rear of the enclosure |
| ▪ All sides, from 800 mm and above, are strengthened by folded edges |
| ▪ By using the AMG accessory, the mounting plate position can be adjusted to any depth |
| ▪ Cable access, No gland plate openings as standard, to maximise sealing and cleanliness |
| ▪ Additional information, For outdoor environments, exposed to precipitation, the use of a rain hood is advised |
| ▪ Also in environments known for quick temperature changes, consideration to condensation should be taken |
| ▪ Please see the thermal management section |

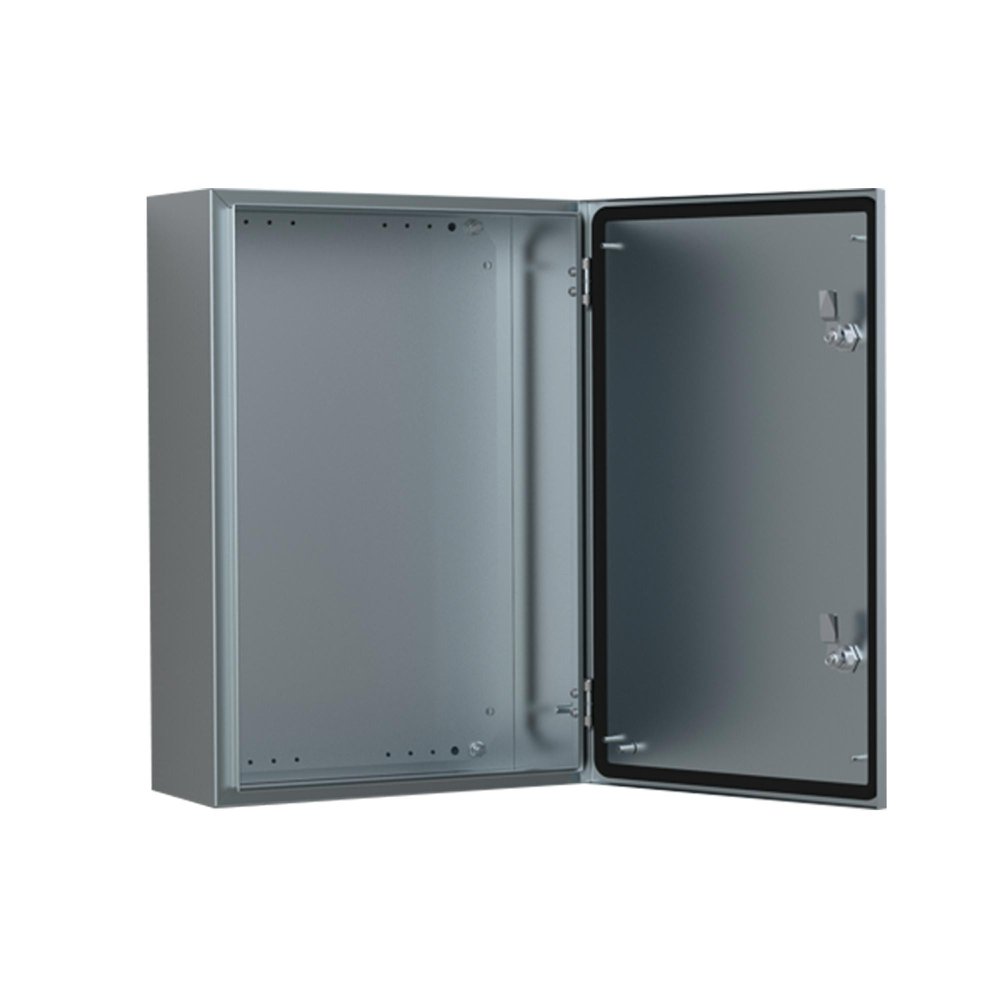

| ▪ Body, Folded and seam welded |
| ▪ For ease of installation, each back corner of the enclosure is laser-marked to precisely indicate where to drill holes and affix AWS wall mounting brackets |
| ▪ Door, Corner formed in one piece |
| ▪ Surface mounted, with 130 deg opening |
| ▪ Concealed AISI 304 stainless steel hinges with captive pin |
| ▪ Can be mounted to allow left or right hand opening |
| ▪ For AISI 316L, sealing is ensured by an injected silicone gasket |
| ▪ Inner M6 welded studs, to mount optional door profiles MMDP |
| ▪ Lock - nVent HOFFMAN customized zamak double-bit 3 mm lock, with 90 deg movement and anti-vibration mechanism |
