HMDLDC3800F CH HMDL 3 POLE 800 AMP FRAME FOR DC APPLICATION

Mouse over image to zoom, click to enlarge

  • HMDLDC3800F CH HMDL 3 POLE 800 AMP FRAME FOR DC APPLICATION
  • HMDLDC3800F CH HMDL 3 POLE 800 AMP FRAME FOR DC APPLICATION

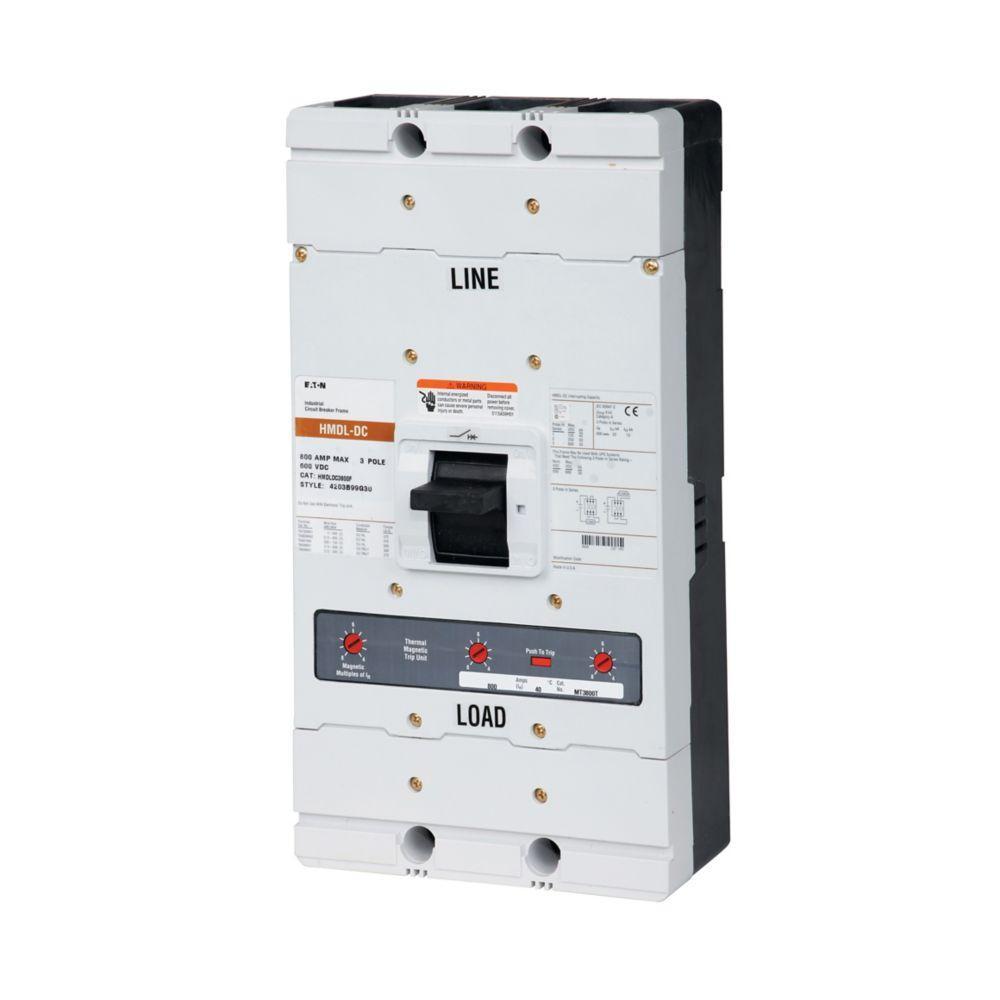

Description: EATON Molded Case Circuit Breaker, Type HMDLDC Frame Only, Series: C Series, 600 V DC, 800 A, 35/42 kA Interrupt, MDL Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Line/Load Connection, 3/0 AWG to 400 kcmil Wire, 40 deg C, 4.06 x 8.25 x 8.25 in Dimensions

Manufacturer PN: HMDLDC3800F

UPC:  78211485964

Kendall Electric Inc PN: 4770531

Invoice Description:

HMDLDC3800F CH HMDL 3 POLE 800 AMP FRAME FOR DC APPLICATION


SPEC SHEET

▸ See All in Breaker Frames


How Can We Make This Page Better?

EATON HMDLDC3800F C Series Type HMDLDC Frame Only Molded Case Circuit Breaker, 600 V DC, 800 A, 35/42 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Eaton's DC and PVGard molded case circuit breakers are engineered to address the highest performance requirements while providing numerous accessories to fit different site specifications.  Today’s DC circuit breakers have expanded applications including solar photovoltaics, electric vehicle charging stations, battery storage and UPS systems, as well as commercial and industrial DC distribution.
EATON Molded Case Circuit Breaker, Type HMDLDC Frame Only, Series: C Series, 600 V DC, 800 A, 35/42 kA Interrupt, MDL Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Line/Load Connection, 3/0 AWG to 400 kcmil Wire, 40 deg C, 4.06 x 8.25 x 8.25 in Dimensions

Specifications

 Amperage Rating 800 A
 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Connection Type Line/Load
 Dimensions 4.06 x 8.25 x 8.25 in
 Frame MDL
 Includes Frame
 Manufacturer Part Number HMDLDC3800F
 Number of Poles 3
 PART NUMBER KEYWORDS HMDLDC3800F ; 7426512 ; 782114859643 ; 78211485964 ; 00782114859643
 Phase 3
 Series C Series
 Standards/Approvals UL 489
 Temperature Rating 40 deg C
 Type Type HMDLDC Frame Only
 Video Links
 Voltage Rating 600 V DC

Features

▪ Patented contact design features high speed "blow-open" action, resulting in superior performance
▪ Circuit breakers significantly outperform the calculations listed in the institute of electrical and electronic engineers (IEEE) standard 1584, guide for performing arc flash hazard calculations
▪ 35 kA at 600 VAC, 42 kA at 125 VDC interrupt rating
