Eaton

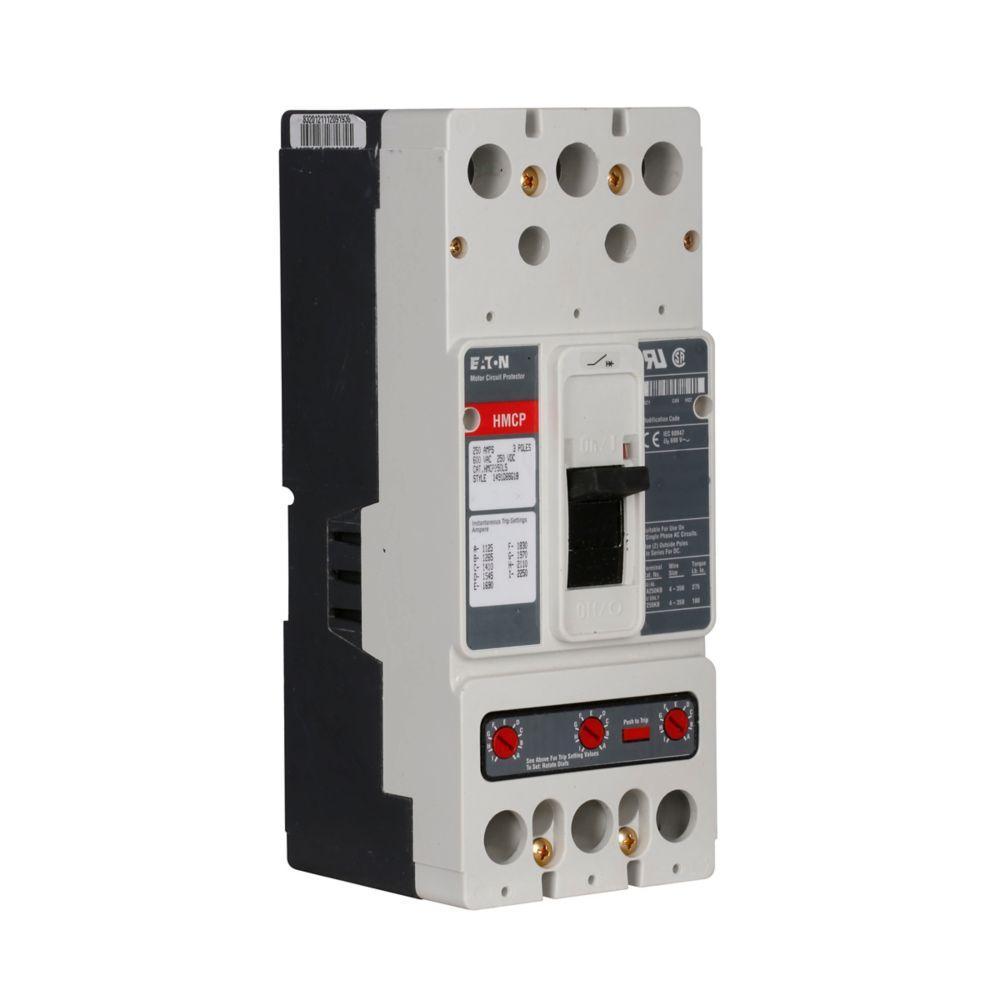

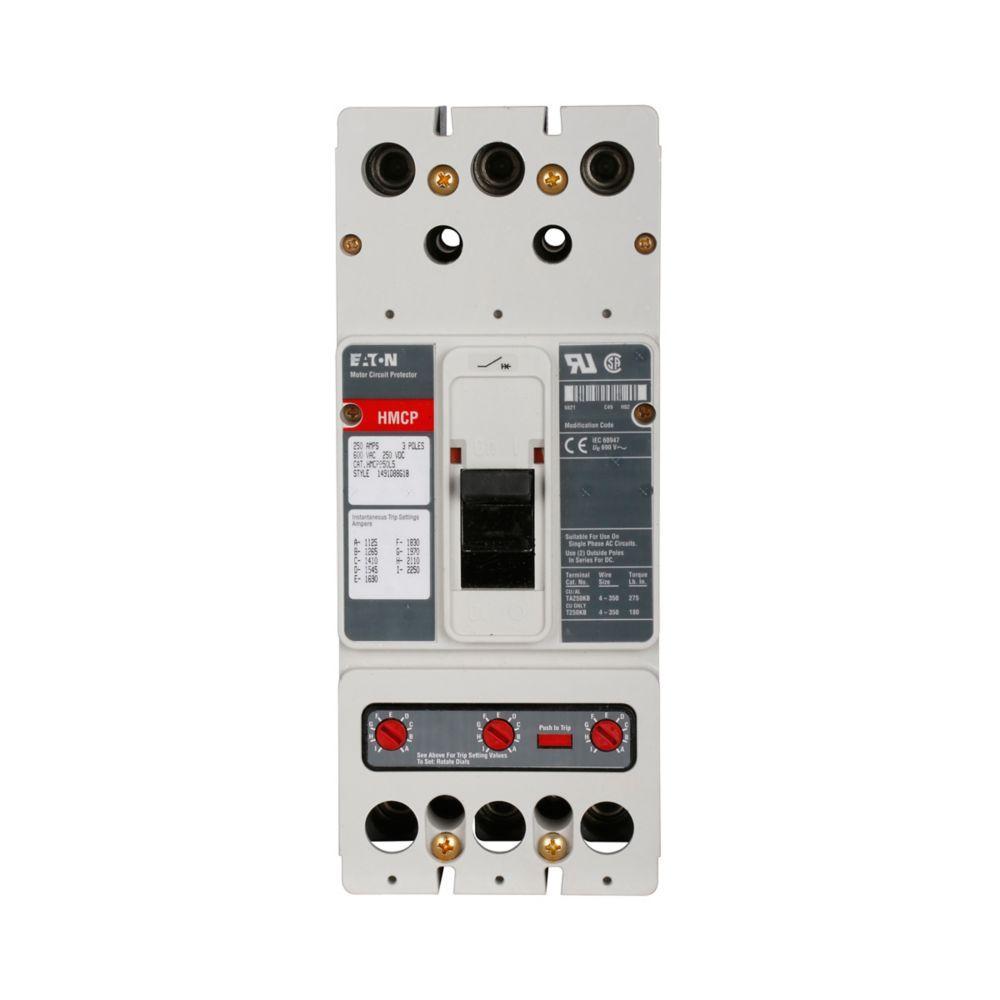

HMCP250W5WA02S30 CH Series C J-Frame Motor Circuit Protector 78667907187 J-Frame Motor Circuit Protector 78667907187

Mouse over image to zoom, click to enlarge

  • HMCP250W5WA02S30 CH Series C J-Frame Motor Circuit Protector 78667907187 J-Frame Motor Circuit Protector 78667907187
  • HMCP250W5WA02S30 CH Series C J-Frame Motor Circuit Protector 78667907187 J-Frame Motor Circuit Protector 78667907187
  • HMCP250W5WA02S30 CH Series C J-Frame Motor Circuit Protector 78667907187 J-Frame Motor Circuit Protector 78667907187

Description: EATON Motor Protection Circuit Breaker, HMCP, Series: C Series, 600 VAC, 250 VDC, 250 A, F Frame, Magnetic Trip, 1250 to 2500 A Trip, 3 Pole, Line/Load Connection, 1A-1B Auxiliary, NEMA 5 Enclosure

Manufacturer PN: HMCP250W5WA02S30

UPC:  78667907187

Kendall Electric Inc PN: 2130386

Invoice Description:

HMCP250W5WA02S30 CH Series C J-Frame Motor Circuit Protector 78667907187 J-Frame Motor Circuit Protector 78667907187


SPEC SHEET

▸ See All in Motor Protection Circuit Breakers


How Can We Make This Page Better?

EATON HMCP250W5WA02S30 C Series HMCP Motor Protection Circuit Breaker, 600 VAC, 250 VDC, 250 A, 3 Poles, Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton’s Electrical Sector under the Eaton brand offers the widest variety of molded case circuit breakers available today. Designed for electrical and machinery OEMs serving a range of industries and applications these proven designs incorporate the latest in innovation with the high reliability that has been our hallmark since the advent of the circuit breaker in the 1920s
EATON Motor Protection Circuit Breaker, HMCP, Series: C Series, 600 VAC, 250 VDC, 250 A, F Frame, Magnetic Trip, 1250 to 2500 A Trip, 3 Pole, Line/Load Connection, 1A-1B Auxiliary, NEMA 5 Enclosure

Specifications

 Amperage Rating 250 A
 Auxiliary Contact Rating 1A-1B
 Brand Name EATON
 Connection Type Line/Load
 Enclosure NEMA 5
 Frame F
 Manufacturer Part Number HMCP250W5WA02S30
 Number of Poles 3
 Series C Series
 Trip Range 1250 to 2500 A
 Type HMCP
 Video Links
 Voltage Rating 600 VAC/250 VDC

Features

▪ Convenient dial adjustment allows the user to select from eight different current levels for precise motor circuit protection
▪ High short circuit current ratings can be achieved without the need for fuses or additional limiters, reducing both space and spare parts requirements
▪ Motor inrush trip suppressor allows the starting of high efficiency motors without sacrificing sensitive levels of short circuit protection
▪ Clears low-level faults (the most common type of fault in a motor circuit) more effectively than fuses, preventing faults from cascading and damaging equipment
▪ Easily test without having to replace the device (unlike fusible devices) by depressing a push to trip mechanism on the cover

Resources

 Catalog
 Catalog Page
 Product Data Sheet
