Eaton

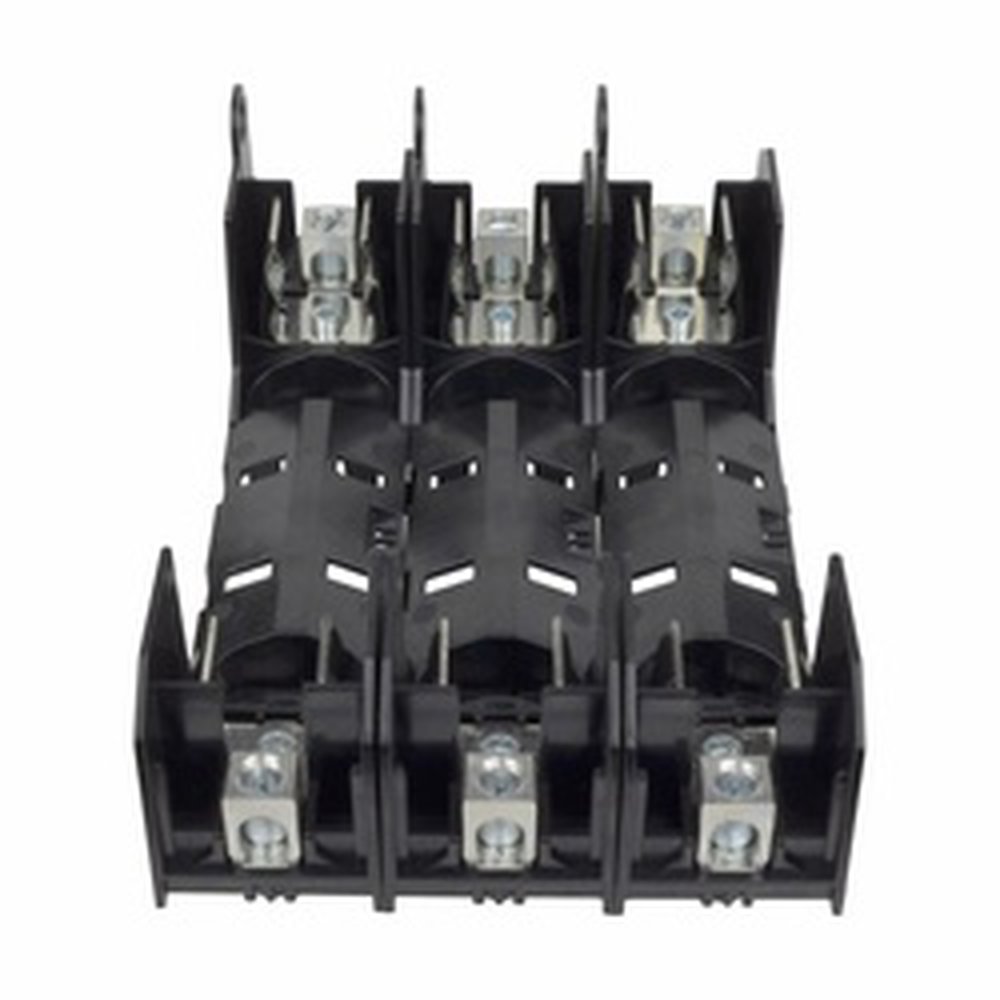

HM60060-3CR BUS FUSE BLOCK CLASS H, 600V 60A, 3 POLE

Mouse over image to zoom, click to enlarge

  • HM60060-3CR BUS FUSE BLOCK CLASS H, 600V 60A, 3 POLE
  • HM60060-3CR BUS FUSE BLOCK CLASS H, 600V 60A, 3 POLE
  • HM60060-3CR BUS FUSE BLOCK CLASS H, 600V 60A, 3 POLE
  • HM60060-3CR BUS FUSE BLOCK CLASS H, 600V 60A, 3 POLE

Description: Bussmann Fuse Block, Modular, Series: HM Series, 600 V, 35 to 60 A, 3 Pole, Class: H/K, Fuse Holder Code: Q, Box Lug, 14 to 2 AWG Cu, 8 to 2 AWG Al Wire, DIN Rail/Panel Mount, 5-1/2 in Fuse Length, 1.06 in Fuse Dia, -40 to 120 deg C, For Use With: NOS Series Fuse, Thermoplastic, 6.8 in L x 4.5 in W x 2.6 in H

Manufacturer PN: HM60060-3CR

UPC:  05171251159

Kendall Electric Inc PN: 3474369

Invoice Description:

HM60060-3CR BUS FUSE BLOCK CLASS H, 600V 60A, 3 POLE


SPEC SHEET

▸ See All in UL Class Power Fuse Blocks


How Can We Make This Page Better?

Bussmann HM60060-3CR Modular Fuse Block, 600 V, 35 to 60 A, Class: H/K, 14 to 2 AWG Cu, 8 to 2 AWG Al Wire, 3 Poles

Log In for Pricing and Availability




Description

Eaton’s Bussmann series power distribution fuse blocks (PDFB) combine a fuse block and power distribution block into one component. This patented design simplifies your panel layout and uses up to 57 less panel space. Additionally, it lowers inventory costs while reducing installation time and labor by 33. Bussmann series PDFBs are available for Class H(K) ferrule fuses. PDFBs up to 60 amps feature DIN-Rail and panel mount versatility for ease of installation.
Bussmann Fuse Block, Modular, Series: HM Series, 600 V, 35 to 60 A, 3 Pole, Class: H/K, Fuse Holder Code: Q, Box Lug, 14 to 2 AWG Cu, 8 to 2 AWG Al Wire, DIN Rail/Panel Mount, 5-1/2 in Fuse Length, 1.06 in Fuse Dia, -40 to 120 deg C, For Use With: NOS Series Fuse, Thermoplastic, 6.8 in L x 4.5 in W x 2.6 in H

Specifications

 Amperage Rating 35 to 60 A
 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name Bussmann
 Class H/K
 Connection Type Box Lug
 Dimensions 6.8 in L x 4.5 in W x 2.6 in H
 Fuse Diameter 1.06 in
 Fuse Holder Code Q
 Fuse Length 5-1/2 in
 Manufacturer Part Number HM60060-3CR
 Material Thermoplastic
 Mounting Type DIN Rail/Panel
 Number of Poles 3
 PART NUMBER KEYWORDS HM60060-3CR ; HM600603CR ; 13006190 ; 051712511599 ; 51712511599 ; 05171251159 ; 00051712511599
 Series HM Series
 Standards/Approvals UL Listed ,Contact Manufacturer ,CSA Certified,RoHS Compliant
 Suitable For Use With NOS Series Fuse
 Temperature Rating -40 to 120 deg C
 Type Modular
 Video Links
 Voltage Rating 600 V

Features

▪ To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for toolless assembly of multiple poles at point of use
▪ DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
▪ Save panel space with the smallest width dimension on the market
▪ Easy circuit identification with available universal marker labels for blocks and covers
