Eaton

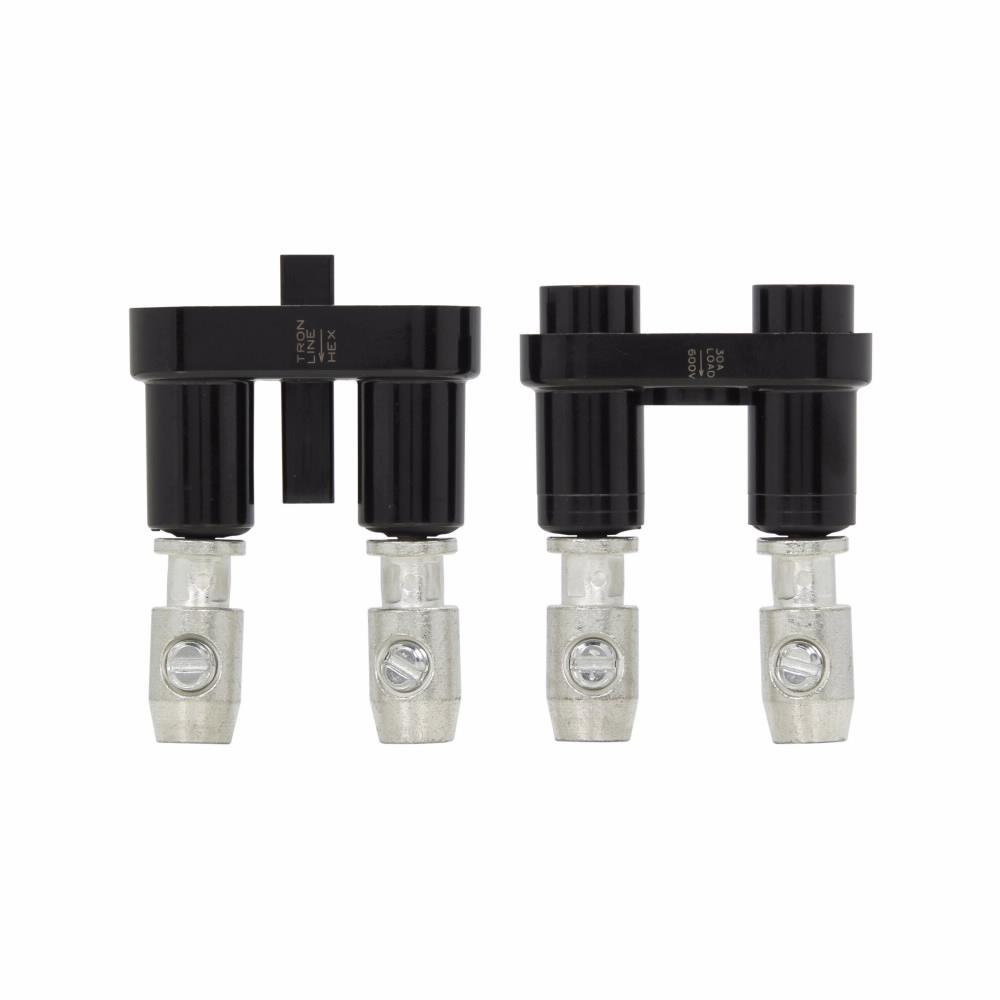

HEX-JK BUSSMANN BUSS FUSEHOLDER 05171216822

Mouse over image to zoom, click to enlarge

  • HEX-JK BUSSMANN BUSS FUSEHOLDER 05171216822
  • HEX-JK BUSSMANN BUSS FUSEHOLDER 05171216822
  • HEX-JK BUSSMANN BUSS FUSEHOLDER 05171216822

Description: Bussmann Tron™ Fuse Holder, In-Line Non-Breakaway Waterproof, 600 VAC, 30 A, 2 Poles, Class: Midget, Line/Load/Set Screw Terminal, 12 to 3 AWG Wire, 2-1/4 in Fuse Length, 13/32 in Fuse Dia, For Use With: SC and HWV Fuse

Manufacturer PN: HEX-JK

UPC:  05171216822

Kendall Electric Inc PN: 3487638

Invoice Description:

HEX-JK BUSSMANN BUSS FUSEHOLDER 05171216822


SPEC SHEET

▸ See All in In-Line Fuse Holders & Insulators


How Can We Make This Page Better?

Bussmann Tron™ HEX-JK In-Line Non-Breakaway Waterproof Fuse Holder, 600 VAC, 30 A, 12 to 3 AWG Wire, 2 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Bussmann Tron™ Fuse Holder, In-Line Non-Breakaway Waterproof, 600 VAC, 30 A, 2 Poles, Class: Midget, Line/Load/Set Screw Terminal, 12 to 3 AWG Wire, 2-1/4 in Fuse Length, 13/32 in Fuse Dia, For Use With: SC and HWV Fuse

Specifications

 Amperage Rating 30 A
 Brand Name Bussmann
 Class Midget
 Connection Type Line/Load/Set Screw Terminal
 Fuse Diameter 13/32 in
 Fuse Length 2-1/4 in
 Manufacturer Part Number HEX-JK
 Number of Poles 2
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant
 Suitable For Use With SC and HWV Fuse
 Type In-Line Non-Breakaway Waterproof
 Video Links
 Voltage Rating 600 V AC

Features

▪ (1) 12 to 3 AWG copper load side set screw terminal, (2) 12 to 3 AWG copper line side set screw terminal connection

Resources

 Catalog Page
 Product Data Sheet
