TPI Corporation

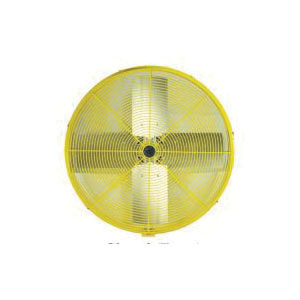

HDH24JR TPI 24" IND ASMBLD SUPER DUTY FAN - YLW

Mouse over image to zoom, click to enlarge

  • HDH24JR TPI 24" IND ASMBLD SUPER DUTY FAN - YLW
  • HDH24JR TPI 24" IND ASMBLD SUPER DUTY FAN - YLW
  • HDH24JR TPI 24" IND ASMBLD SUPER DUTY FAN - YLW

Description: TPI Air Circulator, 1-Phase Assembled Maximum Duty Standard, 24 in Blade, 5600 cfm High, 4900 cfm Low, 1100 rpm High, 800 rpm Low Speed, 1/2 hp Power, 120 V AC, 3.5 A, 2 Speed, Switch Control, Paddle Blade, Aluminum Blade, Split Capacitor Motor, Hinged Guard, Steel Housing Material, Ceiling/I-Beam/Surface Mounting, 27 in Dia x 14-1/2 in D Dimensions, Domestic

Manufacturer PN: HDH24JR

UPC:  68633487444

Kendall Electric Inc PN: 4573778

Invoice Description:

HDH24JR TPI 24" IND ASMBLD SUPER DUTY FAN - YLW


SPEC SHEET

▸ See All in Air Circulators


How Can We Make This Page Better?

TPI HDH24JR 1-Phase Assembled Maximum Duty Standard Air Circulator, 24 in Blade, 5600 cfm High, 4900 cfm Low Flow Rate, 120 V AC, 3.5 A

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

TPI Air Circulator, 1-Phase Assembled Maximum Duty Standard, 24 in Blade, 5600 cfm High, 4900 cfm Low, 1100 rpm High, 800 rpm Low Speed, 1/2 hp Power, 120 V AC, 3.5 A, 2 Speed, Switch Control, Paddle Blade, Aluminum Blade, Split Capacitor Motor, Hinged Guard, Steel Housing Material, Ceiling/I-Beam/Surface Mounting, 27 in Dia x 14-1/2 in D Dimensions, Domestic

Specifications

 Amperage Rating 3.5 A
 Application Indoor-Industrial Applications
 Blade Size 24 in
 Brand Name TPI
 Control Type Switch
 Dimensions 27 in Dia x 14-1/2 in D
 Domestic or Import Domestic
 Flow Rate 5600 cfm High, 4900 cfm Low
 Guard Type Hinged
 Housing Material Steel
 Manufacturer Part Number HDH24JR
 Motor Type Split Capacitor
 Mounting Type Ceiling/I-Beam/Surface
 Number of Speeds 2
 Power Rating 1/2 hp
 Speed 1100 rpm High, 800 rpm Low
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|cETLus Listed|OSHA Compliant|PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov
 Type 1-Phase Assembled Maximum Duty Standard
 Voltage Rating 120 V AC

Features

▪ Pedestal steel dome base is 27 in Dia and has 5 carriage bolts
▪ 7500 cfm/260 sq-ft area velocity profile
▪ Flow rate is measured 2 ft from face of fan

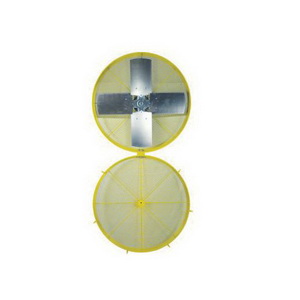

▪ Easy access hinged guard
▪ 18 in drop down, 2-speed switch
▪ Steel hub/spider aluminum paddle blades
▪ Powder coated steel guards
▪ Permanent split capacitor, ball bearing, totally enclosed and permanently lubricated motor
▪ #48 motor frame
▪ 1/2 in Dia shaft motor
▪ Motor drive
▪ Pedestal pole adjusts the center of the fan from 48 to 67 in
