Schneider Electric

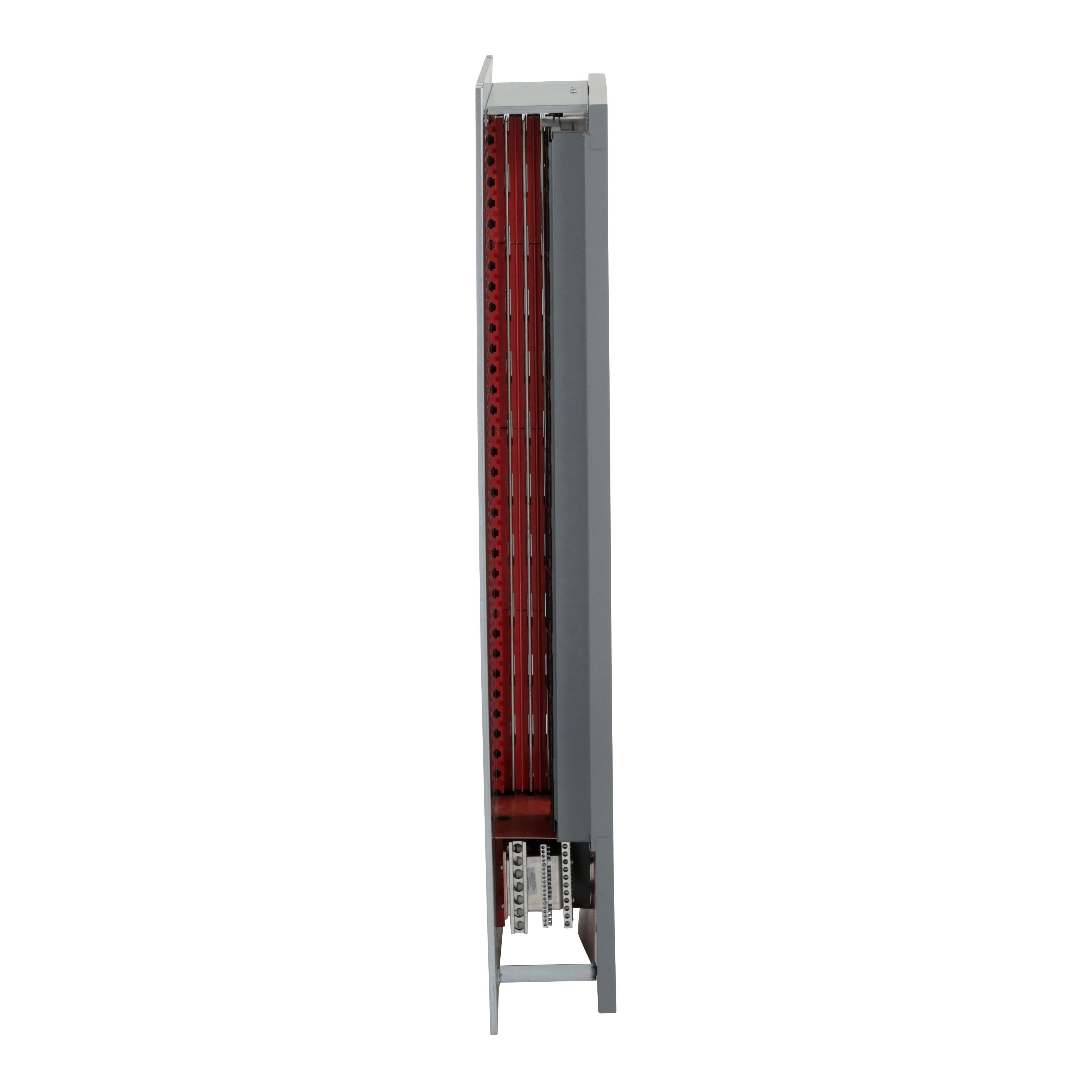

  • HCP508612N SQD PANELBOARD INTERIOR
  • HCP508612N SQD PANELBOARD INTERIOR
  • HCP508612N SQD PANELBOARD INTERIOR

Description: Square D™ I-Line™ Panelboard Interior, 3-Phase Type HCP, 600 V AC/250 V DC, 1200 A, 99 Spaces, 200 kA Short Circuit, QJ Breaker, 3-Wire Wiring Configuration, Copper Bus, Panel Mounting, NEMA 1 Enclosure, Aluminum/Copper Housing Material, 42 in W x 9-1/2 in D x 86 in H Dimensions

Manufacturer PN: HCP508612N

UPC:  78590143070

Kendall Electric Inc PN: 3961208

Invoice Description:

HCP508612N SQD PANELBOARD INTERIOR


SPEC SHEET

▸ See All in Panelboard Interiors


How Can We Make This Page Better?

Square D™ I-Line™ HCP508612N 3-Phase Type HCP Panelboard Interior, 600 V AC/250 V DC, 1200 A, 99 Spaces, 200 kA SCCR

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™ I-Line Power Distribution Panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system. I-line power distribution panelboards are for use on AC or DC systems. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. This HCP I-Line panelboard interior is a 1200A and has main lugs. This product is certified to cULus & CE standards. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139.
Square D™ I-Line™ Panelboard Interior, 3-Phase Type HCP, 600 V AC/250 V DC, 1200 A, 99 Spaces, 200 kA Short Circuit, QJ Breaker, 3-Wire Wiring Configuration, Copper Bus, Panel Mounting, NEMA 1 Enclosure, Aluminum/Copper Housing Material, 42 in W x 9-1/2 in D x 86 in H Dimensions

Specifications

 Amperage Rating 1200 A
 Brand Name Square D
 Breaker Type QJ
 Bus Material Copper
 Dimensions 42 in W x 9-1/2 in D x 86 in H
 Enclosure NEMA 1
 Housing Material Aluminum/Copper
 Manufacturer Part Number HCP508612N
 Mounting Type Panel
 Number of Spaces 99
 PART NUMBER KEYWORDS HCP508612N ; 8046771 ; 785901430704 ; 78590143070 ; 00785901430704 ; 0785901430704
 Short Circuit Current Rating 200 kA
 Standards/Approvals RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Type 3-Phase Type HCP
 Voltage Rating 600 V AC/250 V DC
 Wiring Configuration 3-Wire

Features

▪ 600VAC, 250VDC maximum
▪ Fully rated and series rated system available
▪ Dead front trim is easily installed
▪ Factory assembled or ready to install
▪ Circuit breaker plug-on jaws have no fasteners less installation time
