Schneider Electric
  • HC8SN SQD PANELBOARD SOLID NEUTRAL
  • HC8SN SQD PANELBOARD SOLID NEUTRAL
  • HC8SN SQD PANELBOARD SOLID NEUTRAL
  • HC8SN SQD PANELBOARD SOLID NEUTRAL
  • HC8SN SQD PANELBOARD SOLID NEUTRAL
  • HC8SN SQD PANELBOARD SOLID NEUTRAL

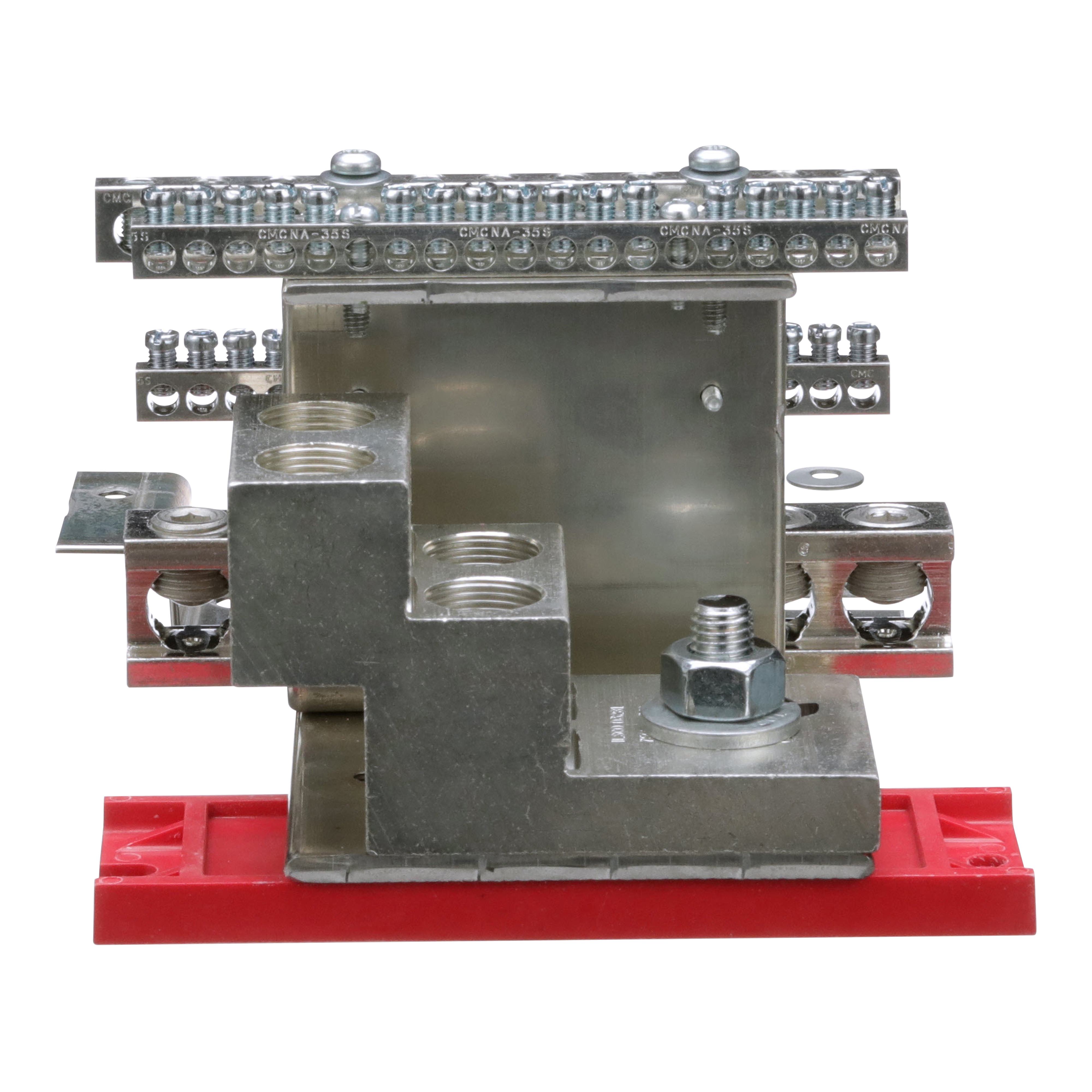

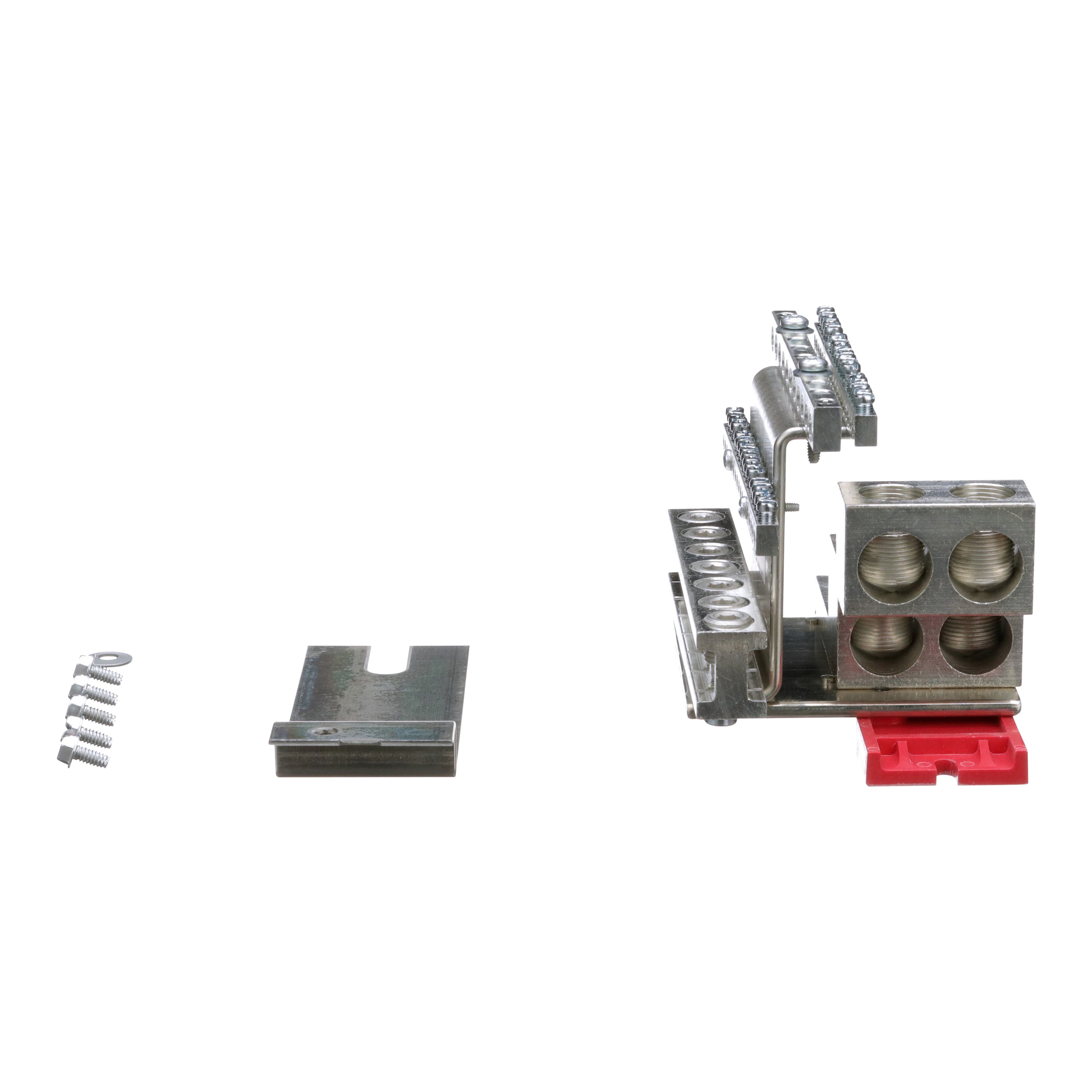

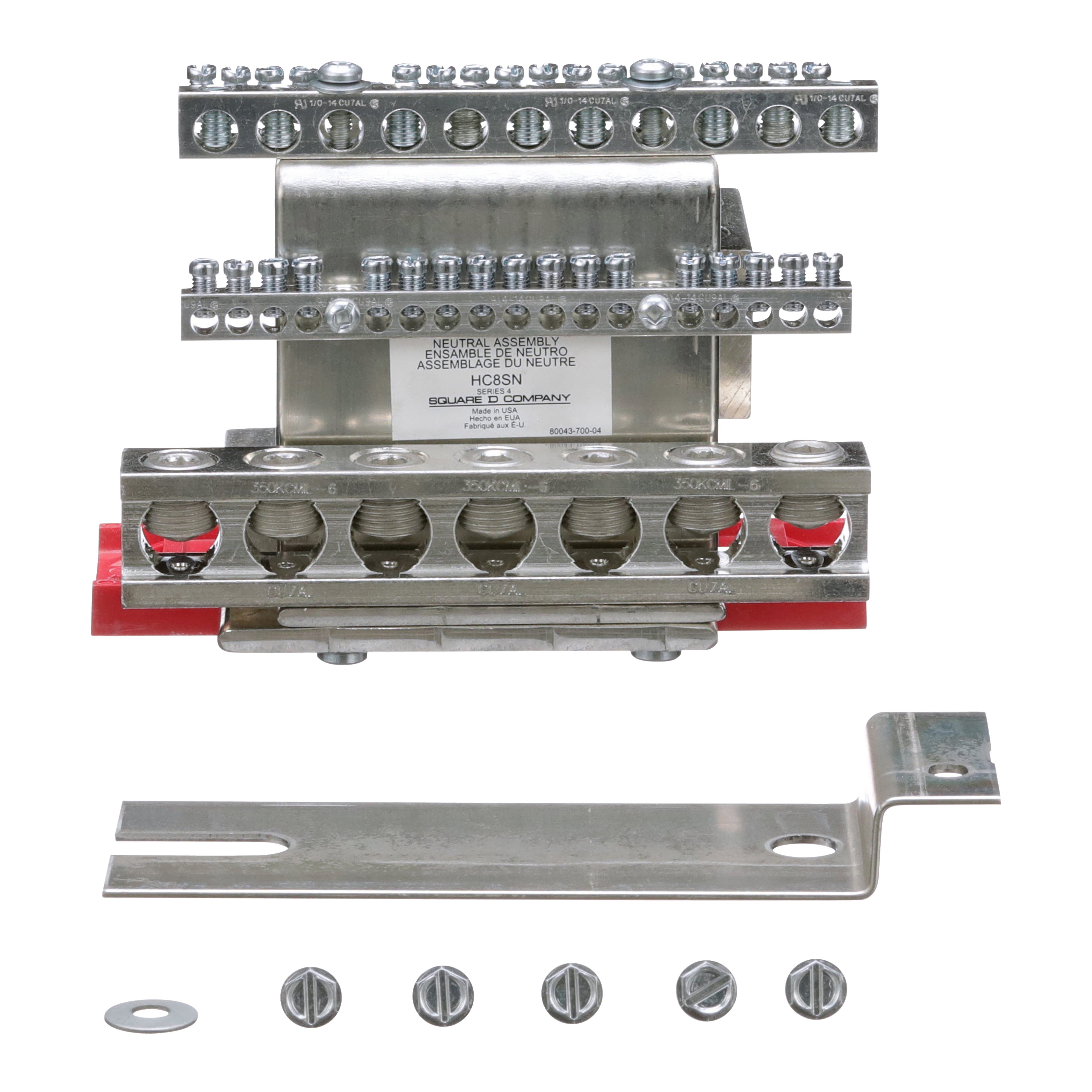

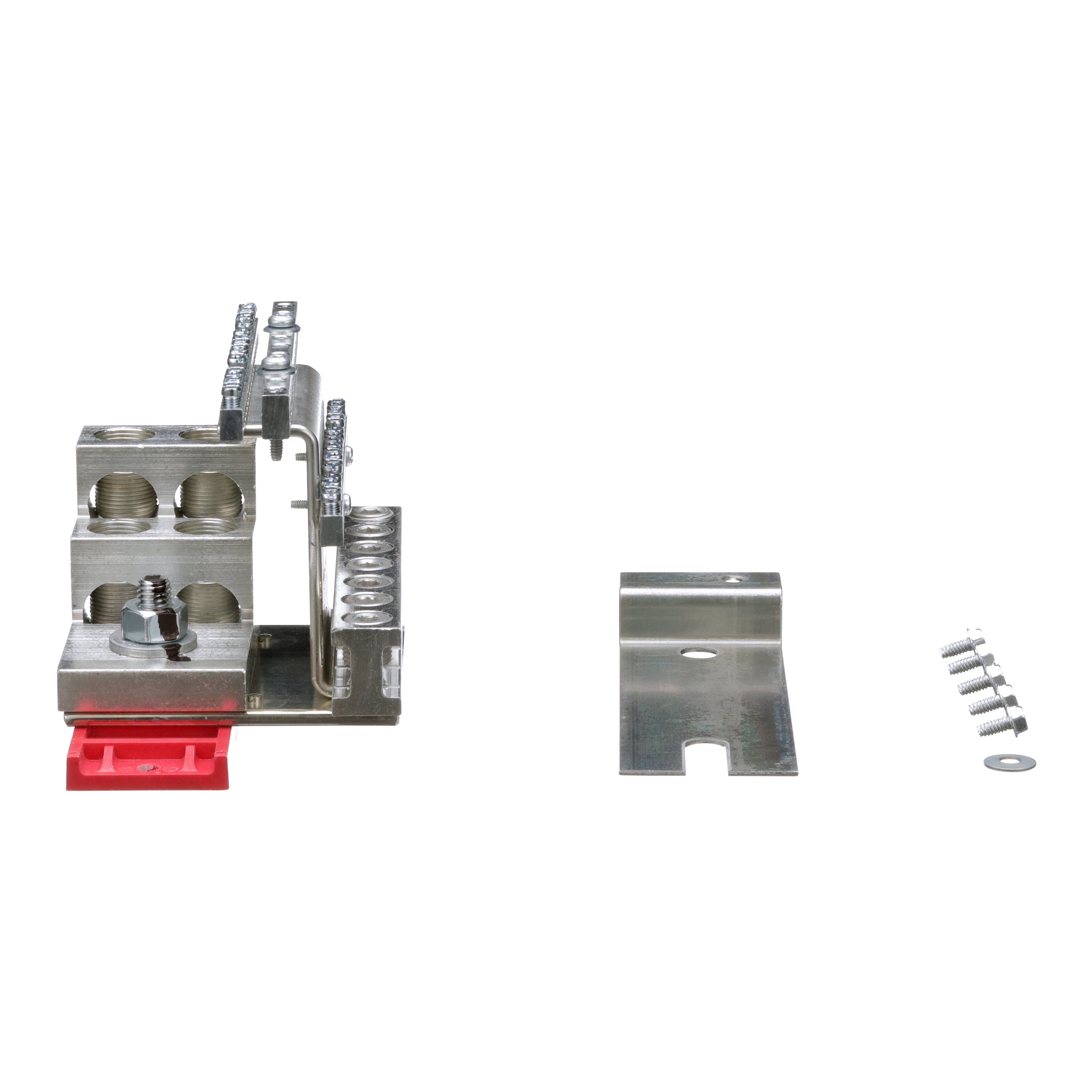

Description: Square D™ I-Line™ Solid Neutral Assembly, Solid Mechanical Lug, For Use With: I-Line™ HCN, HCM Series Circuit Breaker Power Distribution Panelboard, Specifications: 600 V AC/250 V DC, 800 A, 60 Hz, 3 Phase, 3/0 AWG to 750 kcmil Al/Cu, Surface Mount, Aluminum/Copper

Manufacturer PN: HC8SN

UPC:  78590150603

Kendall Electric Inc PN: 3959394

Invoice Description:

HC8SN SQD PANELBOARD SOLID NEUTRAL


SPEC SHEET

▸ See All in Panelboard Ground & Neutral Components


How Can We Make This Page Better?

Square D™ I-Line™ HC8SN Solid Mechanical Lug Solid Neutral Assembly, For Use With I-Line™ HCN, HCM Series Circuit Breaker Power Distribution Panelboard, 600 V AC/250 V DC, 800 A, 60 Hz, 3 Phase, 3/0 AWG to 750 kcmil Al/Cu, Surface Mount, Aluminum/Copper

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This Square D 800A I-Line Solid Neutral is an electrical accessory for a HCN, HCM and HCJ distribution board. This product has UL & CSA certifications.
Square D™ I-Line™ Solid Neutral Assembly, Solid Mechanical Lug, For Use With: I-Line™ HCN, HCM Series Circuit Breaker Power Distribution Panelboard, Specifications: 600 V AC/250 V DC, 800 A, 60 Hz, 3 Phase, 3/0 AWG to 750 kcmil Al/Cu, Surface Mount, Aluminum/Copper

Specifications

 Brand Name Square D
 Manufacturer Part Number HC8SN
 Material Aluminum/Copper
 PART NUMBER KEYWORDS HC8SN ; 8074276 ; 785901506034 ; 78590150603 ; 00785901506034 ; 0785901506034
 Specifications 600 V AC/250 V DC, 800 A, 60 Hz, 3 Phase, 3/0 AWG to 750 kcmil Al/Cu, Surface Mount
 Standards/Approvals RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Suitable For Use With I-Line™ HCN, HCM Series Circuit Breaker Power Distribution Panelboard
 Type Solid Mechanical Lug

Features

▪ Provides a secure and reliable neutral connection
▪ Reducing risk of loose connections and overheating
▪ Solid construction ensures long-term performance under high load conditions
▪ Maintains proper neutral balance for stable electrical system operation
