Schneider Electric
  • HC6SN SQD PANELBOARD SOLID NEUTRAL
  • HC6SN SQD PANELBOARD SOLID NEUTRAL
  • HC6SN SQD PANELBOARD SOLID NEUTRAL
  • HC6SN SQD PANELBOARD SOLID NEUTRAL
  • HC6SN SQD PANELBOARD SOLID NEUTRAL

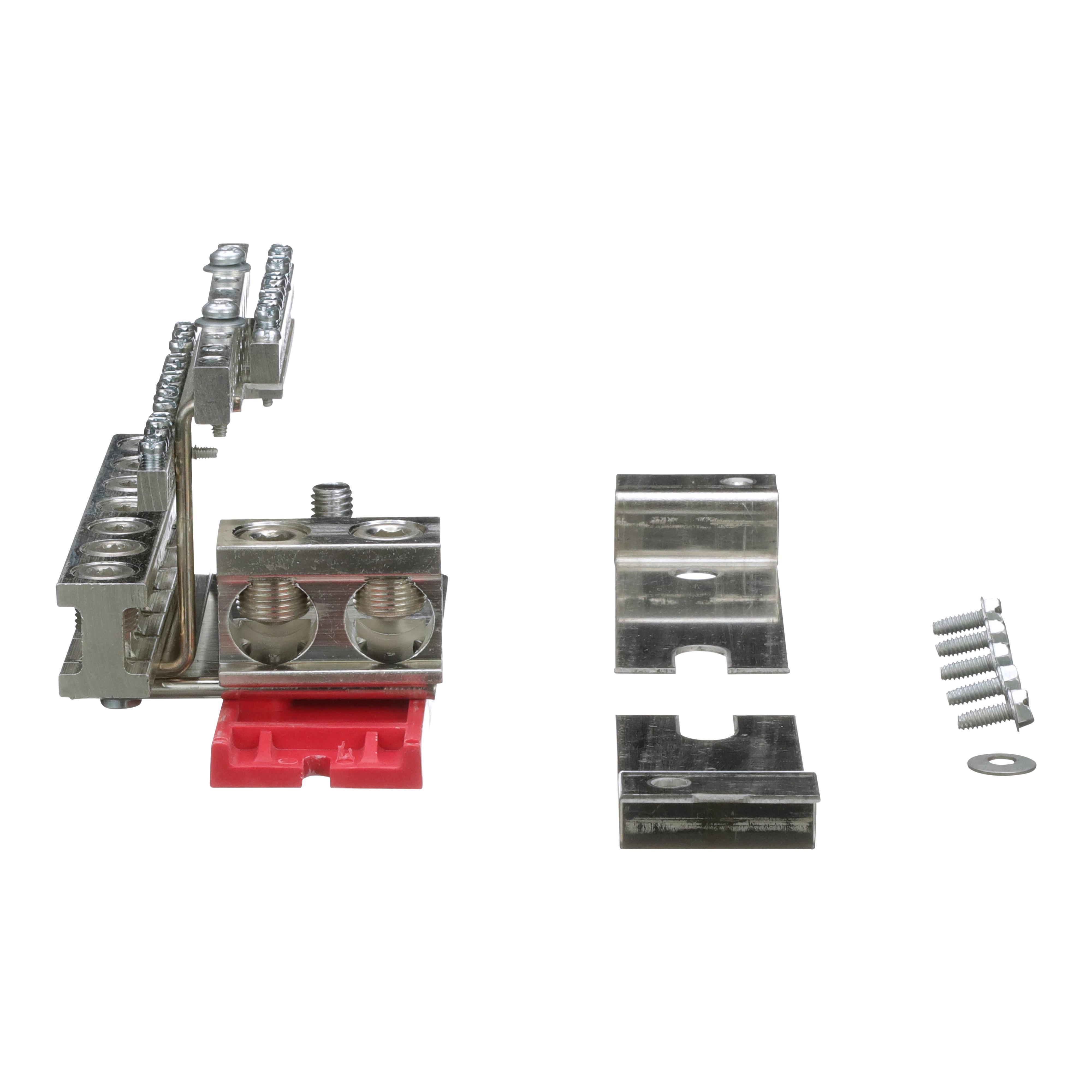

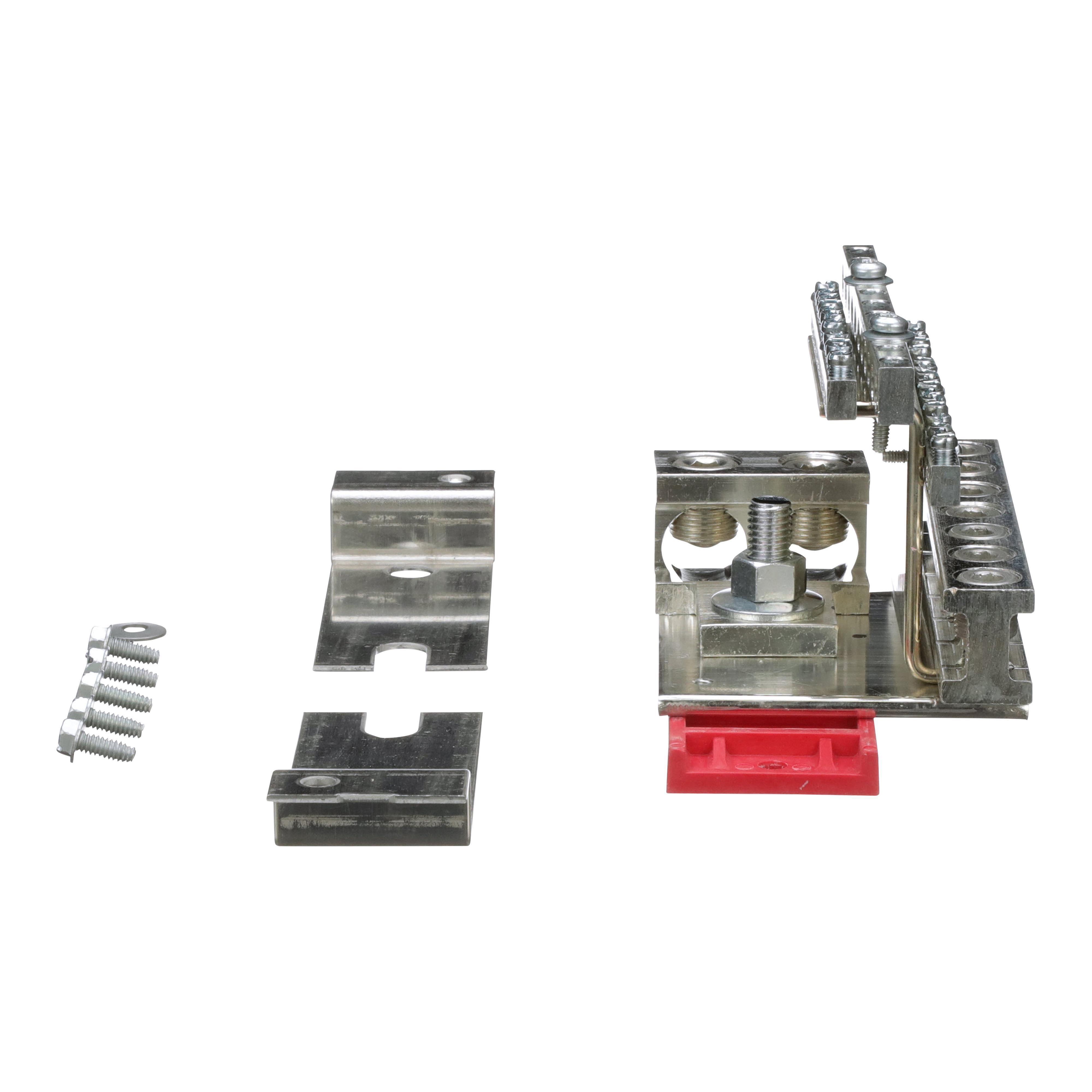

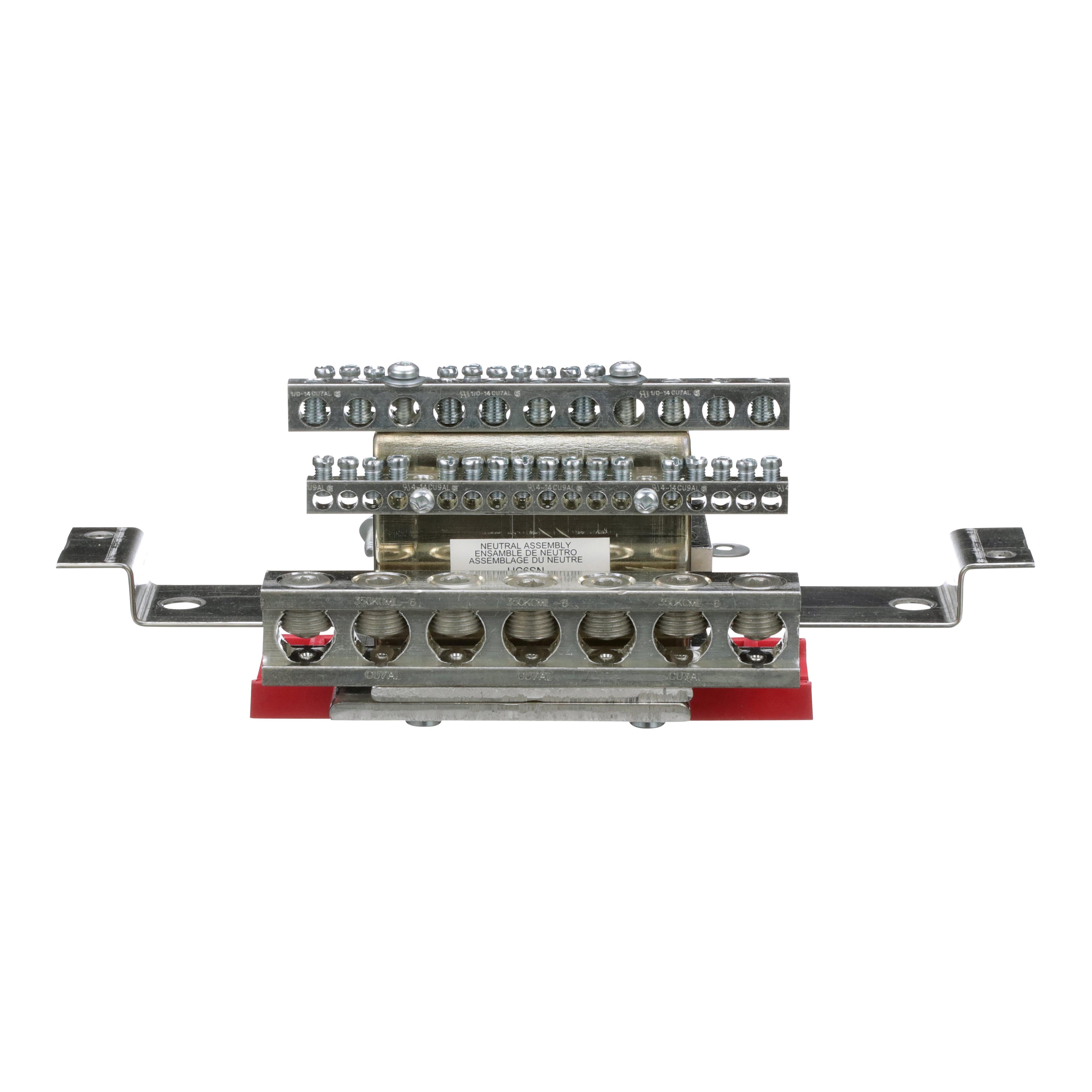

Description: Square D™ I-Line™ Solid Neutral Assembly, For Use With: I-Line™ Main Breaker, Main Lug Merchandised Panelboard, Specifications: 600 V AC/250 V DC, 600 A, 3 Phase, 60 Hz, 4 AWG to 600 kcmil Al/Cu Lug, Surface Mount, Aluminum/Copper

Manufacturer PN: HC6SN

UPC:  78590150602

Kendall Electric Inc PN: 3999666

Invoice Description:

HC6SN SQD PANELBOARD SOLID NEUTRAL


SPEC SHEET

▸ See All in Panelboard Ground & Neutral Components


How Can We Make This Page Better?

Square D™ I-Line™ HC6SN Solid Neutral Assembly, For Use With I-Line™ Main Breaker, Main Lug Merchandised Panelboard, 600 V AC/250 V DC, 600 A, 3 Phase, 60 Hz, 4 AWG to 600 kcmil Al/Cu Lug, Surface Mount, Aluminum/Copper

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This Square D 600A I-Line Solid Neutral is an electrical accessory for a HCN, HCM and HCJ distribution board. This product has UL & CSA certifications.
Square D™ I-Line™ Solid Neutral Assembly, For Use With: I-Line™ Main Breaker, Main Lug Merchandised Panelboard, Specifications: 600 V AC/250 V DC, 600 A, 3 Phase, 60 Hz, 4 AWG to 600 kcmil Al/Cu Lug, Surface Mount, Aluminum/Copper

Specifications

 Brand Name Square D
 Manufacturer Part Number HC6SN
 Material Aluminum/Copper
 PART NUMBER KEYWORDS HC6SN ; 8074267 ; 785901506027 ; 78590150602 ; 00785901506027 ; 0785901506027
 Specifications 600 V AC/250 V DC, 600 A, 3 Phase, 60 Hz, 4 AWG to 600 kcmil Al/Cu Lug, Surface Mount
 Standards/Approvals RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Suitable For Use With I-Line™ Main Breaker, Main Lug Merchandised Panelboard

Features

▪ Provides a secure and reliable neutral connection
▪ Reducing risk of loose connections and overheating
▪ Solid construction ensures long-term performance under high load conditions
▪ Maintains proper neutral balance for stable electrical system operation
