Schneider Electric
  • HC4259DB SQD PANELBOARD
  • HC4259DB SQD PANELBOARD
  • HC4259DB SQD PANELBOARD
  • HC4259DB SQD PANELBOARD

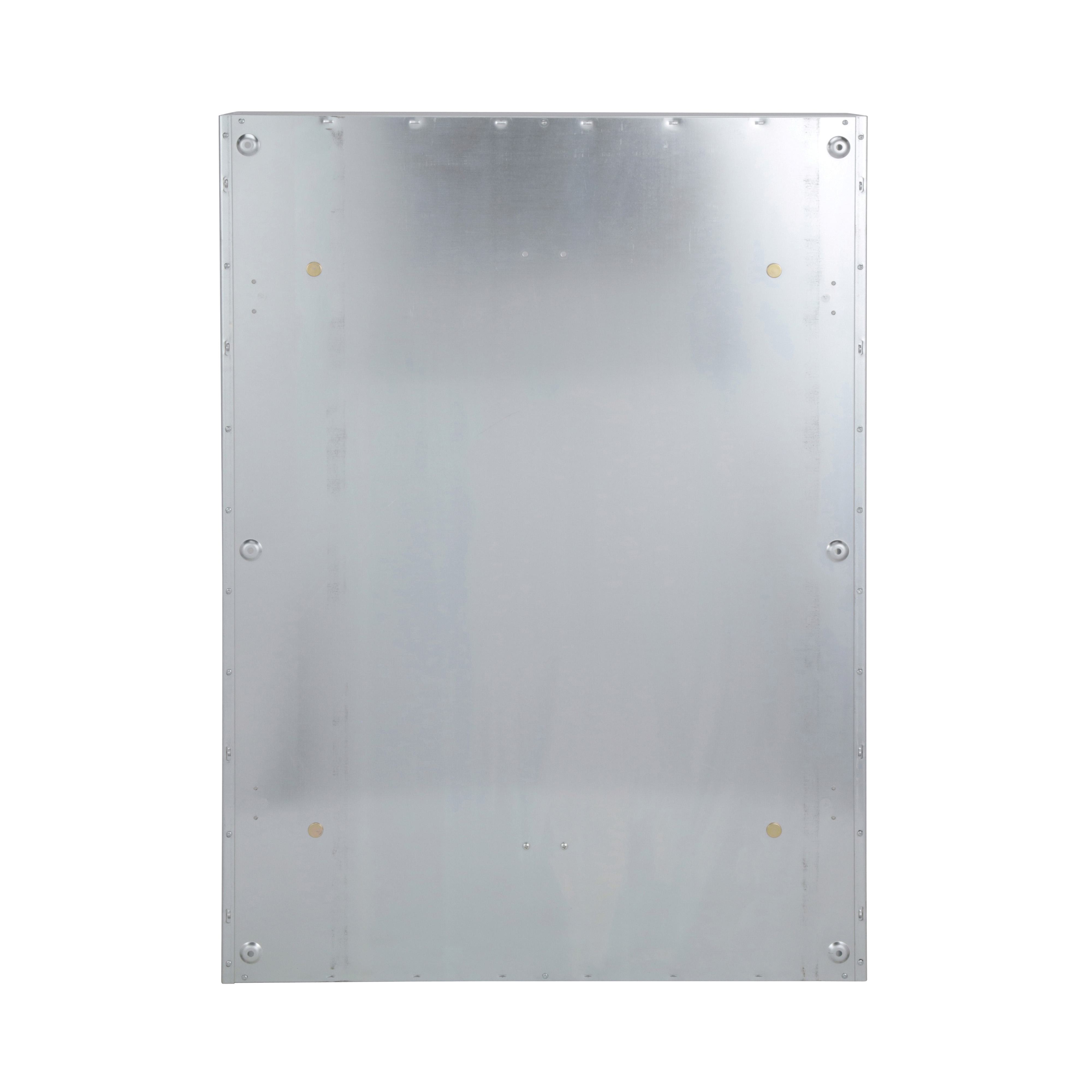

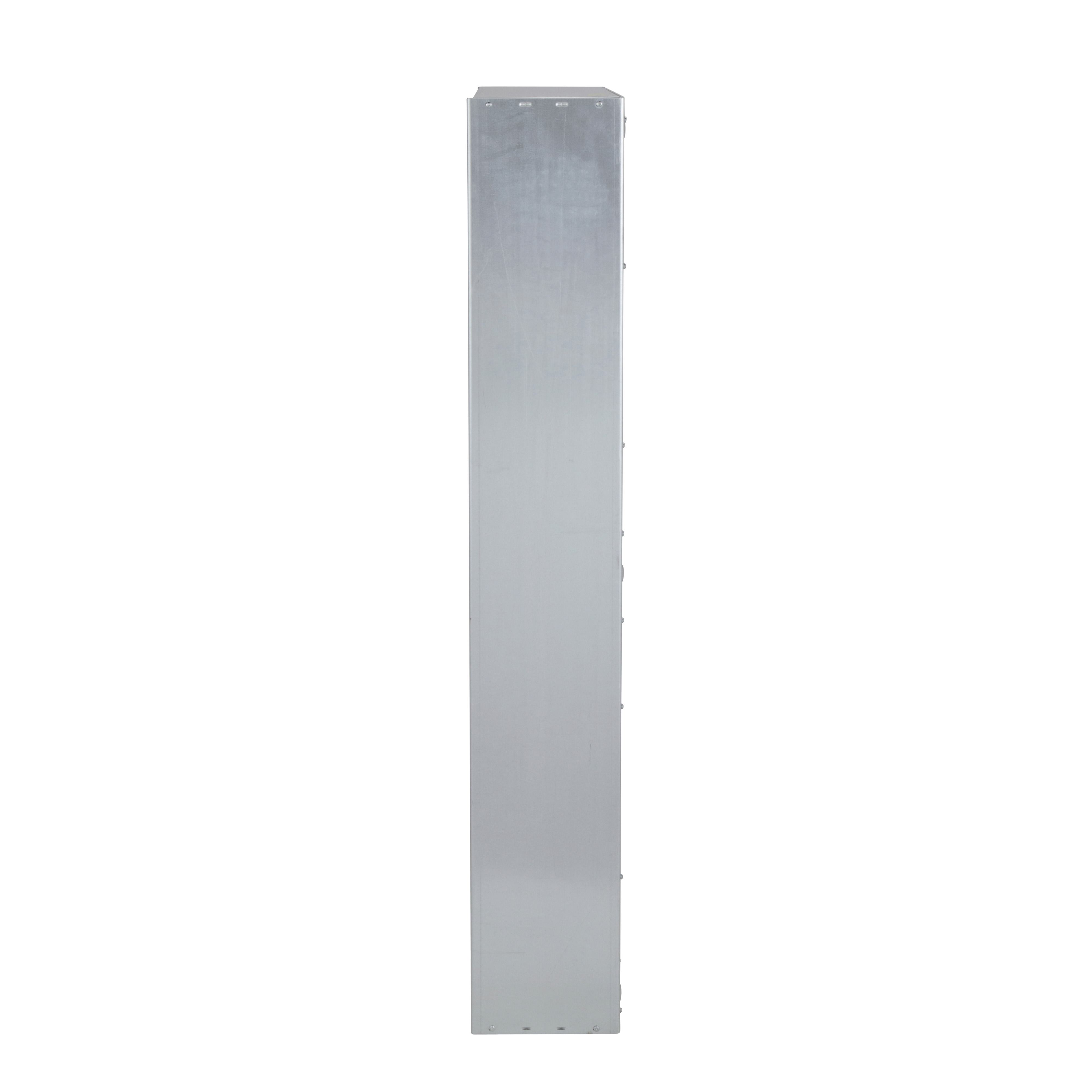

Description: Square D™ I-Line™ Panelboard Enclosure Box, 59 in Length, 42 in Width, 9-1/2 in Depth, Wall Mounting, Steel, Hot Dipped Galvanized, NEMA 1 Rating

Manufacturer PN: HC4259DB

UPC:  78590179089

Kendall Electric Inc PN: 3958846

Invoice Description:

HC4259DB SQD PANELBOARD


SPEC SHEET

▸ See All in Panelboard Enclosures


How Can We Make This Page Better?

Square D™ I-Line™ HC4259DB Panelboard Enclosure Box, NEMA 1 NEMA Rating, 59 in L x 42 in W x 9-1/2 in D, Steel

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCP I-Line panelboard enclosure has a NEMA 1 degree of protection. Dimensions for this enclosure are 1499 mm (H),1067 mm (W),241 mm (D). This product comes with an 18 month warranty.
Square D™ I-Line™ Panelboard Enclosure Box, 59 in Length, 42 in Width, 9-1/2 in Depth, Wall Mounting, Steel, Hot Dipped Galvanized, NEMA 1 Rating

Specifications

 Application For I-Line™ circuit breaker panelboard
 Brand Name Square D
 Depth 9-1/2 in
 Finish Hot Dipped Galvanized
 Length 59 in
 Manufacturer Part Number HC4259DB
 Material Steel
 Mounting Type Wall
 NEMA Rating NEMA 1
 Standards/Approvals Buy American Act Compliant|CSA Certified|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Width 42 in

Features

▪ I-Line panelboards provide flexibility and versatility for feeding lighting and appliance panelboards
▪ Protects the electrical wires feeding power from the power grid to your residential or commercial building
