Schneider Electric
  • HC3273DB9 SQD PNLBD ENCLOSURE
  • HC3273DB9 SQD PNLBD ENCLOSURE
  • HC3273DB9 SQD PNLBD ENCLOSURE
  • HC3273DB9 SQD PNLBD ENCLOSURE

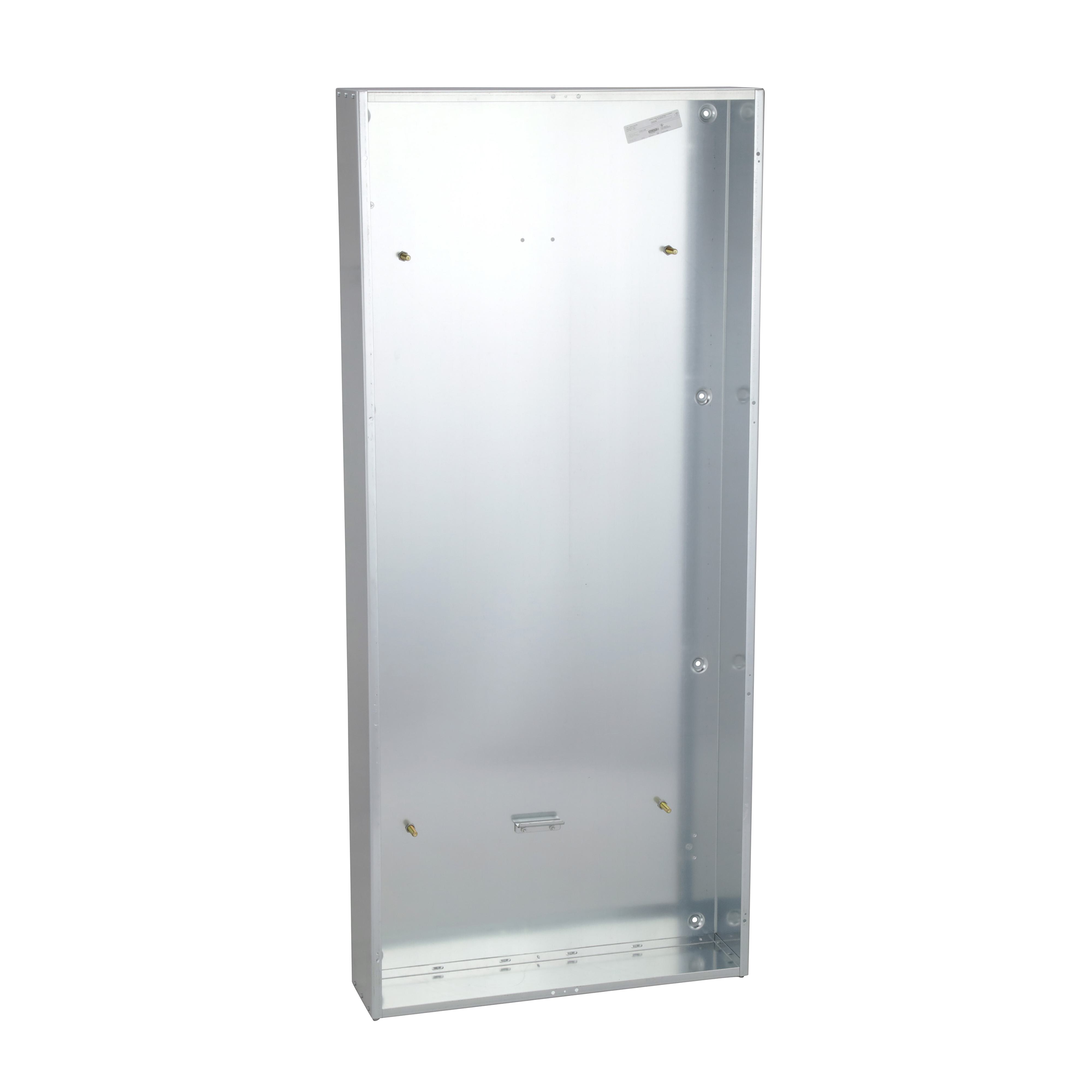

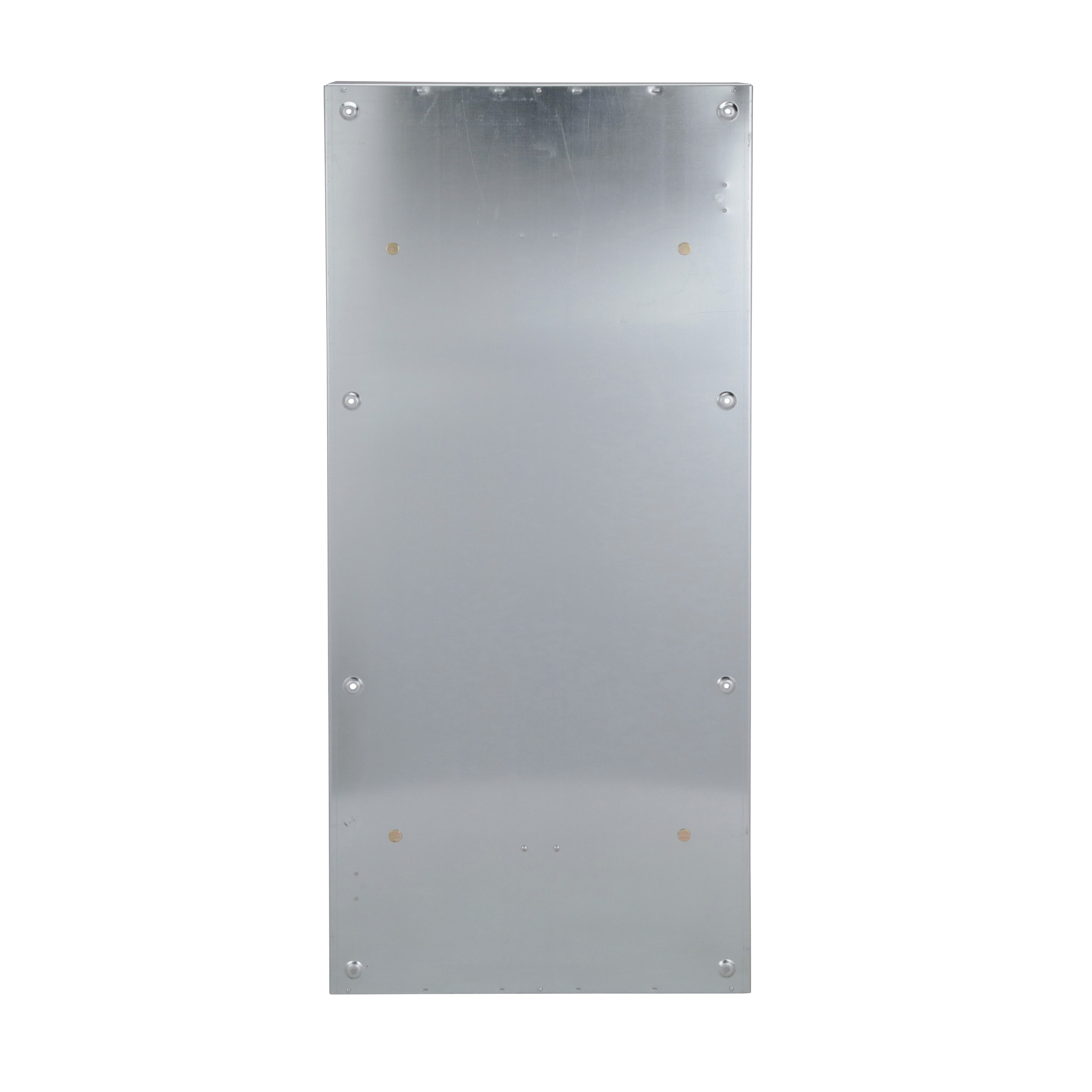

Description: Square D™ I-Line™ Panelboard Enclosure, Series: HCM, 1854 mm Length, 32 in Width, 9 in Depth, Wall Mounting, Galvanized, NEMA 1 NEMA Rating

Manufacturer PN: HC3273DB9

UPC:  78590155754

Kendall Electric Inc PN: 3961329

Invoice Description:

HC3273DB9 SQD PNLBD ENCLOSURE


SPEC SHEET

▸ See All in Panelboard Enclosures


How Can We Make This Page Better?

Square D™ I-Line™ HC3273DB9 Panelboard Enclosure, NEMA 1 NEMA Rating, 1854 mm L x 32 in W x 9 in D

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

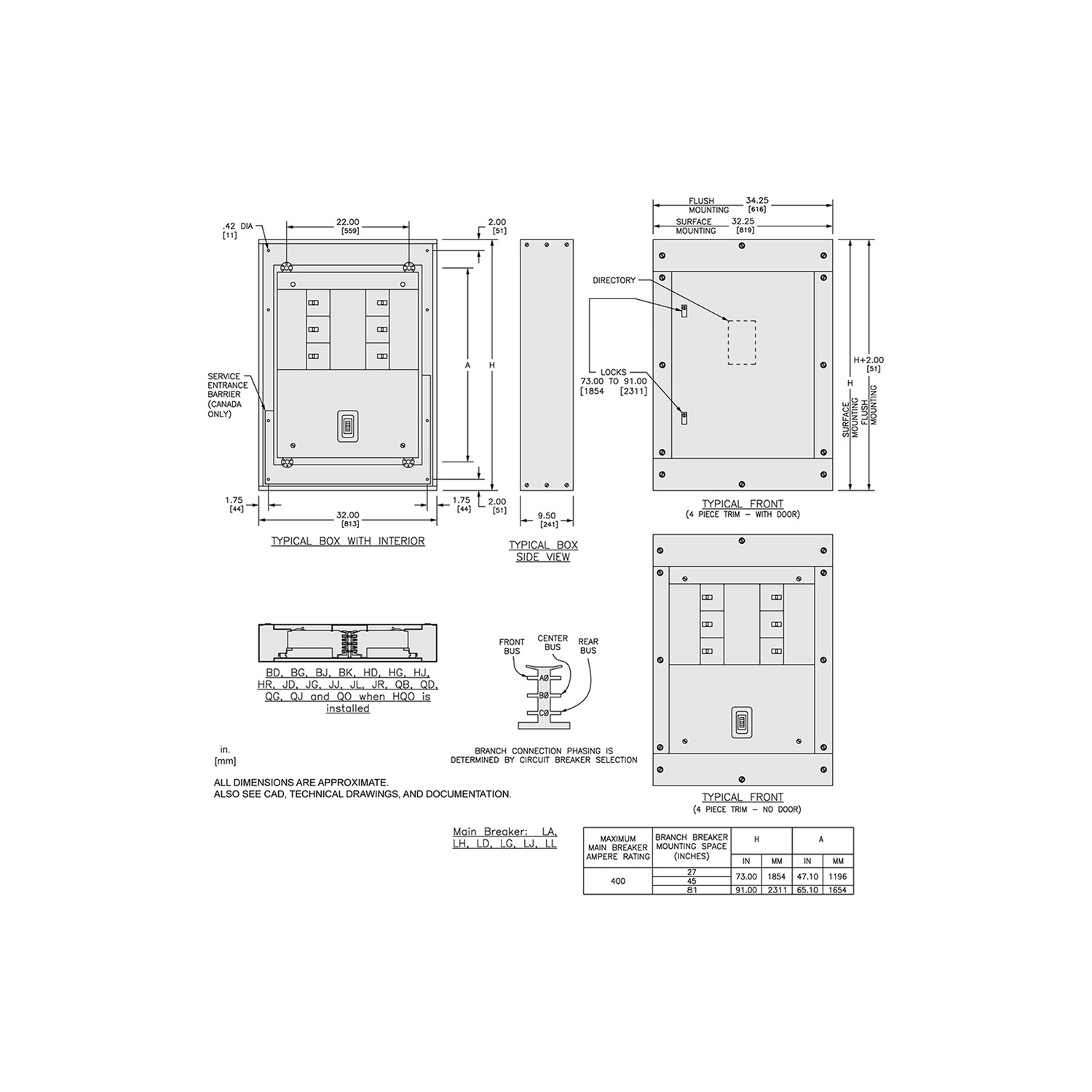

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This I-Line, panelboard enclosure has a rated current of 600-800A. This enclosure has a NEMA 1 Degree of protection rating. Dimensions for this enclosure are 1854 mm, (H),813 mm (W),241 mm(D) and weighs 54.54 kg. This product complys to UL & CSA standards.
Square D™ I-Line™ Panelboard Enclosure, Series: HCM, 1854 mm Length, 32 in Width, 9 in Depth, Wall Mounting, Galvanized, NEMA 1 NEMA Rating

Specifications

 Brand Name Square D
 Depth 9 in
 Finish Galvanized
 Length 1854 mm
 Manufacturer Part Number HC3273DB9
 Mounting Type Wall
 NEMA Rating NEMA 1
 PART NUMBER KEYWORDS HC3273DB9 ; 9135369 ; 785901557548 ; 78590155754 ; 00785901557548 ; 0785901557548
 Series HCM
 Standards/Approvals RoHS Compliant|UL Listed|CSA Certified|REACH|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Width 32 in

Features

▪ I-Line panelboards provide flexibility and versatility for feeding lighting and appliance panelboards
▪ Protects the electrical wires feeding power from the power grid to your residential or commercial building
