Hubbell
HBLTT545RB HUB 5 CHAN 45DEGREE RT TURN TRUKTRAK BL & YL

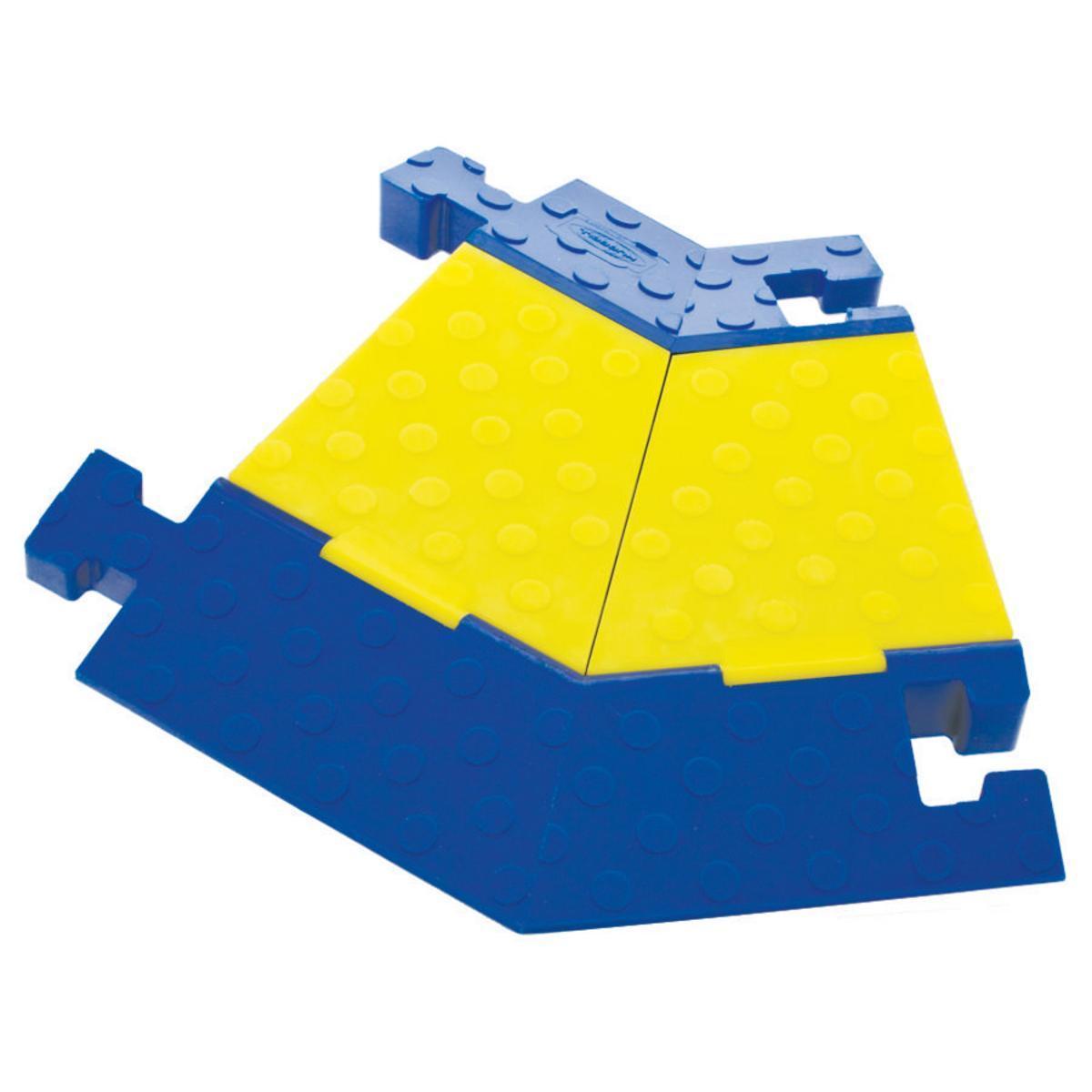

Mouse over image to zoom, click to enlarge

  • HBLTT545RB HUB 5 CHAN 45DEGREE RT TURN TRUKTRAK BL & YL
  • HBLTT545RB HUB 5 CHAN 45DEGREE RT TURN TRUKTRAK BL & YL

Description: Wiring Device-Kellems, HBLTT545RB, Right Turn Standard Cable Protector, 25 in Overall Length, 20 in Overall Width, 2.31 in Overall Height, 20150 lb at 70 deg F/9200 lb at 120 deg F Load, 5 Channels, 1-1/4 in Channel Width, 1-1/4 in Channel Height, -40 to 120 deg F, Polyurethane, Blue/Yellow

Manufacturer PN: HBLTT545RB

UPC:  78358553724

Kendall Electric Inc PN: 2067035

Invoice Description:

HBLTT545RB HUB 5 CHAN 45DEGREE RT TURN TRUKTRAK BL & YL


SPEC SHEET

▸ See All in Wire Floor Tracks & Guards


How Can We Make This Page Better?

Wiring Device-Kellems HBLTT545RB Right Turn Standard Cable Protector, 25 in OAL x 20 in OAW x 2.31 in OAH, 5 Channel, Blue/Yellow

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell TrukTrak® non-metallic cable protectors are designed to safeguard electrical cables and cords from vehicle and pedestrian traffic. The TrukTrak® interlocking system comes in two, three and five channel sizes and will protect cables up to 3.25 inches (82.6mm) in diameter. It is ideal for the industrial environment where it is necessary to support heavy trucks and fork lifts.
Wiring Device-Kellems, HBLTT545RB, Right Turn Standard Cable Protector, 25 in Overall Length, 20 in Overall Width, 2.31 in Overall Height, 20150 lb at 70 deg F/9200 lb at 120 deg F Load, 5 Channels, 1-1/4 in Channel Width, 1-1/4 in Channel Height, -40 to 120 deg F, Polyurethane, Blue/Yellow

Specifications

 Application For heavy vehicle traffic in industrial and commercial or public applications
 Brand Name Wiring Device-Kellems
 Channel Height 1/1/2004 in
 Channel Width 1/1/2004 in
 Color Blue/Yellow
 Load Capacity 20150 lb at 70 deg F/9200 lb at 120 deg F
 Manufacturer Part Number HBLTT545RB
 Material Polyurethane
 Overall Length 25 in
 Standards/Approvals RoHS Compliant
 Temperature Rating -40 to 120 deg F
 Type 45 deg Right Turn Standard

Features

▪ High density polyurethane construction supports heavy loads and is weather resistant
▪ Modular interlocking design for easy installation, breakdown and storage
▪ Safety surface pattern reduces risk of slipping and skidding
▪ High visibility safety blue and yellow colors
▪ Reinforced fiberglass hinge material
