Hubbell

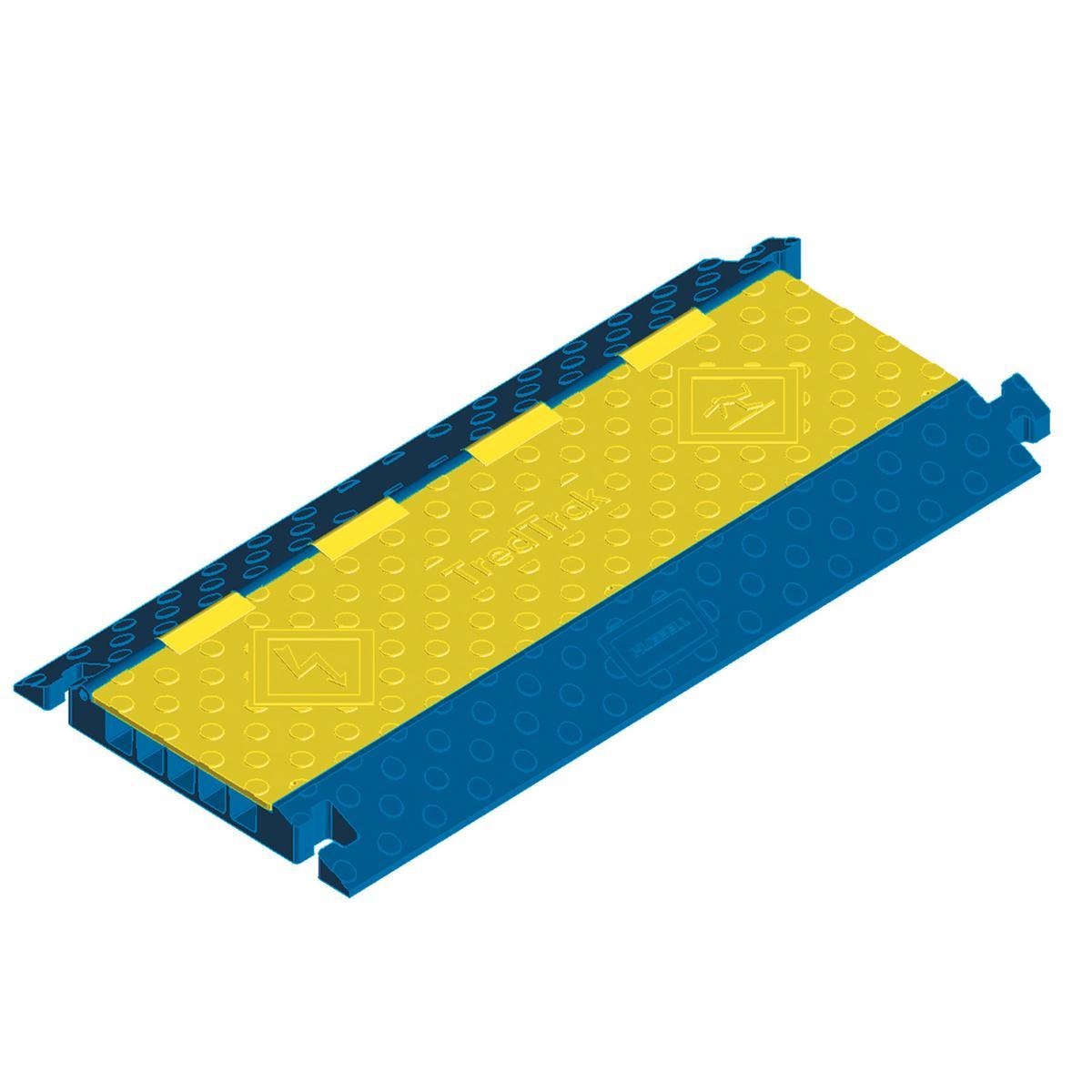

HBLTRED5B HUB 5 CHANNEL TREDTRAK BLUE & YELLOW

Mouse over image to zoom, click to enlarge

  • HBLTRED5B HUB 5 CHANNEL TREDTRAK BLUE & YELLOW
  • HBLTRED5B HUB 5 CHANNEL TREDTRAK BLUE & YELLOW
  • HBLTRED5B HUB 5 CHANNEL TREDTRAK BLUE & YELLOW
  • HBLTRED5B HUB 5 CHANNEL TREDTRAK BLUE & YELLOW

Description: Hubbell Wiring Device-Kellems, HBLTRED5B, Cable Protector, Standard, Series: HI-IMPACT™, 3 ft Overall Length, 17-1/2 in Overall Width, 1.95 in Overall Height, 10500 lb at 70 deg F/6500 lb at 120 deg F Load, 5 Channels, 1.3 in Channel Width, 1.3 in Channel Height, 1.28 in Cable, -40 to 120 deg F, Polyurethane, Blue/Yellow

Manufacturer PN: HBLTRED5B

UPC:  78358553713

Kendall Electric Inc PN: 2064967

Invoice Description:

HBLTRED5B HUB 5 CHANNEL TREDTRAK BLUE & YELLOW


SPEC SHEET

▸ See All in Wire Floor Tracks & Guards


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBLTRED5B HI-IMPACT™ Standard Cable Protector, 3 ft OAL x 17-1/2 in OAW x 1.95 in OAH, 5 Channel, Blue/Yellow

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell TrukTrak® non-metallic cable protectors are designed to safeguard electrical cables and cords from vehicle and pedestrian traffic. The TrukTrak® interlocking system comes in two, three and five channel sizes and will protect cables up to 3.25 inches (82.6mm) in diameter. It is ideal for the industrial environment where it is necessary to support heavy trucks and fork lifts.
Hubbell Wiring Device-Kellems, HBLTRED5B, Cable Protector, Standard, Series: HI-IMPACT™, 3 ft Overall Length, 17-1/2 in Overall Width, 1.95 in Overall Height, 10500 lb at 70 deg F/6500 lb at 120 deg F Load, 5 Channels, 1.3 in Channel Width, 1.3 in Channel Height, 1.28 in Cable, -40 to 120 deg F, Polyurethane, Blue/Yellow

Specifications

 Application Used to improves pedestrian safety by decreasing risk of tripping
 Brand Name Hubbell Wiring Device-Kellems
 Cable Size 1.28 in
 Channel Height 1.3 in
 Channel Width 1.3 in
 Color Blue/Yellow
 Load Capacity 10500 lb at 70 deg F/6500 lb at 120 deg F
 Manufacturer Part Number HBLTRED5B
 Material Polyurethane
 Overall Length 3 ft
 Series HI-IMPACT™
 Standards/Approvals RoHS Compliant|ANSI Z535.3
 Temperature Rating -40 to 120 deg F
 Type Standard

Features

▪ High density polyurethane construction supports heavy loads and is weather resistant
▪ Modular interlocking design for easy installation, breakdown and storage
▪ Safety surface pattern reduces slipping and skidding
▪ High visibility safety blue and yellow colors
