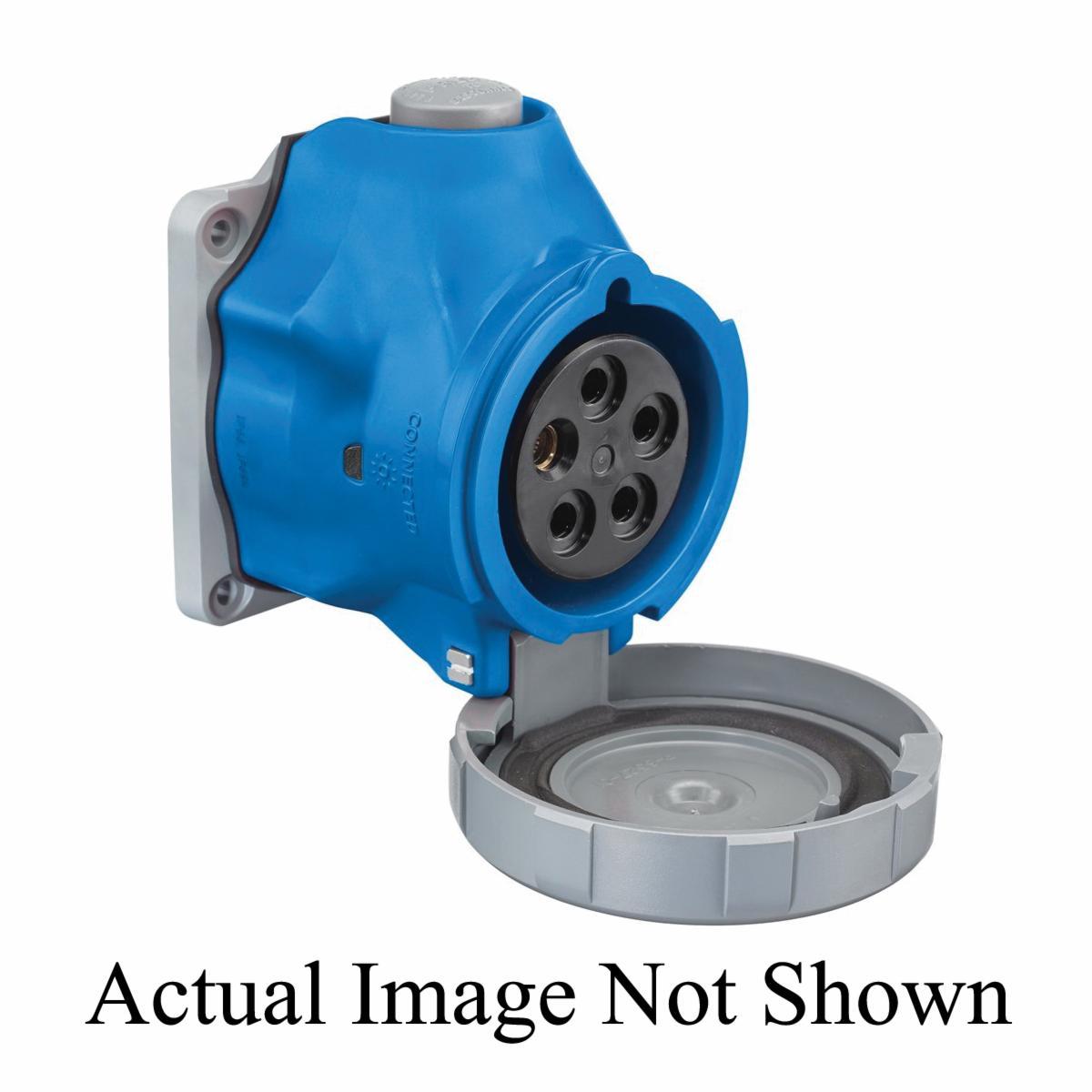

HBLS560R7W HUBBELL PS,IEC,SW RECP,4P5W,60A 277/480V,4X/IP69

Mouse over image to zoom, click to enlarge

  • HBLS560R7W HUBBELL PS,IEC,SW RECP,4P5W,60A 277/480V,4X/IP69
  • HBLS560R7W HUBBELL PS,IEC,SW RECP,4P5W,60A 277/480V,4X/IP69

Description: Hubbell Wiring Device-Kellems Advantage™ HBL® Pin Sleeve Receptacle, Coverless Grounding Switch Rated Standard Weatherproof Screw Mount, 277/480 V AC, 60 A, 30 hp, 4 Pole, 5 Wires, 4X NEMA Rating, IP69K Enclosure, -40 to 70 deg C, Screw Terminal, Composite, Red, 4.52 in L x 5.09 in W

Manufacturer PN: HBLS560R7W

UPC:  78358547871

Kendall Electric Inc PN: 4334562

Invoice Description:

HBLS560R7W HUBBELL PS,IEC,SW RECP,4P5W,60A 277/480V,4X/IP69


SPEC SHEET

▸ See All in Pin & Sleeve Receptacles


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Advantage™ HBL® HBLS560R7W Coverless Grounding Switch Rated Standard Weatherproof Screw Mount Pin Sleeve Receptacle, 277/480 V AC, 60 A, 4 Poles, 5 Wires, Red

Log In for Pricing and Availability




Description

The Advantage™ series has a UL witnessed IP69K and NEMA 4X, 12 environmental rating, two power indicating LED, continuous ground engagement, labelless laser markings and a compact and ergonomic design. Hubbell® pin and sleeve connections have always been safe - that hasn't changed. The Advantage™ series simply has more Advantage™.
Hubbell Wiring Device-Kellems Advantage™ HBL® Pin Sleeve Receptacle, Coverless Grounding Switch Rated Standard Weatherproof Screw Mount, 277/480 V AC, 60 A, 30 hp, 4 Pole, 5 Wires, 4X NEMA Rating, IP69K Enclosure, -40 to 70 deg C, Screw Terminal, Composite, Red, 4.52 in L x 5.09 in W

Specifications

 Amperage Rating 60 A
 Brand Name Hubbell Premise Wiring
 Color Red
 Dimensions 4.52 in L x 5.09 in W
 Enclosure IP69K
 Horsepower 30 hp
 Manufacturer Part Number HBLS560R7W
 Material Composite
 NEMA Rating 4X
 Number of Poles 4
 Number of Wires 5
 PART NUMBER KEYWORDS HBLS560R7W ; 13760613 ; 783585478715 ; 78358547871 ; 00783585478715
 Standards/Approvals RoHS Compliant|UL Listed|cULus 50E/2682|CSA C22.2 No. 0.17|IEC 60309-1/2
 Temperature Rating -40 to 70 deg C
 Terminal Type Screw
 Type Coverless Grounding Switch Rated Standard Weatherproof Screw Mount
 Video Links
 Voltage Rating 277/480 V AC

Features

▪ Approved as a diconnecting means for motor circuits and branch circuits
▪ Impact and corrosion-resistant PBT that is color coded by voltage
▪ Unswitched ground and power indicating LED lights
