Hubbell

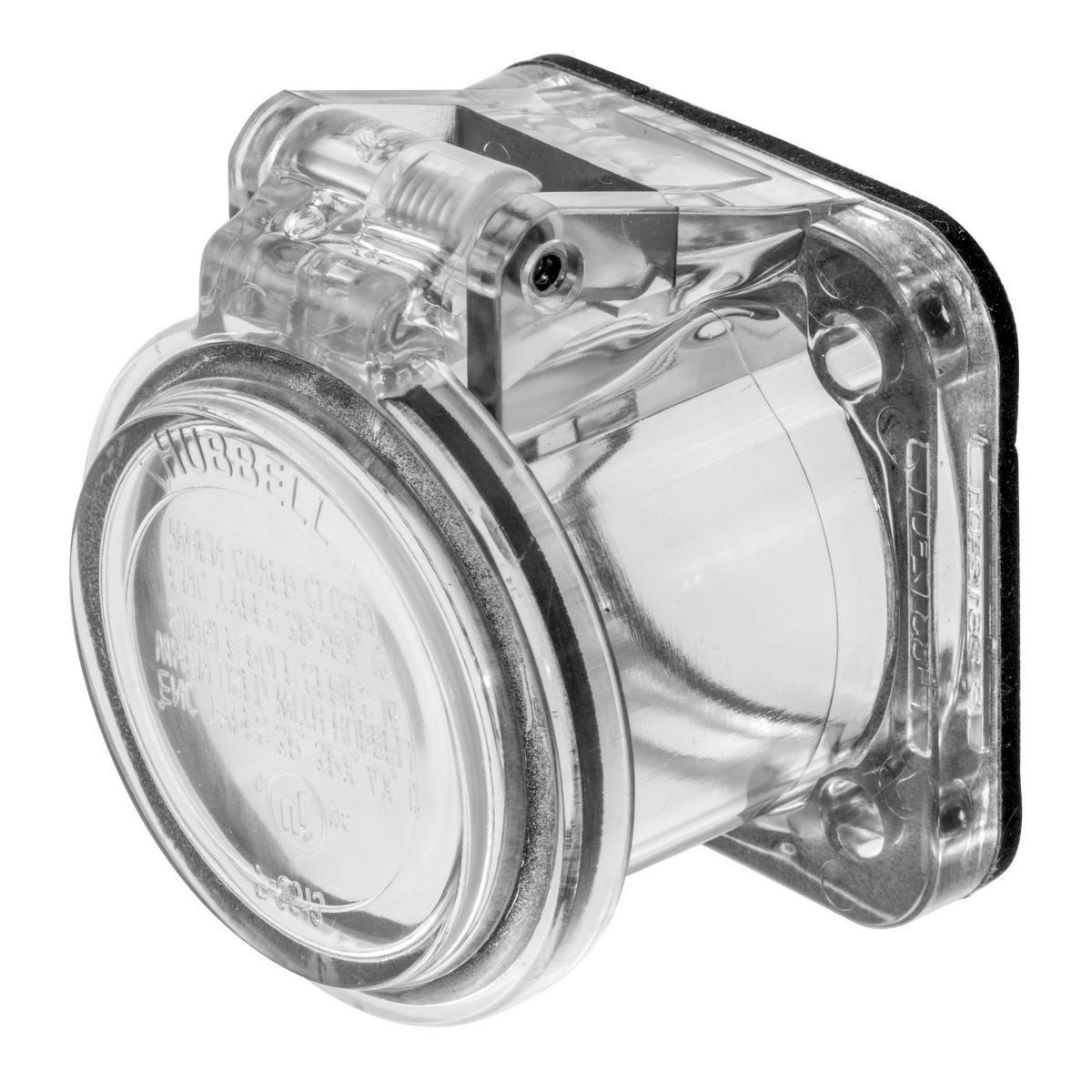

HBLNCC HUBBELL SINGLEPOLE, NON-MET COVER, CLEAR

Mouse over image to zoom, click to enlarge

  • HBLNCC HUBBELL SINGLEPOLE, NON-MET COVER, CLEAR
  • HBLNCC HUBBELL SINGLEPOLE, NON-MET COVER, CLEAR
  • HBLNCC HUBBELL SINGLEPOLE, NON-MET COVER, CLEAR

Description: Hubbell Wiring Device-Kellems Protective Lift Cover, Weatherproof Standard Screw Mount, Series: 16 Series, For Use With: 300/400 A, 600 V AC/250 V DC 1-Pole and Temporary Power Device, Polycarbonate, Clear, 2.2 in W x 2.03 in D x 2.57 in H

Manufacturer PN: HBLNCC

UPC:  78358547300

Kendall Electric Inc PN: 3717835

Invoice Description:

HBLNCC HUBBELL SINGLEPOLE, NON-MET COVER, CLEAR


SPEC SHEET

▸ See All in Single Pole Connector Caps & Covers


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBLNCC 16 Series Weatherproof Standard Screw Mount Protective Lift Cover, For Use With 300/400 A, 600 V AC/250 V DC 1-Pole and Temporary Power Device, Polycarbonate, Clear

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

These new, ASSEMBLED in USA, weatherproof covers are an addition to Hubbell current offering of single pole series 16 devices and accessories. They are available in the eight standard single pole colors, black, white, green, red, Blue, Brown, Orange and Yellow as well as Clear. The cover design fully protects the single pole device from water ingress, whether the device is mounted to the front of a panel or from the inside. With the cover closed the devices carry a UL 3R rating. While in use with Hubbell single pole devices, the covers successfully passed the UL 4X hosedown test. Additionally, they meet the 1000 repetition hinge cycling requirement found in UL 1640 for temporary power devices. The covers are suitable for use with all styles of male and female panel mount receptacles and inlets from Hubbell and from other major manufacturers.
Hubbell Wiring Device-Kellems Protective Lift Cover, Weatherproof Standard Screw Mount, Series: 16 Series, For Use With: 300/400 A, 600 V AC/250 V DC 1-Pole and Temporary Power Device, Polycarbonate, Clear, 2.2 in W x 2.03 in D x 2.57 in H

Specifications

 Brand Name Hubbell Premise Wiring
 Color Clear
 Dimensions 2.2 in W x 2.03 in D x 2.57 in H
 Manufacturer Part Number HBLNCC
 Material Polycarbonate
 Series 16 Series
 Standards/Approvals ANSI/NFPA 70|cULus Listed|UL 498/1691/50E|C22.2 No. 94.2
 Suitable For Use With 300/400 A, 600 V AC/250 V DC 1-Pole and Temporary Power Device
 Type Weatherproof Standard Screw Mount

Features

▪ Color caps bray bodies
▪ Impact and UV-resistant construction
▪ Corrosion-resistant stainless steel spring and hinge pin
▪ Use on all series 16 devices mounted inside or outside a panel
▪ High visibility color matched covers for easy identification or clear for see though cover convenience
▪ Integral flange gasket

Resources

 Catalog Page
 MSDS URL None Required
 Product Data Sheet
 Warranty Information
