Hubbell

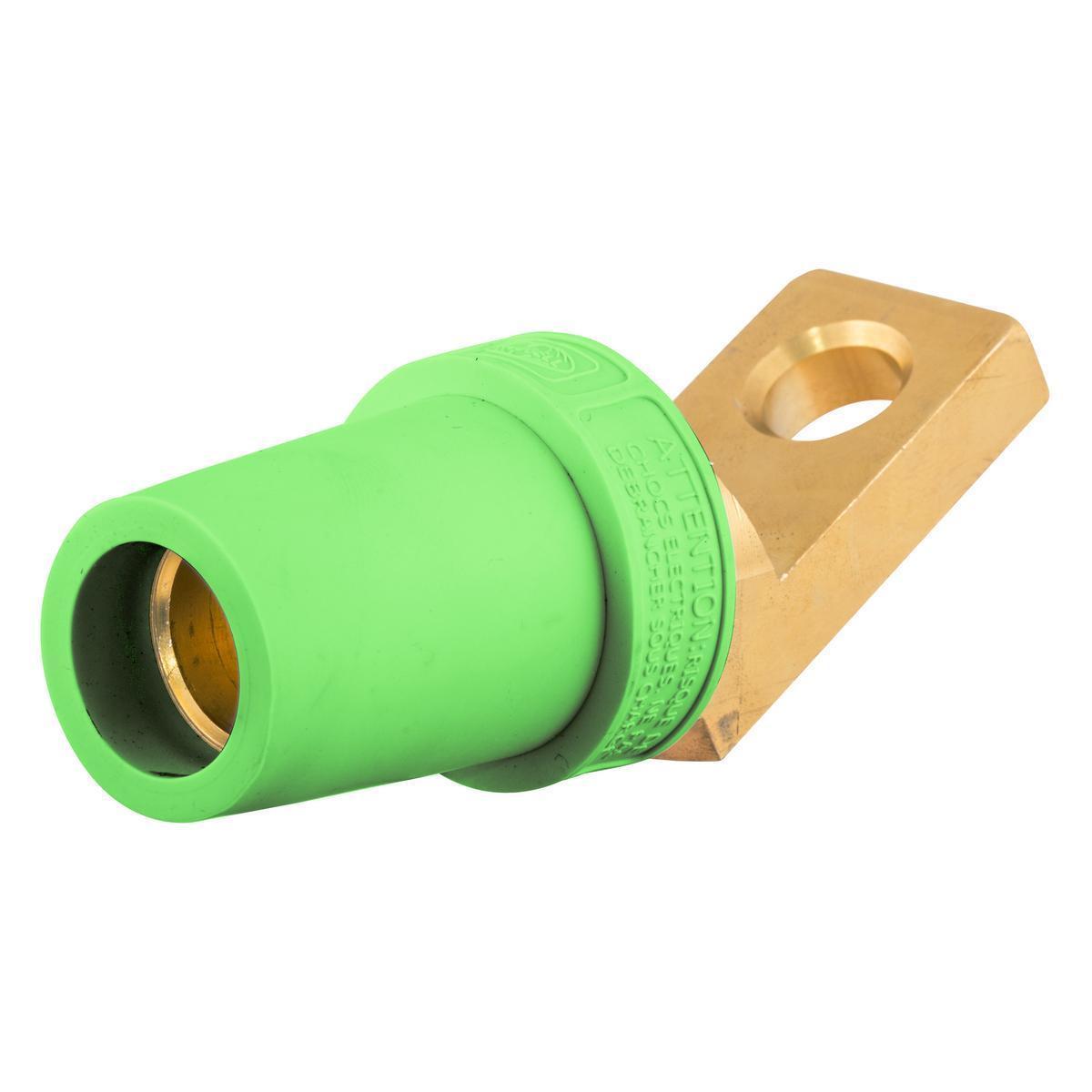

HBLFOAGN HUBBELL SINGLEPOLE, 300/400A FEM, OFST, ANG, GN

Mouse over image to zoom, click to enlarge

  • HBLFOAGN HUBBELL SINGLEPOLE, 300/400A FEM, OFST, ANG, GN
  • HBLFOAGN HUBBELL SINGLEPOLE, 300/400A FEM, OFST, ANG, GN

Description: Wiring Device-Kellems Single Pole Receptacle, Angled Female Offset Stud Standard Straight, Series: 16 Series, 600 VAC/250 VDC, 400 A, 4/0 AWG Wire, Screw Terminal Connection, Brass Contact, Composite Housing Material, 3R/4X/12 NEMA Rating, Cable Mounting, Specifications: 1-Terminal, 240000 W, Green, 1.48 in Dia x 3.76 in L

Manufacturer PN: HBLFOAGN

UPC:  78358551195

Kendall Electric Inc PN: 4180968

Invoice Description:

HBLFOAGN HUBBELL SINGLEPOLE, 300/400A FEM, OFST, ANG, GN


SPEC SHEET

▸ See All in Single Pole Connectors


How Can We Make This Page Better?

Wiring Device-Kellems HBLFOAGN 16 Series Angled Female Offset Stud Standard Straight Single Pole Receptacle, 600 VAC/250 VDC, 400 A, 4/0 AWG Wire, Screw Terminal Connection, 3R/4X/12 NEMA Rating

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell wiring Device-Kellems offers a full line of innovative, high quality, series 15 and series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
Wiring Device-Kellems Single Pole Receptacle, Angled Female Offset Stud Standard Straight, Series: 16 Series, 600 VAC/250 VDC, 400 A, 4/0 AWG Wire, Screw Terminal Connection, Brass Contact, Composite Housing Material, 3R/4X/12 NEMA Rating, Cable Mounting, Specifications: 1-Terminal, 240000 W, Green, 1.48 in Dia x 3.76 in L

Specifications

 Amperage Rating 400 A
 Application Entertainment, Theme Parks, Carnival Equipment, Concerts, Movie Making and High Ampacity Connection Applications
 Brand Name Hubbell Premise Wiring
 Color Green
 Connection Type Screw Terminal
 Contact Material Brass
 Dimensions 1.48 in Dia x 3.76 in L
 Housing Material Composite
 Manufacturer Part Number HBLFOAGN
 Mounting Type Cable
 NEMA Rating 3R/4X/12
 Series 16 Series
 Specifications 1-Terminal, 240000 W
 Standards/Approvals ANSI/NFPA 70|cUL Listed|UL Listed|CSA 22.2. 0.17|UL94 Flammability Rating
 Type Angled Female Offset Stud Standard Straight
 Voltage Rating 600 VAC/250 VDC

Features

▪ Highest performance and coolest running connection
▪ Easily identifies power phases, neutral and ground

Resources

 Catalog Page
 Line Drawing
 Line Drawing URL
 MSDS URL None Required
 Product Data Sheet
 Tech Drawing URL
 Warranty Information
