Hubbell

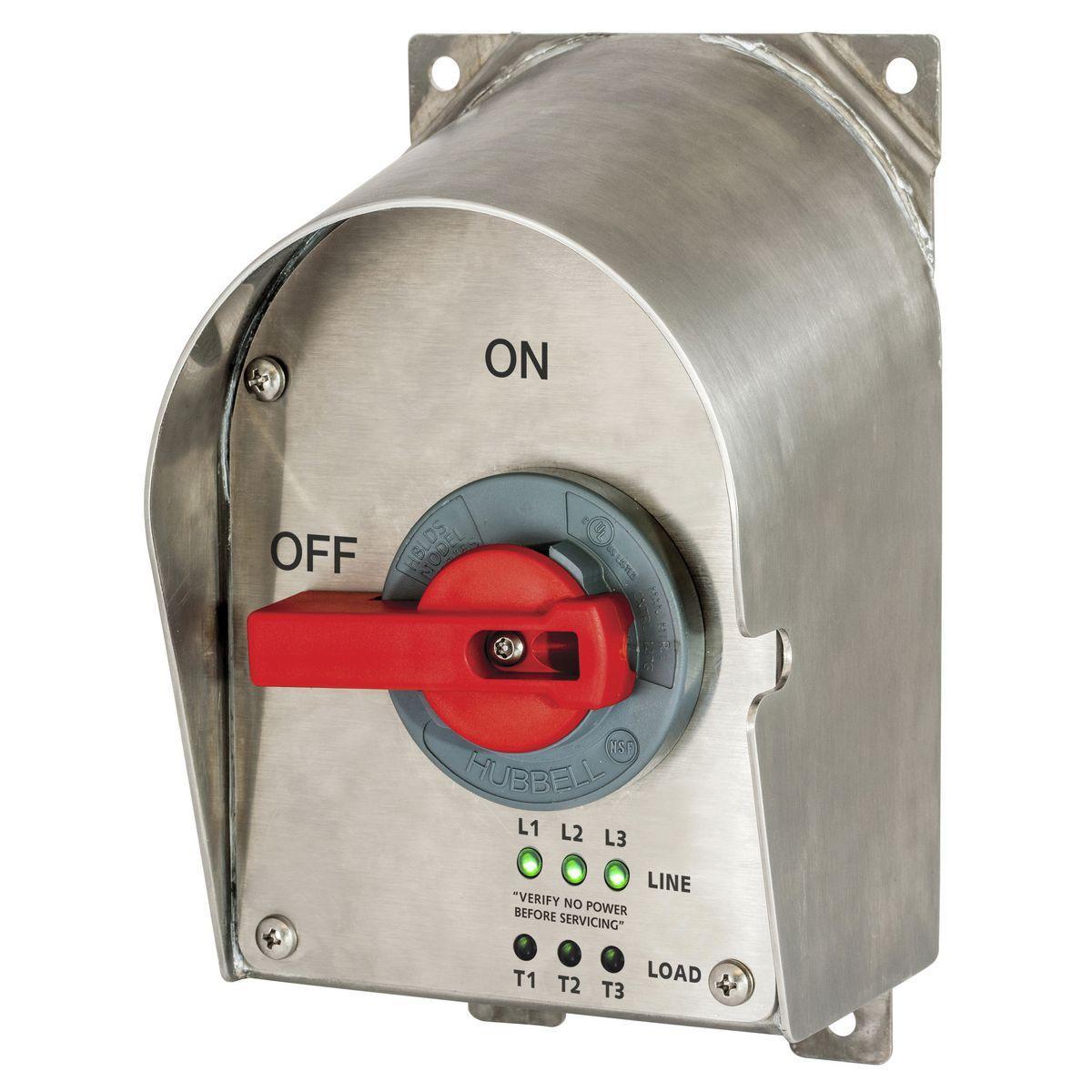

HBLDS3SSRP HUBBELL SLOPED DISCONNECT, 30A UN-F, 4X, SS, LED

Mouse over image to zoom, click to enlarge

  • HBLDS3SSRP HUBBELL SLOPED DISCONNECT, 30A UN-F, 4X, SS, LED
  • HBLDS3SSRP HUBBELL SLOPED DISCONNECT, 30A UN-F, 4X, SS, LED

Description: Hubbell Wiring Device-Kellems Circuit-Lock® inSIGHT™ Enclosed Disconnect Switch, Sloped Top Unfused, 600 V AC, 30 A, 15 hp, 1 ph, 3 Pole, Type 4X/IP69K Enclosure, Threaded Mounting, 8.6 in L x 5.41 in W x 4.92 in H, Stainless Steel

Manufacturer PN: HBLDS3SSRP

UPC:  78358536517

Kendall Electric Inc PN: 3716202

Invoice Description:

HBLDS3SSRP HUBBELL SLOPED DISCONNECT, 30A UN-F, 4X, SS, LED


SPEC SHEET

▸ See All in Enclosed Rotary Disconnects


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Circuit-Lock® inSIGHT™ HBLDS3SSRP Sloped Top Unfused Enclosed Disconnect Switch With LED Indicator, 600 V AC, 30 A, 15 hp, 3 Poles

Log In for Pricing and Availability




Description

Hubbell® new 30 A Circuit-Lock® Disconnect with integral phase indication LEDs redefines the benchmark for safety by providing insight into the enclosure while in use. Six highly visible LEDs (3 line side/3 load side) communicate the electrical status of the switch by phase. This voltage detection feature significantly improves existing safety and maintenance procedures by visually providing personnel critical information prior to removing the enclosure cover, e.g. a welded contact or dropped phase.
Hubbell Wiring Device-Kellems Circuit-Lock® inSIGHT™ Enclosed Disconnect Switch, Sloped Top Unfused, 600 V AC, 30 A, 15 hp, 1 ph, 3 Pole, Type 4X/IP69K Enclosure, Threaded Mounting, 8.6 in L x 5.41 in W x 4.92 in H, Stainless Steel

Specifications

 Amperage Rating 30 A
 Brand Name Hubbell Premise Wiring
 Dimensions 8.6 in L x 5.41 in W x 4.92 in H
 Enclosure Type 4X/IP69K
 Horsepower 15 hp
 Manufacturer Part Number HBLDS3SSRP
 Material Stainless Steel
 Mounting Type Threaded
 Number of Poles 3
 Phase 1
 Standards/Approvals cUL Listed|NSF
 Type Sloped Top Unfused
 Video Links
 Voltage Rating 600 V AC

Features

▪ Six highly visible integral phase identification LEDs for use on 3 Phase Y system
▪ LEDs provide secondary means of visual confirmation of make/break on all phases
▪ Cover cannot be removed with switch in the "ON" position
▪ Verification of opening of load side contacts
▪ Highly visible red handle can be locked in the OFF position
