Hubbell
HBLDS3SSR HUBBELL SLOPED DISCONNECT, 30A UNFUSED, 4X, SS 78358554154

Mouse over image to zoom, click to enlarge

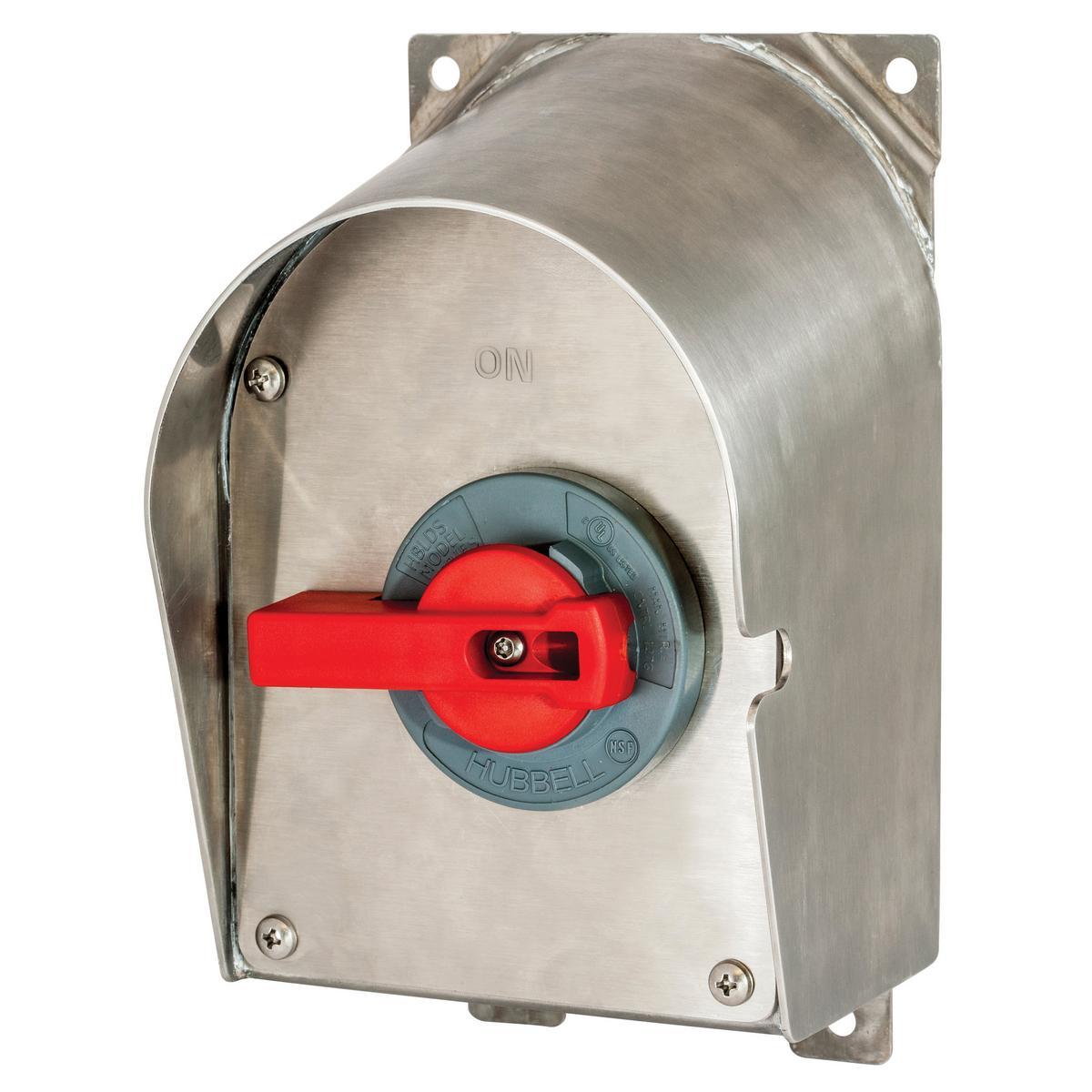

  • HBLDS3SSR HUBBELL SLOPED DISCONNECT, 30A UNFUSED, 4X, SS 78358554154
  • HBLDS3SSR HUBBELL SLOPED DISCONNECT, 30A UNFUSED, 4X, SS 78358554154
  • HBLDS3SSR HUBBELL SLOPED DISCONNECT, 30A UNFUSED, 4X, SS 78358554154
  • HBLDS3SSR HUBBELL SLOPED DISCONNECT, 30A UNFUSED, 4X, SS 78358554154

Description: Wiring Device-Kellems Circuit-Lock® Enclosed Disconnect Switch, Sloped Top Standard Unfused, 600 V, 30 A, 15 hp, 3 ph, 3 Pole, 65 kA Short Circuit, Type 4X/IP69K Enclosure, Threaded Mounting, Screw Terminal, -40 deg C, 8.6 x 5.41 x 4.92 in, Stainless Steel

Manufacturer PN: HBLDS3SSR

UPC:  78358554154

Kendall Electric Inc PN: 3441983

Invoice Description:

HBLDS3SSR HUBBELL SLOPED DISCONNECT, 30A UNFUSED, 4X, SS 78358554154


SPEC SHEET

▸ See All in Enclosed Rotary Disconnects


How Can We Make This Page Better?

Wiring Device-Kellems Circuit-Lock® HBLDS3SSR Sloped Top Standard Unfused Enclosed Disconnect Switch, 600 V, 30 A, 15 hp, 3 Poles

Log In for Pricing and Availability




Description

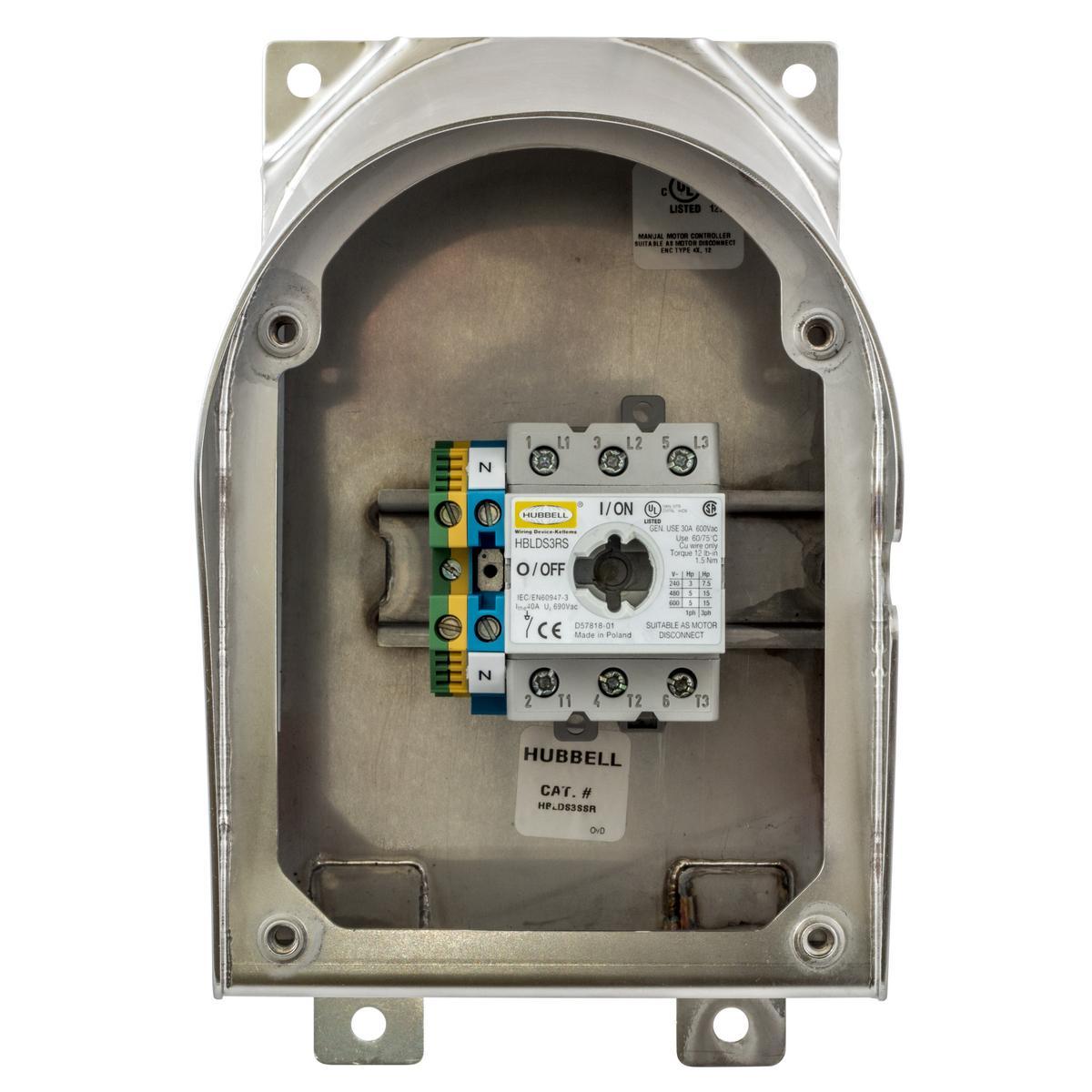

Hubbell® Stainless Steel Disconnect Switch is the latest addition to the Circuit-Lock® family of switched enclosures. The product has been certified by NSF International for hygiene applications in food and beverage processing. The enclosures are designed to withstand harsh environments with exposure to water, chemicals, oils and frequent washdowns. The enclosures feature 304 Series Stainless Steel and are UL Listed Type 4X and 12. The DIN rail mounted switch accommodates up to two auxiliary contacts for control circuit applications. The high visibility red handle can be locked in the OFF position for compliance with OSHA lockout/ tagout requirements.
Wiring Device-Kellems Circuit-Lock® Enclosed Disconnect Switch, Sloped Top Standard Unfused, 600 V, 30 A, 15 hp, 3 ph, 3 Pole, 65 kA Short Circuit, Type 4X/IP69K Enclosure, Threaded Mounting, Screw Terminal, -40 deg C, 8.6 x 5.41 x 4.92 in, Stainless Steel

Specifications

 Amperage Rating 30 A
 Application For motor starting without overload protection, indoor and outdoor applications
 Brand Name Hubbell Premise Wiring
 Dimensions 8.6 x 5.41 x 4.92 in
 Enclosure Type 4X/IP69K
 Horsepower 15 hp
 Manufacturer Part Number HBLDS3SSR
 Material Stainless Steel
 Mounting Type Threaded
 Number of Poles 3
 Phase 3
 Short Circuit Current Rating 65 kA
 Standards/Approvals UL 508|cUL Listed|NSF Approved|CSA Certified|RoHS Compliant
 Temperature Rating -40 deg C
 Terminal Type Screw
 Type Sloped Top Standard Unfused
 Voltage Rating 600 V
