Hubbell

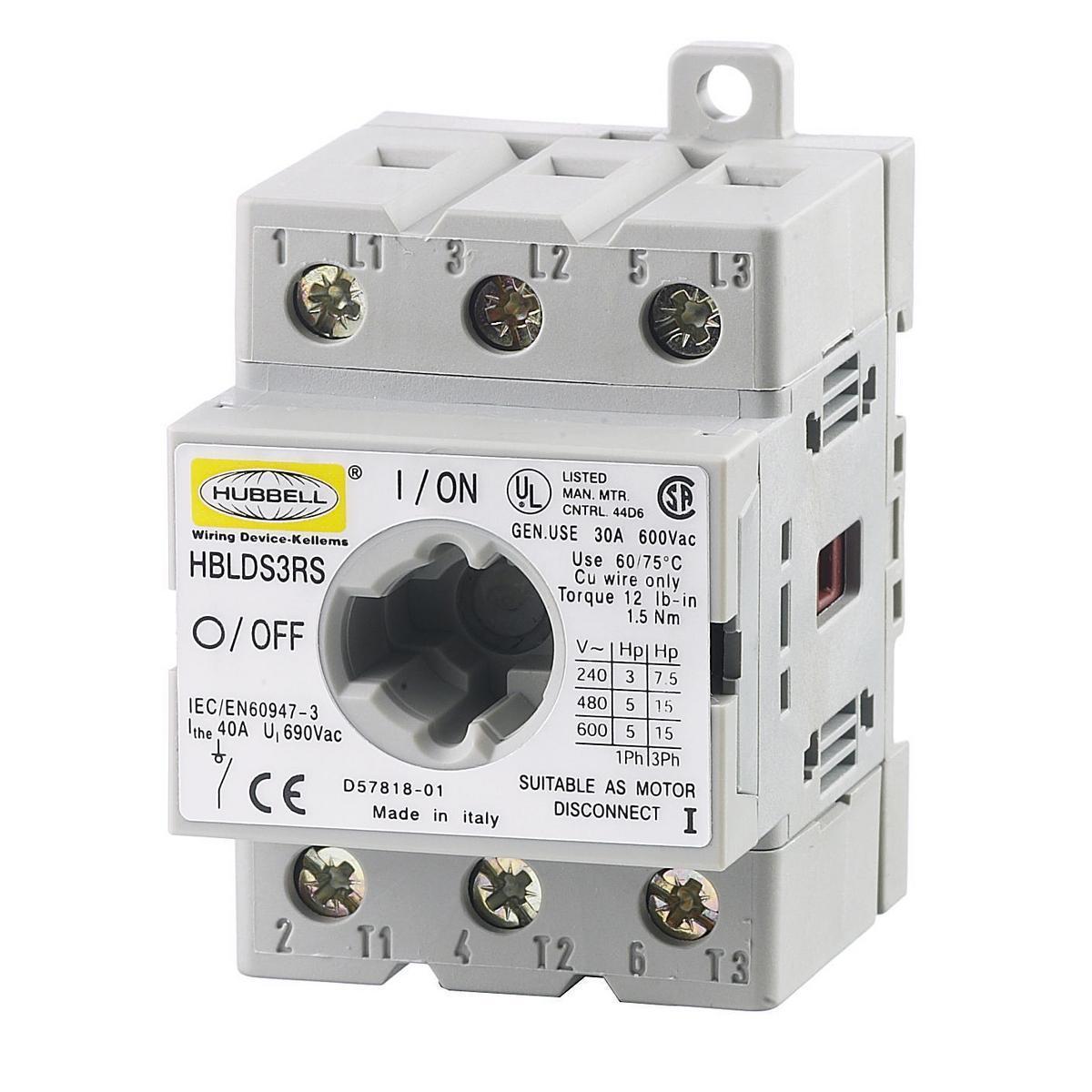

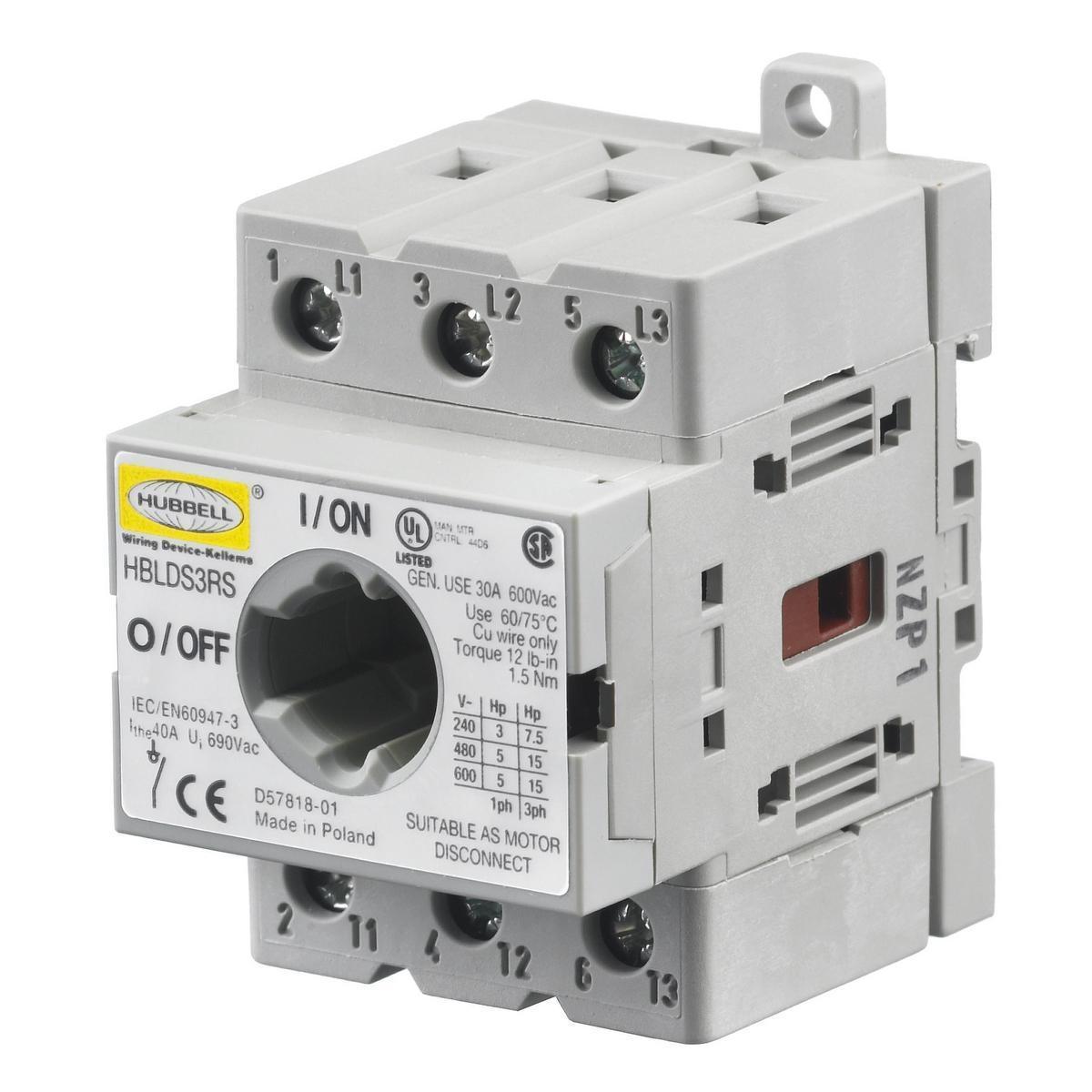

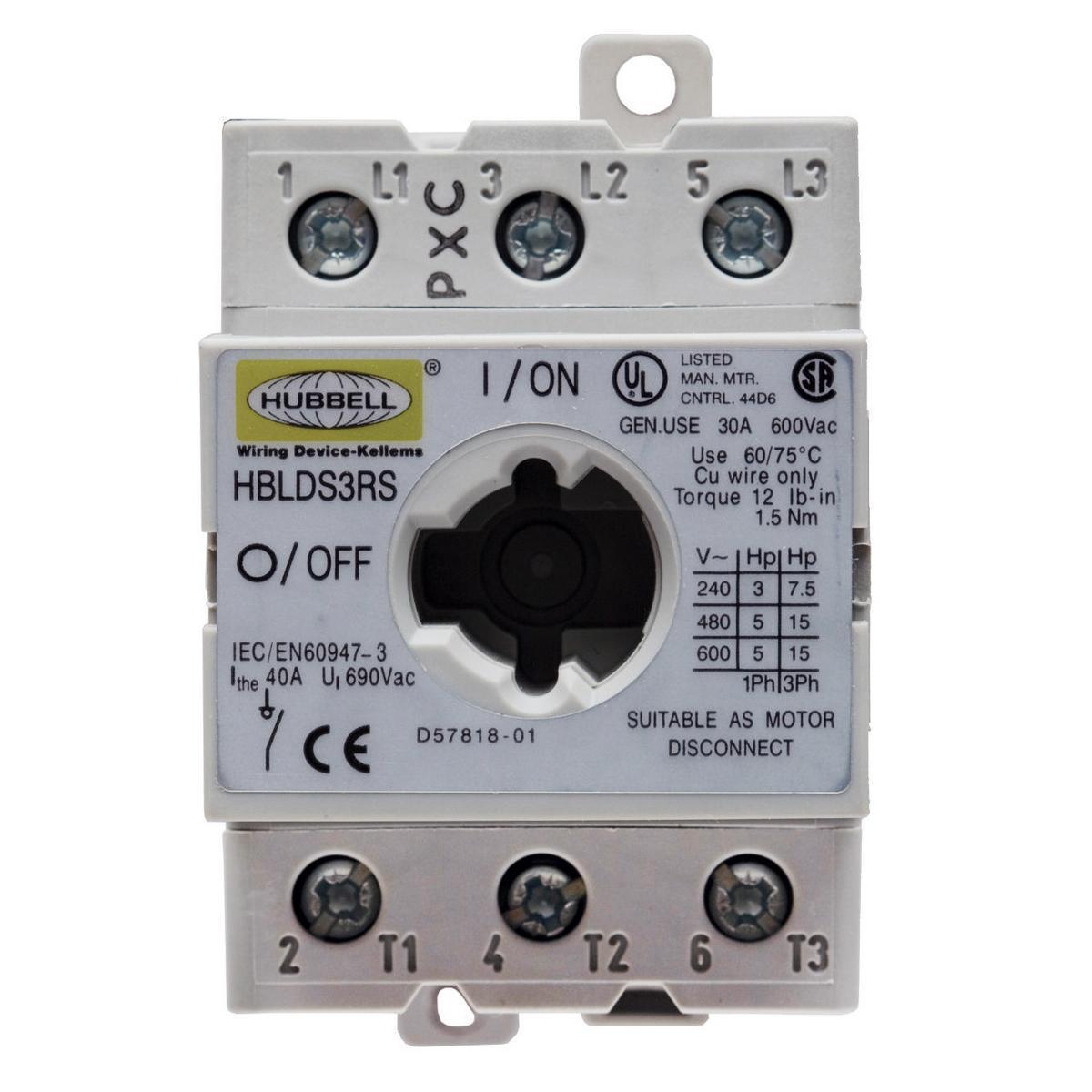

HBLDS3RS HUB 30A CIRCUIT LOCK DISCONNECT INTERIOR

Mouse over image to zoom, click to enlarge

  • HBLDS3RS HUB 30A CIRCUIT LOCK DISCONNECT INTERIOR
  • HBLDS3RS HUB 30A CIRCUIT LOCK DISCONNECT INTERIOR
  • HBLDS3RS HUB 30A CIRCUIT LOCK DISCONNECT INTERIOR
  • HBLDS3RS HUB 30A CIRCUIT LOCK DISCONNECT INTERIOR

Description: Wiring Device-Kellems Circuit-Lock® Rotary Disconnect Switch, 2-Position Replacement Standard, For Use With: 30 A Connectors, Specifications: 3-Pole, 60 Hz, -40 to 75 deg C Without Impact, Screw Terminal, Composite, Black

Manufacturer PN: HBLDS3RS

UPC:  78358595517

Kendall Electric Inc PN: 32278

Invoice Description:

HBLDS3RS HUB 30A CIRCUIT LOCK DISCONNECT INTERIOR


SPEC SHEET

▸ See All in Rotary Switches


How Can We Make This Page Better?

Wiring Device-Kellems Circuit-Lock® HBLDS3RS 2-Position Replacement Standard Rotary Disconnect Switch, For Use With 30 A Connectors, 3-Pole, 60 Hz, -40 to 75 deg C Without Impact, Screw Terminal, Composite, Black

Log In for Pricing and Availability




Description

Wiring Device-Kellems Circuit-Lock® Rotary Disconnect Switch, 2-Position Replacement Standard, For Use With: 30 A Connectors, Specifications: 3-Pole, 60 Hz, -40 to 75 deg C Without Impact, Screw Terminal, Composite, Black

Specifications

 Application For 30A HBLDS3 series switched enclosure, dry location and indoor applications
 Brand Name Hubbell Premise Wiring
 Color Black
 Manufacturer Part Number HBLDS3RS
 Material Composite
 Specifications 3-Pole, 60 Hz, -40 to 75 deg C Without Impact, Screw Terminal
 Standards/Approvals UL 746C|CSA Certified|RoHS Compliant
 Suitable For Use With 30 A Connectors
 Type 2-Position Replacement Standard

Features

▪ Withstands 3000 VAC minimum dielectric voltage
▪ 10000 mechanical, 6000 electrical operations cycles
▪ External full adjustable feet mounting
▪ All exposed materials are UV stabilized
