Hubbell

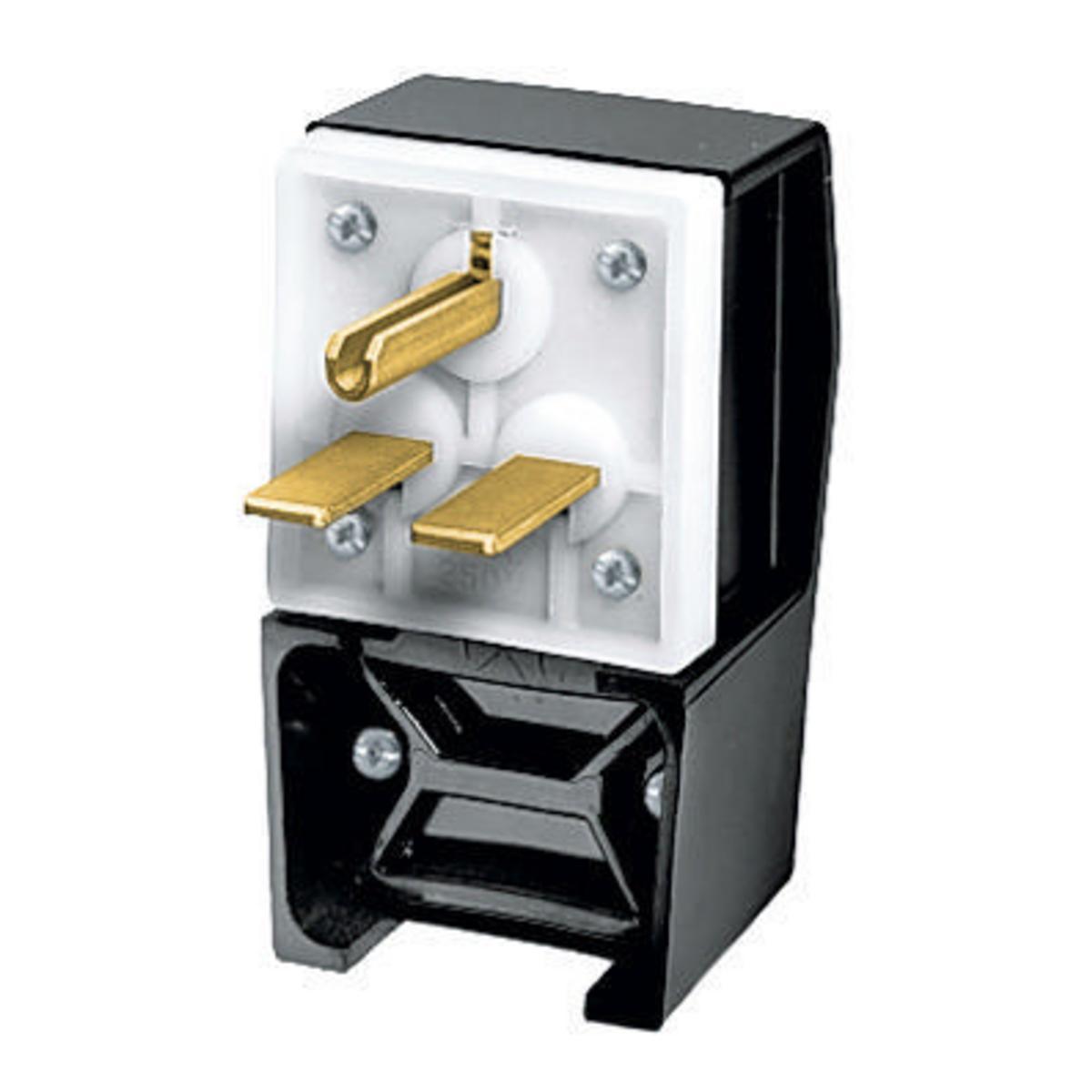

HBL9331 HUB 2P-3W-30A-250V PLUG BLK RUBBER CAP

Mouse over image to zoom, click to enlarge

  • HBL9331 HUB 2P-3W-30A-250V PLUG BLK RUBBER CAP
  • HBL9331 HUB 2P-3W-30A-250V PLUG BLK RUBBER CAP

Description: Wiring Device-Kellems Insulgrip® Straight Blade Plug, 1-Phase Grounding Male Standard Cord Mount, 250 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, 6-30P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.625 to 1.187 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Thermoplastic/Composite, Black, 4.34 x 2.75 x 1.88 in

Manufacturer PN: HBL9331

UPC:  78358501524

Kendall Electric Inc PN: 32807

Invoice Description:

HBL9331 HUB 2P-3W-30A-250V PLUG BLK RUBBER CAP


SPEC SHEET

▸ See All in Straight Blade Plugs


How Can We Make This Page Better?

Wiring Device-Kellems Insulgrip® HBL9331 1-Phase Grounding Male Standard Cord Mount Straight Blade Plug, 250 VAC, 30 A, 2 Poles, 3 Wires, Black

Log In for Pricing and Availability




Description

Wiring Device-Kellems Insulgrip® Straight Blade Plug, 1-Phase Grounding Male Standard Cord Mount, 250 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, 6-30P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.625 to 1.187 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Thermoplastic/Composite, Black, 4.34 x 2.75 x 1.88 in

Specifications

 Amperage Rating 30 A
 Brand Name Hubbell Premise Wiring
 Color Black
 Cord Diameter 0.625 to 1.187 in
 Dimensions 4.34 x 2.75 x 1.88 in
 Enclosure IP20
 Grade Commercial/Industrial
 Horsepower 2 hp
 Manufacturer Part Number HBL9331
 Material Thermoplastic/Composite
 NEMA Rating 6-30P
 Number of Poles 2
 Number of Wires 3
 Standards/Approvals UL 498|NEMA WD1/WD5|RoHS Compliant
 Temperature Rating -40 to 75 deg C
 Terminal Type Screw
 Type 1-Phase Grounding Male Standard Cord Mount
 Video Links
 Voltage Rating 250 VAC

Features

▪ Certified for current interrupting at full rated current
▪ Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
▪ Terminals identified in accordance with UL 498 (brass, white, green)
▪ 12 to 4 AWG solid or stranded copper conductor terminal accommodation
▪ Ratings are a permanent part of the device product identification
▪ Reinforced thermoplastic polyester blade holder
▪ Reinforced thermoplastic polyester retainer
▪ Reinforced thermoplastic polyester cord clamp
▪ 0.06 in brass contact blades
▪ 0.078 in brass ground contact blade
▪ Steel zinc plated terminal screw
▪ Plated steel ground screw material
▪ Brass box terminals
▪ Withstands 2000 VAC dielectric voltage
