Hubbell

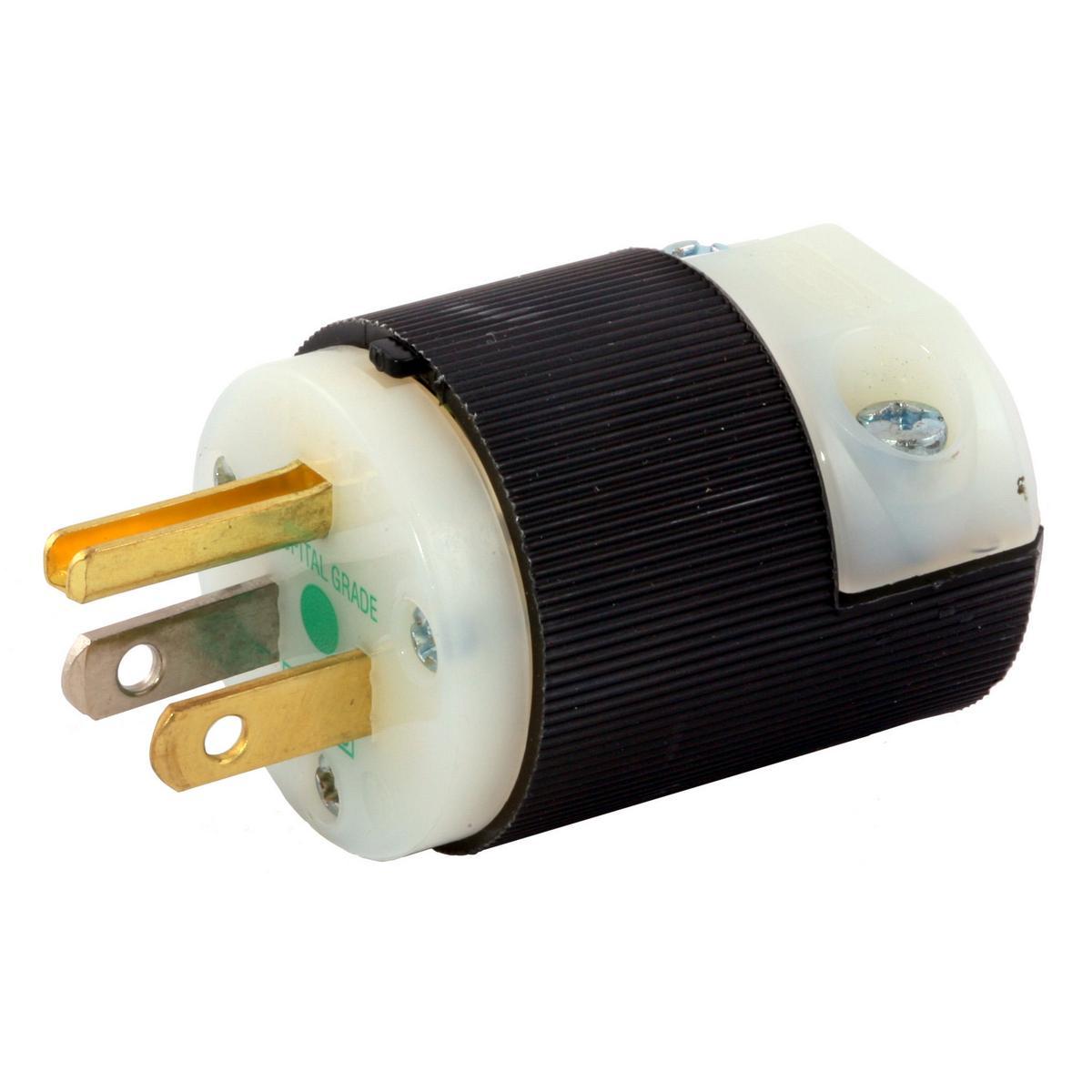

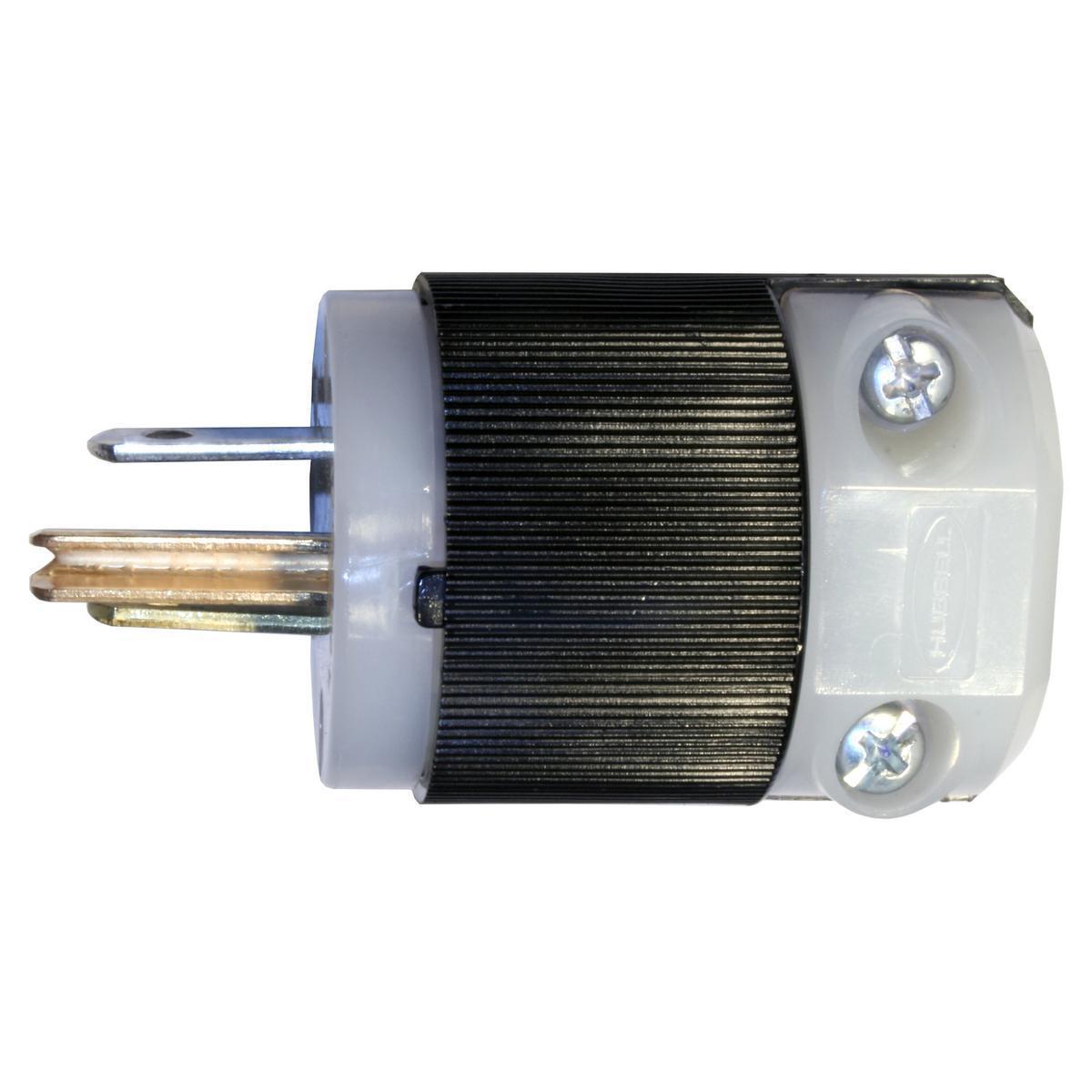

HBL8215C HUB 2P-3W-15A-125V PLUG

Mouse over image to zoom, click to enlarge

  • HBL8215C HUB 2P-3W-15A-125V PLUG
  • HBL8215C HUB 2P-3W-15A-125V PLUG
  • HBL8215C HUB 2P-3W-15A-125V PLUG
  • HBL8215C HUB 2P-3W-15A-125V PLUG

Description: Hubbell Wiring Device-Kellems, HBL8215C, Straight Blade Plug, 1-Phase Grounding Male Standard Cord Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Hospital Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 1.97 x 1.53 x 1.53 in Dimensions

Manufacturer PN: HBL8215C

UPC:  78358517920

Kendall Electric Inc PN: 32784

Invoice Description:

HBL8215C HUB 2P-3W-15A-125V PLUG


SPEC SHEET

▸ See All in Straight Blade Plugs


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL8215C 1-Phase Grounding Male Standard Cord Mount Straight Blade Plug, 125 V AC, 15 A, 2 Poles, 3 Wires, Black/White

Log In for Pricing and Availability




Description

Straight Blade Devices, Male Plug, Insulgrip, Hospital Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Black and White , Single Pack.
Hubbell Wiring Device-Kellems, HBL8215C, Straight Blade Plug, 1-Phase Grounding Male Standard Cord Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Hospital Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 1.97 x 1.53 x 1.53 in Dimensions

Specifications

 Amperage Rating 15 A
 Brand Name Hubbell Premise Wiring
 Color Black/White
 Cord Diameter 0.23 to 0.72 in
 Dimensions 1.97 x 1.53 x 1.53 in
 Enclosure IP20
 Grade Hospital
 Horsepower 1/2 hp
 Manufacturer Part Number HBL8215C
 Material Nylon
 NEMA Rating 5-15P
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS HBL8215C ; 8910263 ; 11828192 ; 783585179209 ; 78358517920 ; 00783585179209 ; 0783585179209
 Standards/Approvals UL 498, File No. E2186 Listed|UL 94-HB Flammability Rating|CSA C22.2, No. 42, 285|NEMA WD1/WD5|RoHS Compliant
 Temperature Rating -40 to 75 deg C
 Terminal Type Screw
 Type 1-Phase Grounding Male Standard Cord Mount
 Video Links
 Voltage Rating 125 V AC

Features

▪ Beveled housing prevents snagging
▪ Powerful, offsetting cord grips clamp on individual conductors

Resources

 Catalog Page
 Instruction/Installation Manual
 Line Drawing
 MSDS URL None Required
 Product Data Sheet
 Tech Drawing URL
