Hubbell

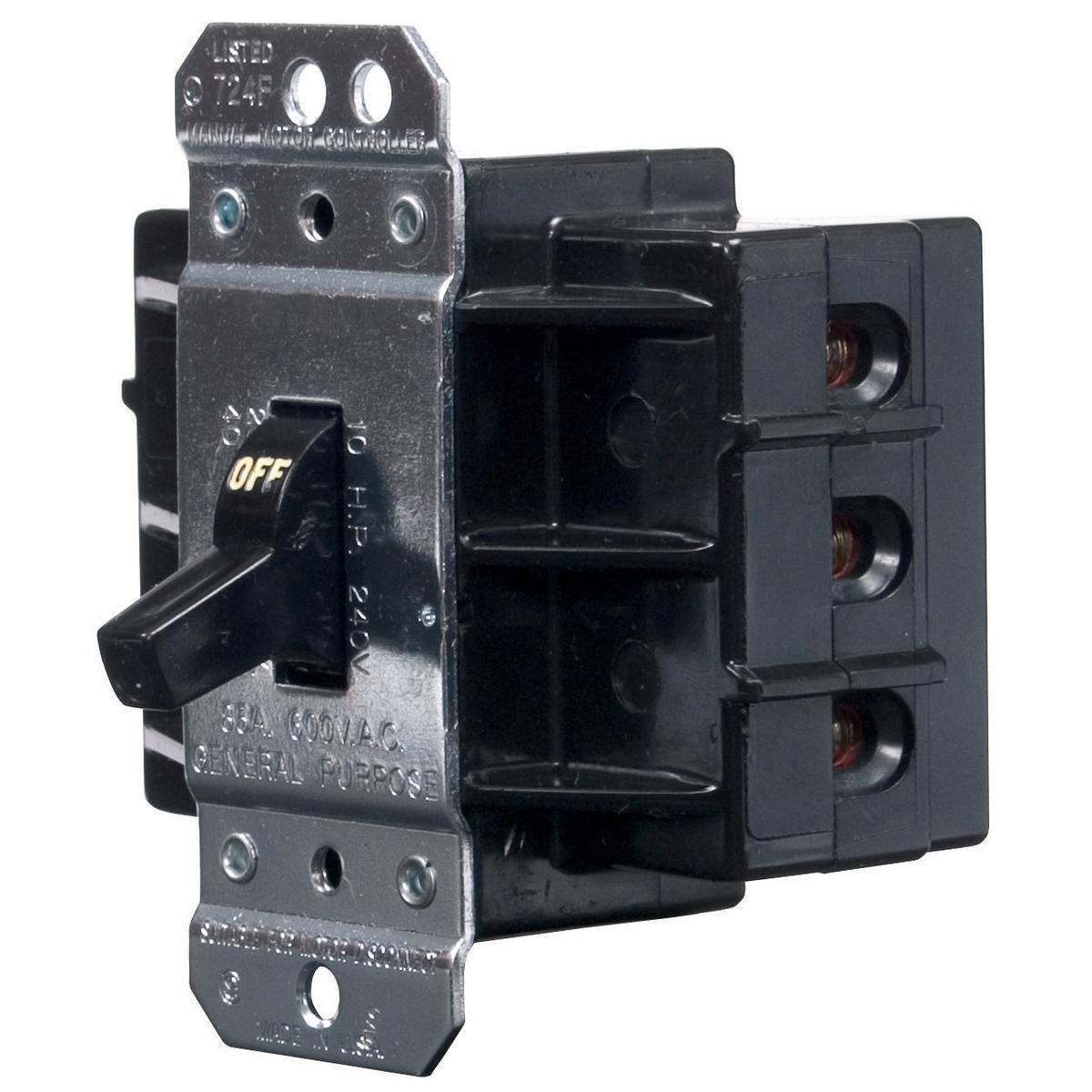

HBL7883D HBL 85A 3PST AC MOTOR CONTROL

Mouse over image to zoom, click to enlarge

  • HBL7883D HBL 85A 3PST AC MOTOR CONTROL
  • HBL7883D HBL 85A 3PST AC MOTOR CONTROL

Description: Hubbell Wiring Device-Kellems Circuit-Lock®, HBL7883D, AC Motor Disconnect Switch, 3-Phase Standard, Series: HBL, 600 V AC, 85 A, 51000 W Power, 3 Pole, Toggle Actuator, Pressure Screw Terminal Connection, Open Enclosure, Threaded Mounting, 10000 Cycles Operating Cycles, Stainless Steel, Environmental Conditions: -40 deg C, 3.78 in L x 3.56 in W x 2.83 in H Dimensions

Manufacturer PN: HBL7883D

UPC:  78358520293

Kendall Electric Inc PN: 2738363

Invoice Description:

HBL7883D HBL 85A 3PST AC MOTOR CONTROL


SPEC SHEET

▸ See All in AC Motor Starting Switches


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Circuit-Lock® HBL7883D HBL 3-Phase Standard AC Motor Disconnect Switch, 600 V AC, 85 A, 51000 W Power Rating

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell Wiring Device-Kellems Circuit-Lock®, HBL7883D, AC Motor Disconnect Switch, 3-Phase Standard, Series: HBL, 600 V AC, 85 A, 51000 W Power, 3 Pole, Toggle Actuator, Pressure Screw Terminal Connection, Open Enclosure, Threaded Mounting, 10000 Cycles Operating Cycles, Stainless Steel, Environmental Conditions: -40 deg C, 3.78 in L x 3.56 in W x 2.83 in H Dimensions

Specifications

 Actuator Toggle
 Amperage Rating 85 A
 Application Industry, Motor Starting without Overload Protection Applications and Indoor Dry Environment
 Brand Name Hubbell Premise Wiring
 Connection Pressure Screw Terminal
 Dimensions 3.78 in L x 3.56 in W x 2.83 in H
 Enclosure Open
 Environmental Conditions -40 deg C
 Manufacturer Part Number HBL7883D
 Material Stainless Steel
 Mounting Threaded
 Number of Poles 3
 Operating Cycles 10000 Cycles
 PART NUMBER KEYWORDS HBL7883D ; 9237842 ; 11828409 ; 783585202938 ; 78358520293 ; 00783585202938 ; 0783585202938
 Power Rating 51000 W
 Series HBL
 Standards/Approvals CSA Certified|RoHS Compliant|CSA C22.2 File No.14 and CSA File No. LR46186|UL 508|UL File No. E70402
 Type 3-Phase Standard
 Video Links
 Voltage Rating 600 V AC

Features

▪ Recessed wiring wells for finger safe environments
▪ Thermoset body withstands high temperatures
▪ Front and back wiring with steel screws and copper terminals
