Hubbell

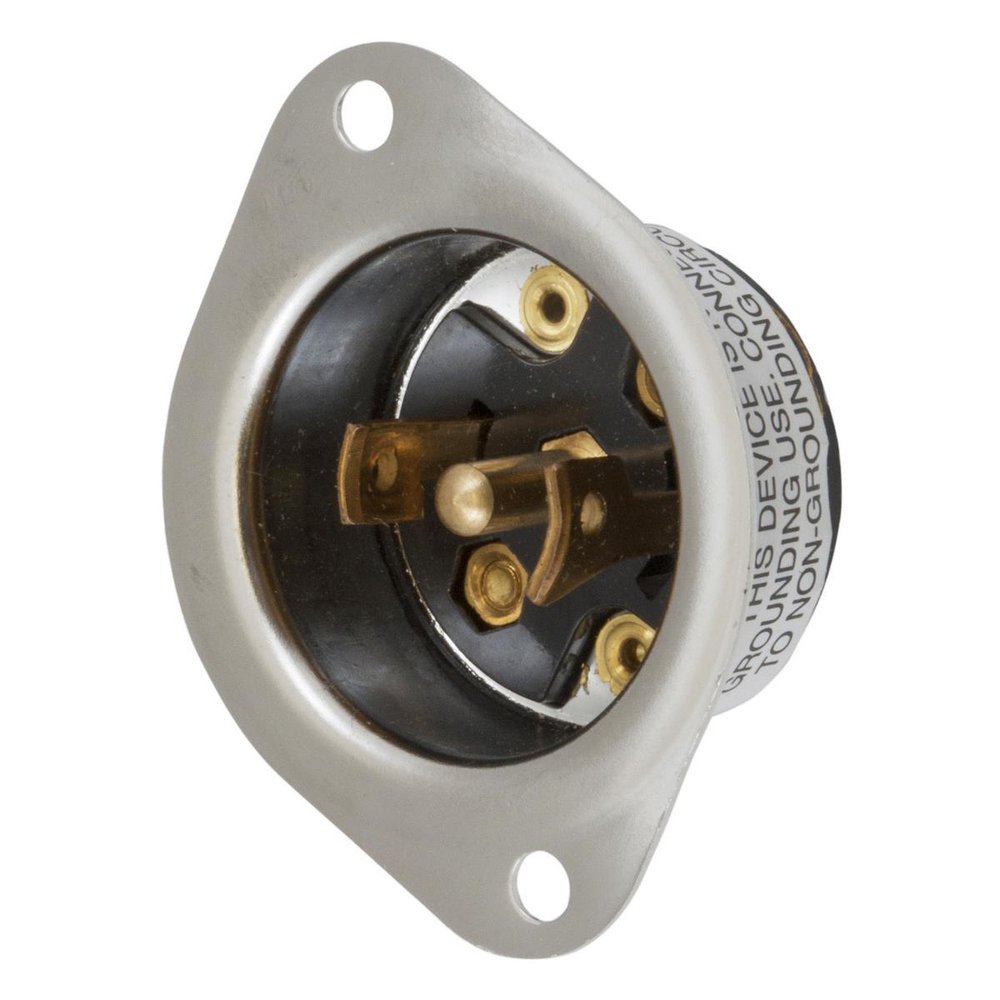

HBL7486 HUB 3W INLET

Mouse over image to zoom, click to enlarge

Description: Hubbell Wiring Device-Kellems, HBL7486, Locking Flanged Inlet, 1-Phase Heavy Duty Midget Non-Grounding Screw Mount, Series: HBL®, 125/250 V AC, 15 A, 3 Pole, 3 Wires, ML-3P NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Stainless Steel, Black/Stainless, 2.06 x 1.63 x 0.98 in Dimensions

Manufacturer PN: HBL7486

UPC:  78358523744

Kendall Electric Inc PN: 32741

Invoice Description:

HBL7486 HUB 3W INLET


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL7486 HBL® 1-Phase Heavy Duty Midget Non-Grounding Screw Mount Locking Flanged Inlet, 125/250 V AC, 15 A, 3 Poles, 3 Wires, Black/Stainless

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Locking Devices, Midget Twist-Lock®, Industrial, Flanged Inlet, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3P, Screw Terminal, Stainless Steel Flange.
Hubbell Wiring Device-Kellems, HBL7486, Locking Flanged Inlet, 1-Phase Heavy Duty Midget Non-Grounding Screw Mount, Series: HBL®, 125/250 V AC, 15 A, 3 Pole, 3 Wires, ML-3P NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Stainless Steel, Black/Stainless, 2.06 x 1.63 x 0.98 in Dimensions

Specifications

 Amperage Rating 15 A
 Application Used on equipment mounting or equipment where detachable cord is desirable
 Brand Name Hubbell Premise Wiring
 Color Black/Stainless
 Dimensions 2.06 x 1.63 x 0.98 in
 Enclosure IP20
 Grade Industrial
 Manufacturer Part Number HBL7486
 Material Stainless Steel
 NEMA Rating ML-3P
 Number of Poles 3
 Number of Wires 3
 PART NUMBER KEYWORDS HBL7486 ; 8919113 ; 11829521 ; 783585237442 ; 78358523744 ; 00783585237442 ; 0783585237442
 Series HBL®
 Standards/Approvals UL 498|CSA C22.2 No. 42|NEMA WD1/WD5
 Temperature Rating -40 to 75 deg C
 Terminal Type Screw
 Type 1-Phase Heavy Duty Midget Non-Grounding Screw Mount
 Video Links
 Voltage Rating 125/250 V AC

Features

▪ High heat resistant phenolic base
