Hubbell

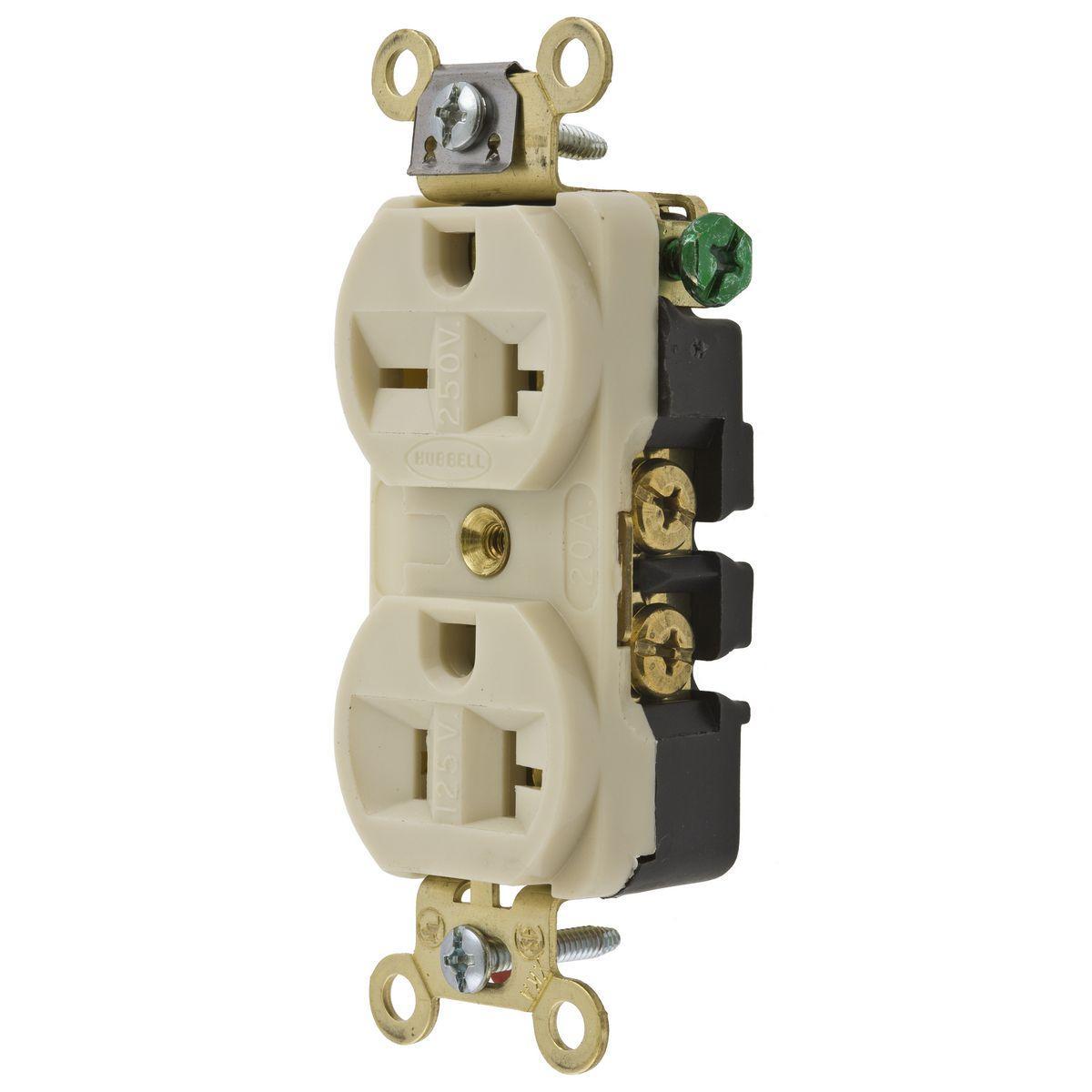

HBL5492I HUBBELL 20A COMBO DPLX RCPT NEMA 5&6-20R 78358543546

Mouse over image to zoom, click to enlarge

  • HBL5492I HUBBELL 20A COMBO DPLX RCPT NEMA 5&6-20R 78358543546
  • HBL5492I HUBBELL 20A COMBO DPLX RCPT NEMA 5&6-20R 78358543546

Description: Hubbell Wiring Device-Kellems, HBL5492I, Straight Blade Duplex Receptacle, Grounding Heavy Duty, 125/250 V AC, 20 A, 2 hp, 5000 W Wattage, 1 ph, 2 Pole, 3 Wires, 14 to 12 AWG Wire, NEMA 6-20R/5-20R NEMA Rating, 1.5 in W x 0.88 in D Size, Screw Connection, Threaded Mounting, Specification Grade, Composite/Thermoplastic, Ivory, Environmental Conditions: -40 to 75deg C Operating Temperature

Manufacturer PN: HBL5492I

UPC:  78358543546

Kendall Electric Inc PN: 2260810

Invoice Description:

HBL5492I HUBBELL 20A COMBO DPLX RCPT NEMA 5&6-20R 78358543546


SPEC SHEET

▸ See All in Receptacles & Receptacles


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL5492I Grounding Heavy Duty Straight Blade Duplex Receptacle, 125/250 V AC, 20 A, 2 Poles, 3 Wires, Ivory

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Straight Blade Devices, Receptacles, Combo Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 250V, 6- 20R, Ivory, Single Pack.
Hubbell Wiring Device-Kellems, HBL5492I, Straight Blade Duplex Receptacle, Grounding Heavy Duty, 125/250 V AC, 20 A, 2 hp, 5000 W Wattage, 1 ph, 2 Pole, 3 Wires, 14 to 12 AWG Wire, NEMA 6-20R/5-20R NEMA Rating, 1.5 in W x 0.88 in D Size, Screw Connection, Threaded Mounting, Specification Grade, Composite/Thermoplastic, Ivory, Environmental Conditions: -40 to 75deg C Operating Temperature

Specifications

 Amperage Rating 20 A
 Application Indoor Dry Environment
 Brand Name Hubbell Premise Wiring
 Color Ivory
 Connection Screw
 Environmental Conditions -40 to 75deg C Operating Temperature
 Grade Specification
 Horsepower 2 hp
 Manufacturer Part Number HBL5492I
 Material Composite/Thermoplastic
 Mounting Threaded
 NEMA Rating NEMA 6-20R/5-20R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS HBL5492I ; 11830781 ; 8943821 ; 783585435466 ; 78358543546 ; 00783585435466 ; 0783585435466
 Phase 1
 Size 1.5 in W x 0.88 in D
 Standards/Approvals RoHS Compliant|UL 498 File No. E2186|NEMA WD1/WD5|CSA C22.2 No. 42 File No. 285|UL 94 V-2 Flammability Rating
 Type Grounding Heavy Duty
 Voltage Rating 125/250 V AC
 Wattage 5000 W

Features

▪ Receptacles
▪ Industrial Grade

Resources

 Catalog
 Catalog Page
 Installation Instructions
 Instruction/Installation Manual
 MSDS URL None Required
 Product Data Sheet
