Hubbell

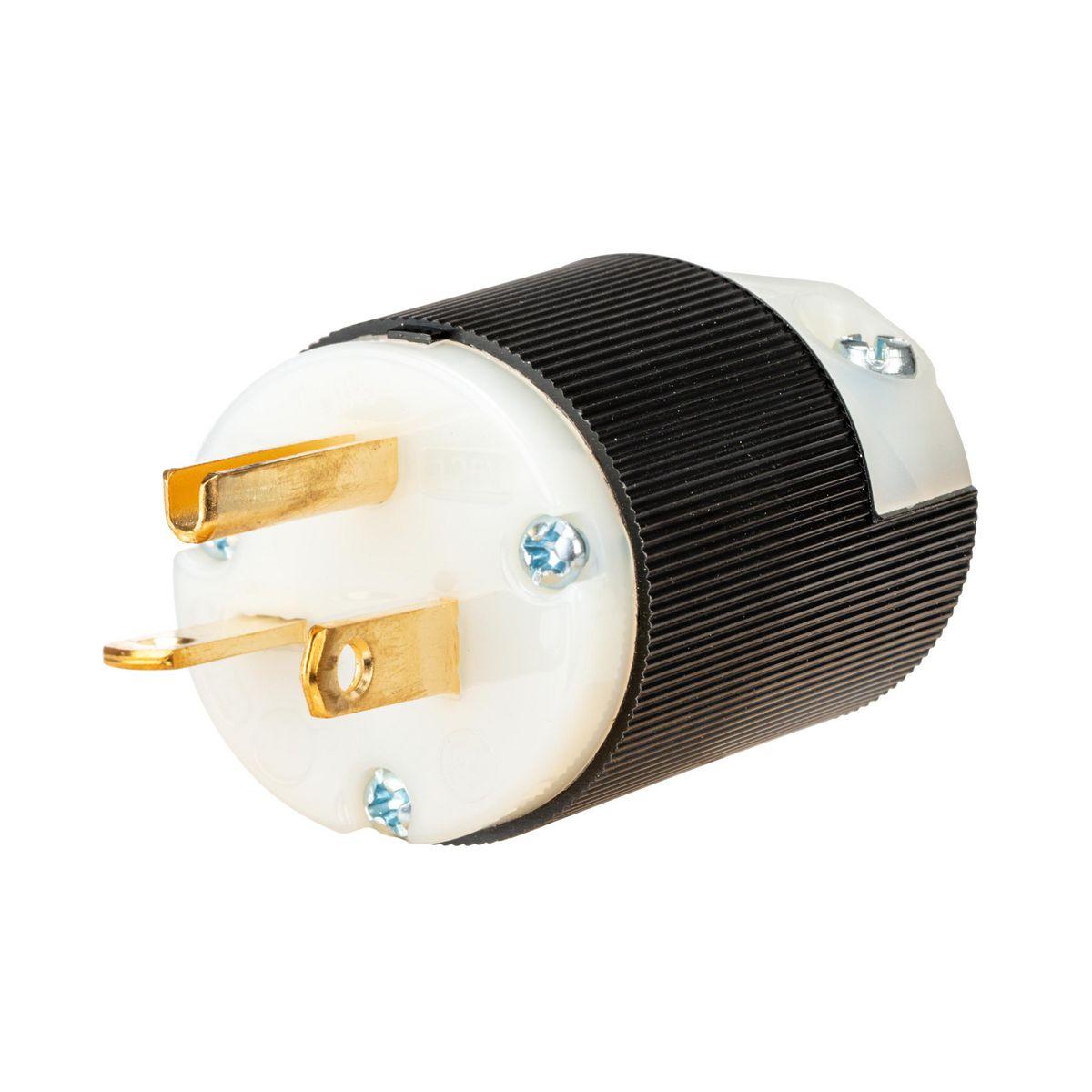

HBL5366CST HUBBELL 20A 125V PLUG

Mouse over image to zoom, click to enlarge

  • HBL5366CST HUBBELL 20A 125V PLUG
  • HBL5366CST HUBBELL 20A 125V PLUG
  • HBL5366CST HUBBELL 20A 125V PLUG

Description: Wiring Device-Kellems, HBL5366CST, Straight Blade Plug, 1-Phase Grounding Standard, 125 V, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20P NEMA Rating, Commercial/Industrial Grade, 0.230 to 0.720 in Diameter Cord, -40 to 75 deg C, Nylon, Black/White, 3.28 in x 1.41 in x 1.09 in Dimensions

Manufacturer PN: HBL5366CST

UPC:  78358596481

Kendall Electric Inc PN: 4827242

Invoice Description:

HBL5366CST HUBBELL 20A 125V PLUG


SPEC SHEET

▸ See All in Straight Blade Plugs


How Can We Make This Page Better?

Wiring Device-Kellems HBL5366CST 1-Phase Grounding Standard Straight Blade Plug, 125 V, 20 A, 2 Poles, 3 Wires, Black/White

Log In for Pricing and Availability




Description

Wiring Device-Kellems, HBL5366CST, Straight Blade Plug, 1-Phase Grounding Standard, 125 V, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20P NEMA Rating, Commercial/Industrial Grade, 0.230 to 0.720 in Diameter Cord, -40 to 75 deg C, Nylon, Black/White, 3.28 in x 1.41 in x 1.09 in Dimensions

Specifications

 Amperage Rating 20 A
 Application For Extra Heavy Duty Industrial/Commercial Grade
 Brand Name Hubbell Premise Wiring
 Color Black/White
 Cord Diameter 0.230 to 0.720 in
 Dimensions 3.28 in x 1.41 in x 1.09 in
 Grade Commercial/Industrial
 Horsepower 1 hp
 Manufacturer Part Number HBL5366CST
 Material Nylon
 NEMA Rating NEMA 5-20P
 Number of Poles 2
 Number of Wires 3
 Standards/Approvals CSA Certified to C22.2 No. 42 File 280|Fed. Spec. W-C596G|NEMA WD-6 Compliant|UL Listed to UL498 File E1706|NEMA 5-20P|RoHS Compliant
 Temperature Rating -40 to 75 deg C
 Type 1-Phase Grounding Standard
 Voltage Rating 125 V

Features

▪ Spring termination for a faster and more secure terminal connection
▪ Ribbed housing is impact and chemical resistant
▪ Superior cord grip design protects terminations from excess strain
▪ Accepts 14 - 10AWG, solid or stranded
